Vacuum and Vapor Hose Diagrams
>>
With Manual A/C
With Manual A/C

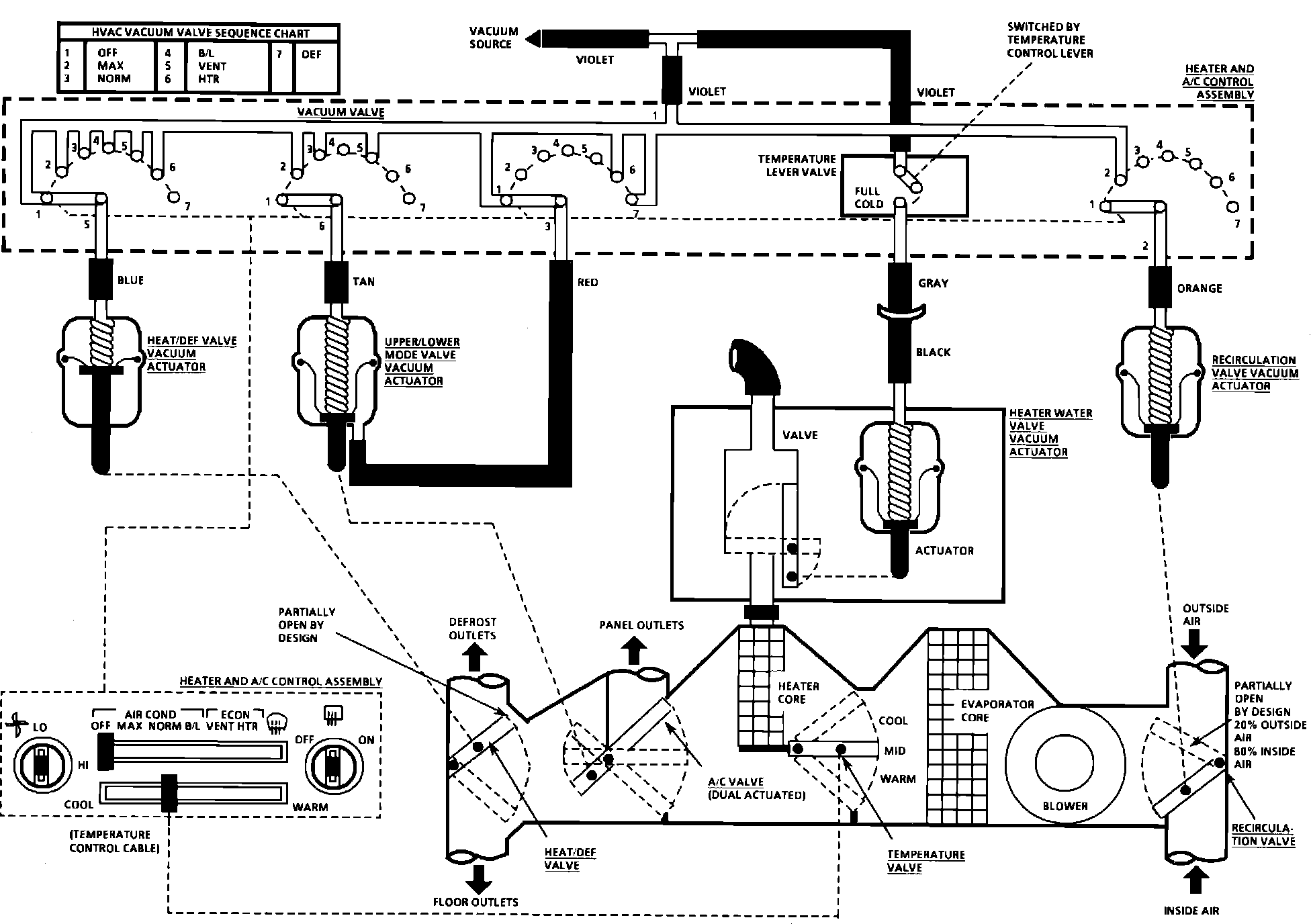

Air Conditioning: Air Delivery (Manual A/C):
