Part 1 of 5 (High Mounted Stop, Hazard, Stop & Turn)
Part 1 of 5 (High Mounted Stop, Hazard, Stop & Turn)

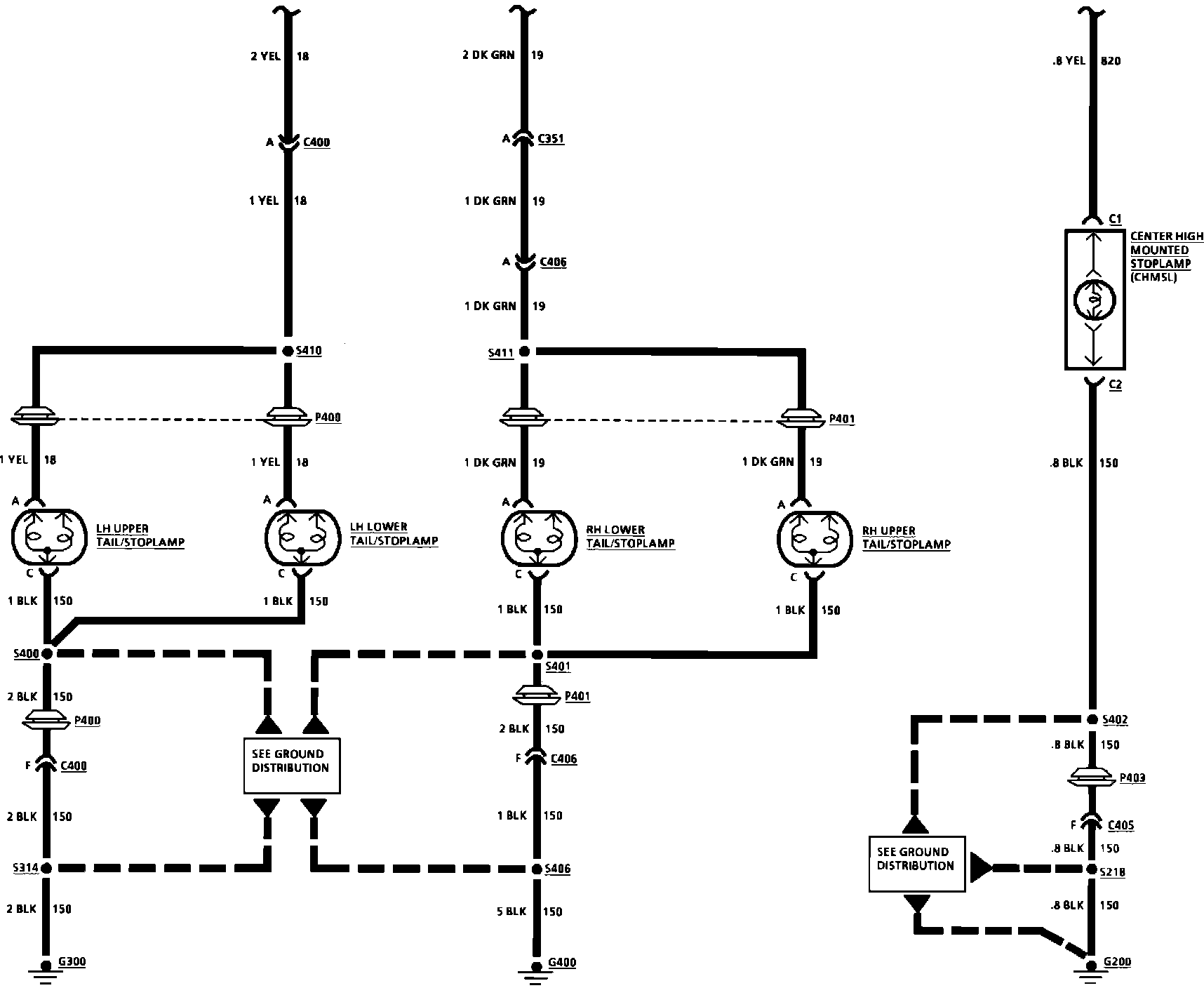

Exterior Lamps (Center High Mounted Stop, Hazard, Stop & Turn) (Buick):
Exterior Lamps (Center High Mounted Stop, Hazard, Stop & Turn) (Exc Buick):
