Part 2 of 5 (High Mounted Stop, Hazard, Stop & Turn)

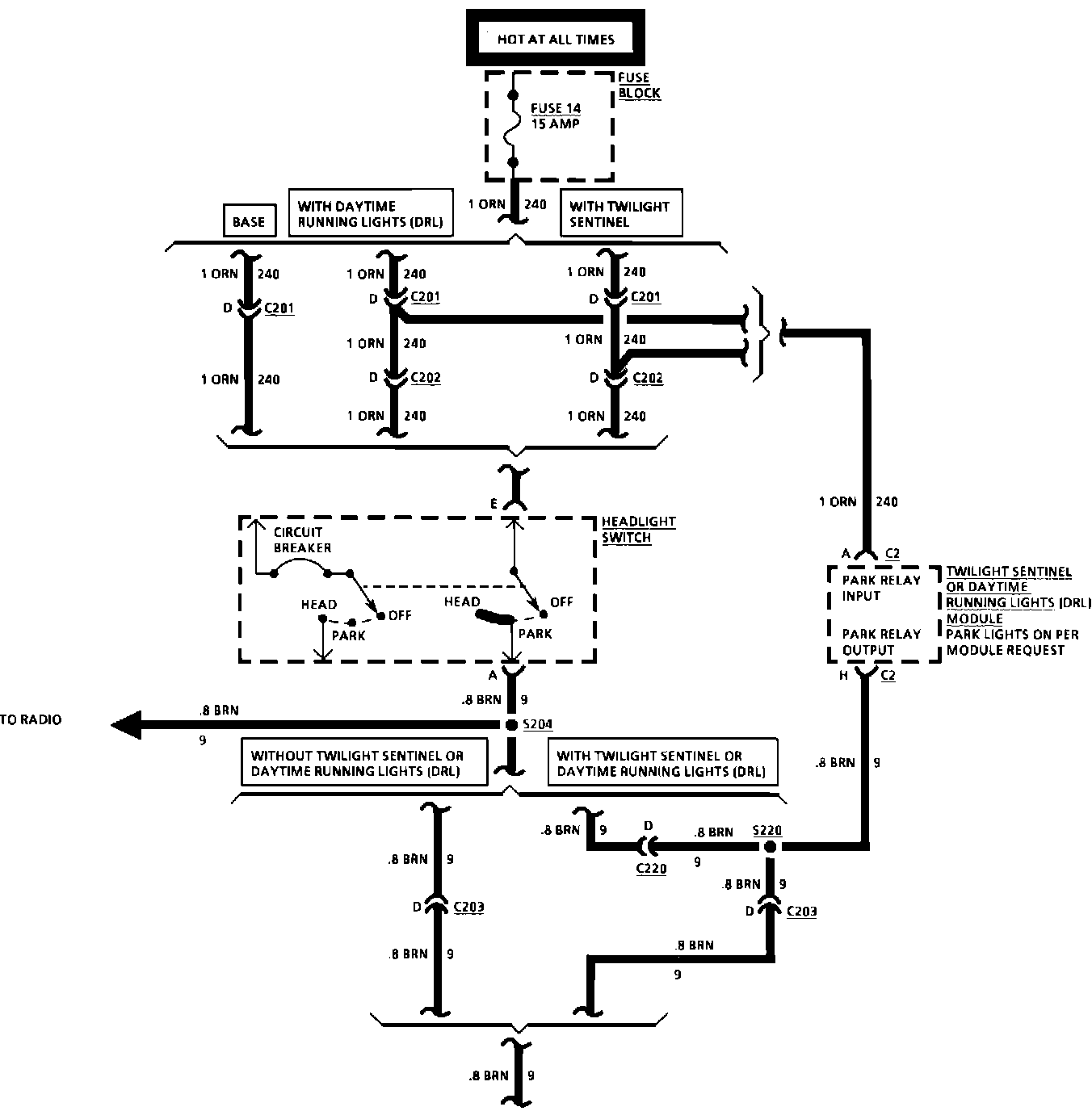

Exterior Lamps (Center High Mounted Stop, Hazard, Stop & Turn) (Exc Buick):



Exterior Lamps (Front Marker, Hazard, Stop & Turn) (Buick):



Exterior Lamps (Front Marker, Hazard, Stop & Turn) (Exc Buick):



Exterior Lamps (Hazard, Rear Side Marker, Stop & Turn):



Exterior Lamps (Center High Mounted Stop, Hazard, Stop & Turn) (Buick):
