Operation CHARM: Car repair manuals for everyone.

Home >> Buick >> 1991 >> Roadmaster V8-305 5.0L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> SIR Diagnostic System Check

SIR Diagnostic System Check

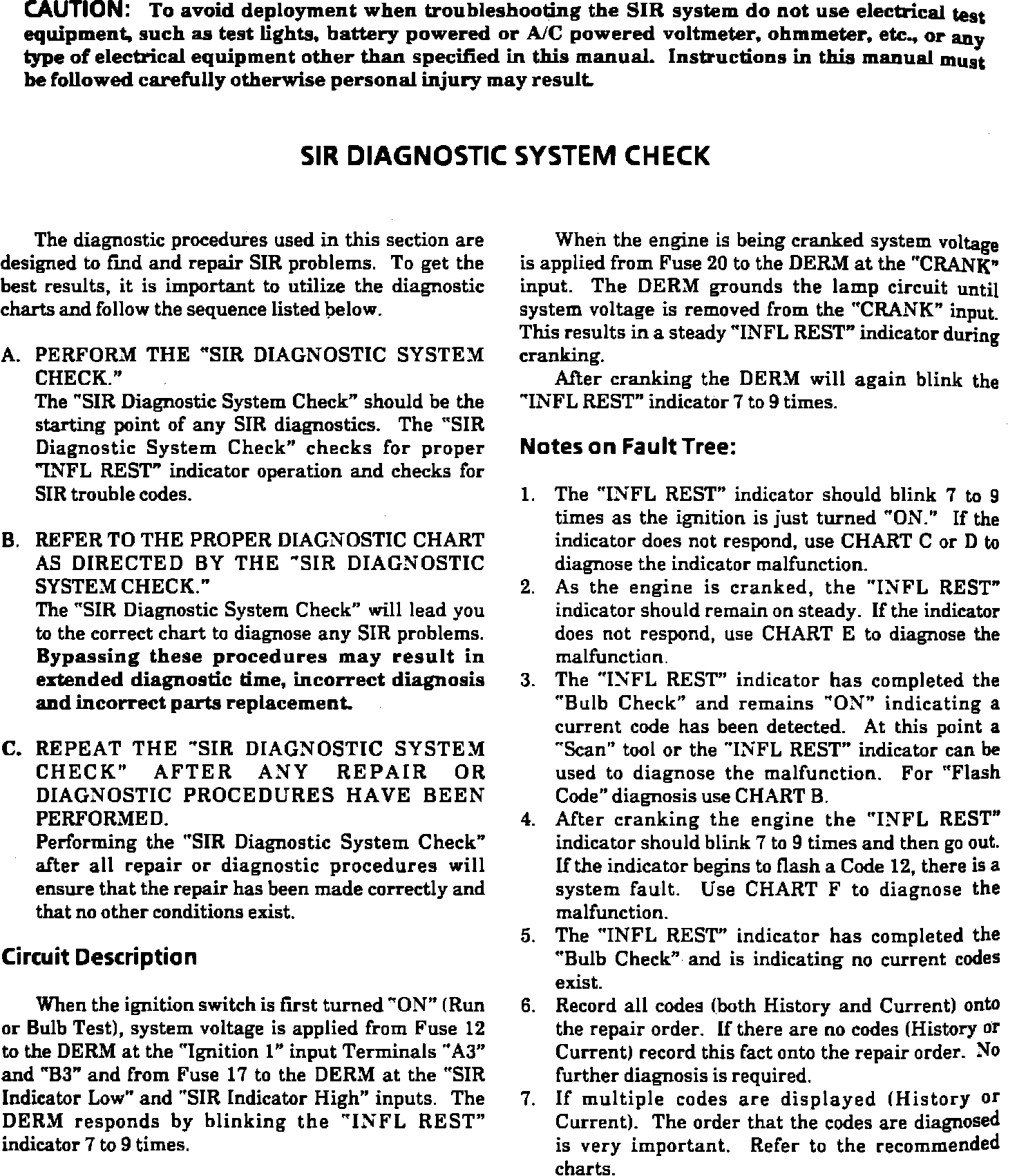

Fig. 21 SIR Diagnostic System Check:

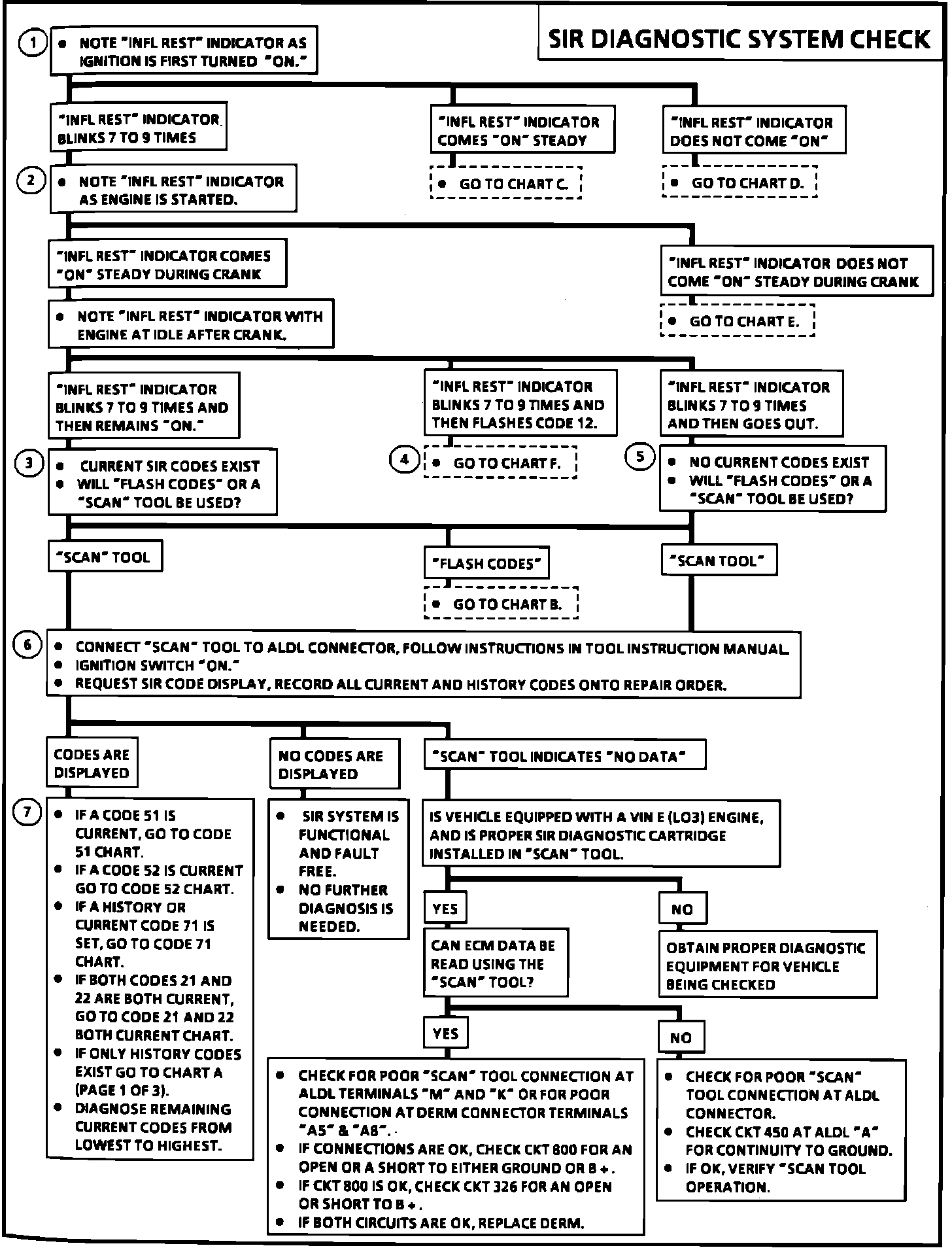

Fig. 21 SIR Diagnostic System Check:
