DTC 43

Wiring Diagram:

CIRCUIT DESCRIPTION

During normal, non-deployment operation of the SIR system the DERM monitors the voltage supplied through the arming sensor to the high side of the driver deployment loop at the "Driver Source Sense" terminal "A5." This measured voltage will have a value approximately equal to "Driver 36 VLR." When the voltage measured at "Driver Side Low" terminal "B8" is in its normal operating range, indicating driver deployment loop integrity has been maintained, while simultaneously the voltage measured at "Driver Source Sense" terminal "A5" is a specified amount below "Driver 36 VLR" for 500 milliseconds, DTC 43 is set.

DTC WILL SET WHEN

The voltage measured at "Driver Side Low" terminal "B8" is within a specified percentage of "Driver 36 VLR" while simultaneously the voltage measured at "Driver Source Sense" terminal "A5" is a specified amount below "Driver 36 VLR" for 500 milliseconds during "Continuous Monitoring."

ACTION TAKEN

DERM turns "ON" the "AIR BAG" warning lamp and sets a diagnostic trouble code.

DTC WILL CLEAR WHEN

The voltage measured at "Driver Side Low" terminal "B8" is within a specified percentage of "Driver 36 VLR" while simultaneously the voltage measured at "Driver Source Sense" terminal "A5" is within a specified amount of "Driver 36 VLR" for 500 milliseconds during "Continuous Monitoring.

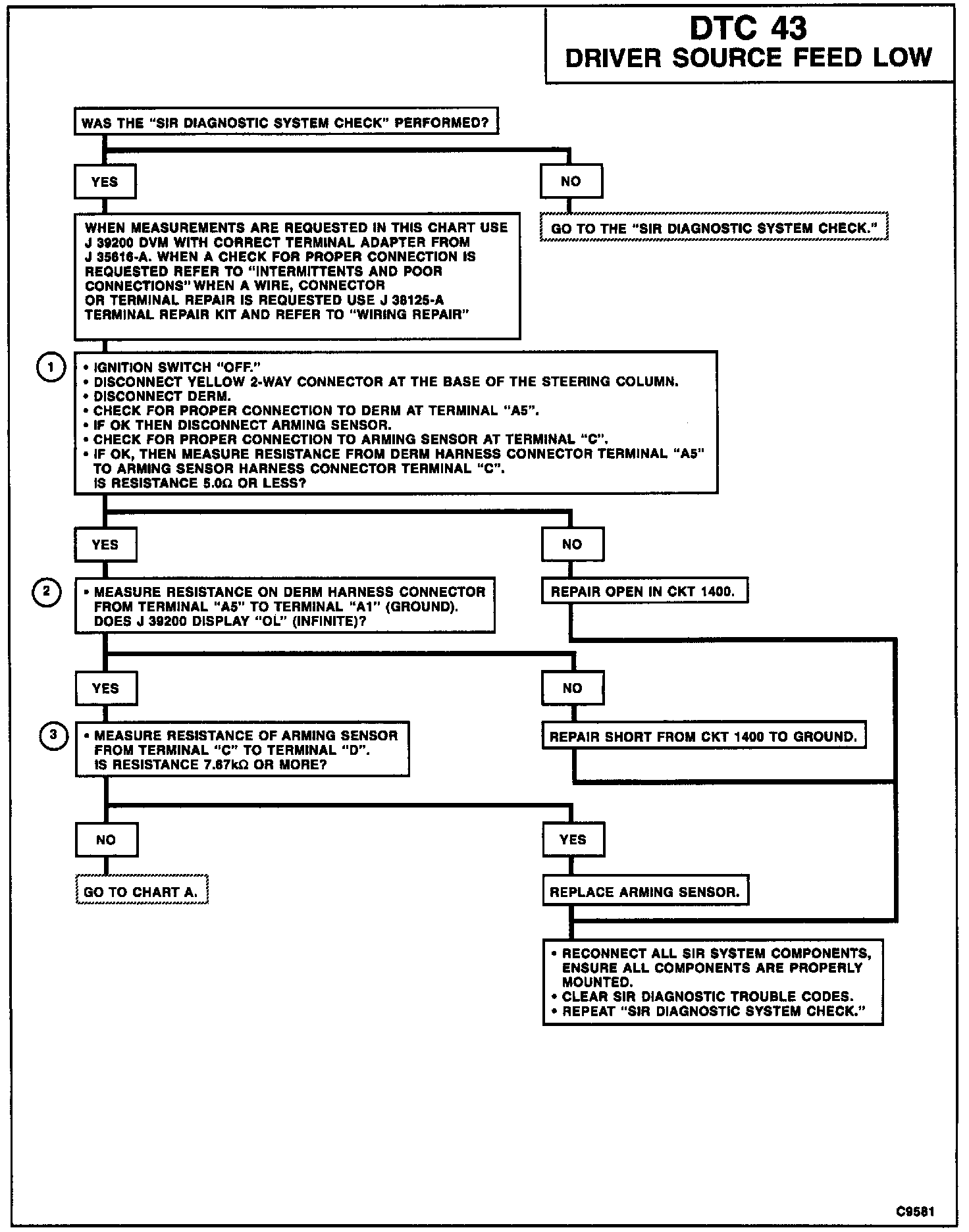

DTC CHART TEST DESCRIPTION

Number(s) below refer to circled number(s) on the diagnostic chart.

1. This test checks for an open in "Driver Source Sense" circuit.

2. This test checks for a short from the "Driver Source Sense" circuit to ground.

3. The test determines whether the malfunction is due LO increased resistance across the "Driver Source Sense" resistor in the arming sensor.

DIAGNOSTIC AIDS

An intermittent condition is likely to be caused by a poor connection to the DERM at terminal "A5," a poor connection to the arming sensor at terminal "C," an open or short to ground in CKT 1400 or increased resistance of the arming sensor.
