Engine Harness to Engine Jumper Harness

C108: Engine Harness To Engine Jumper Harness:

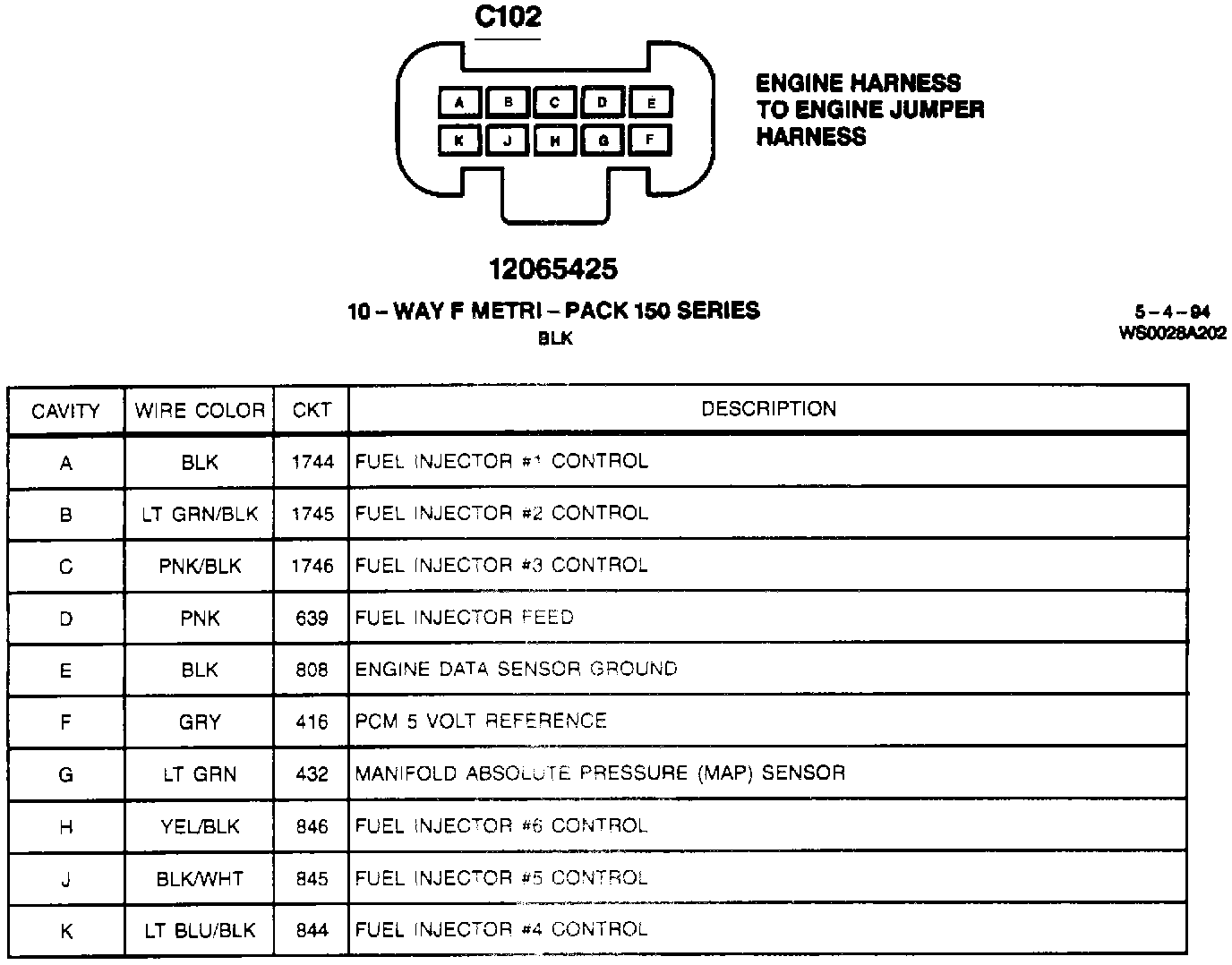

C102: Engine Harness To Engine Jumper Harness:
