Air Delivery and Temperature Controls (CJ2)

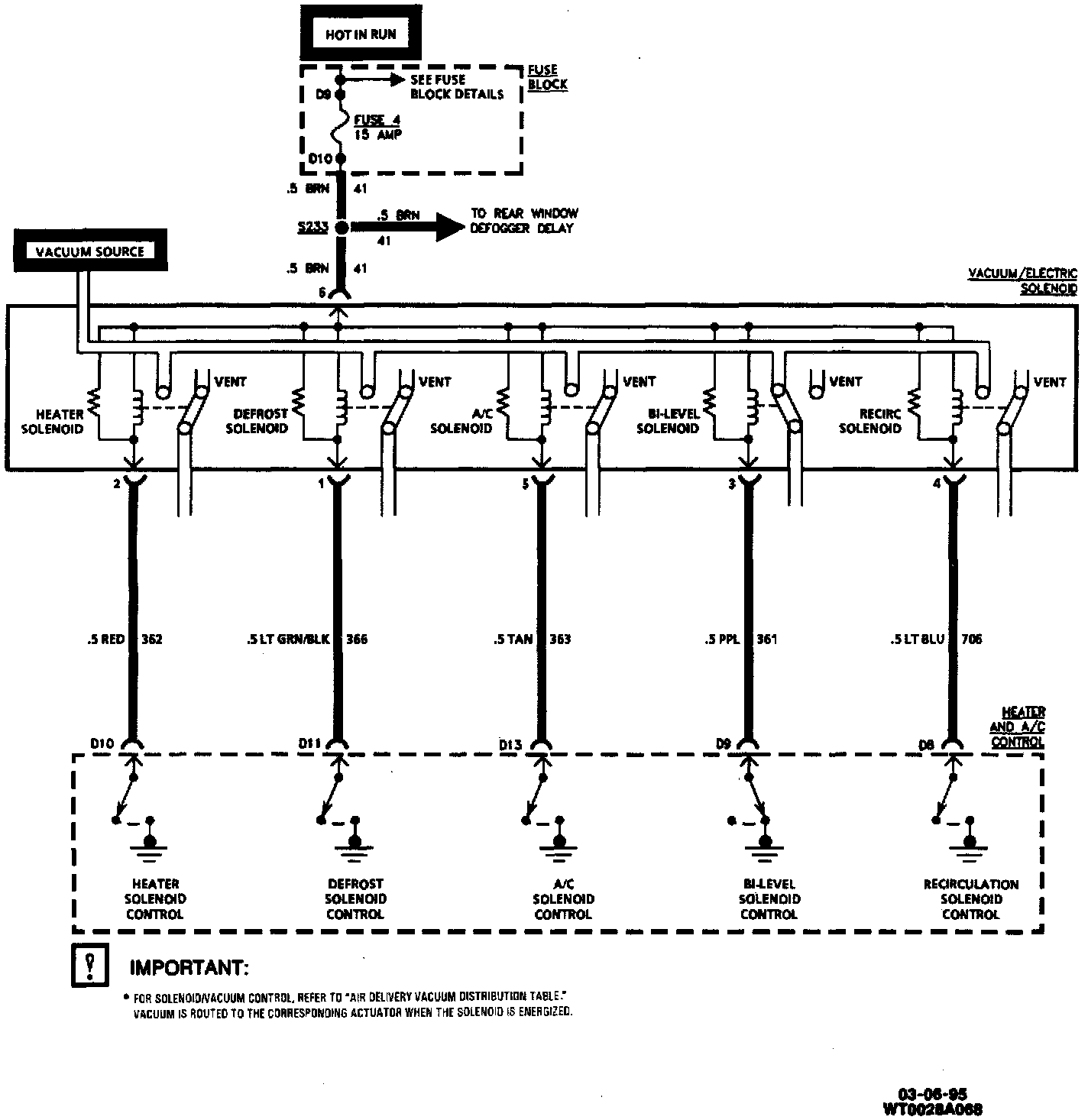

HVAC Air Delivery And Temperature Control (RPO CJ2):

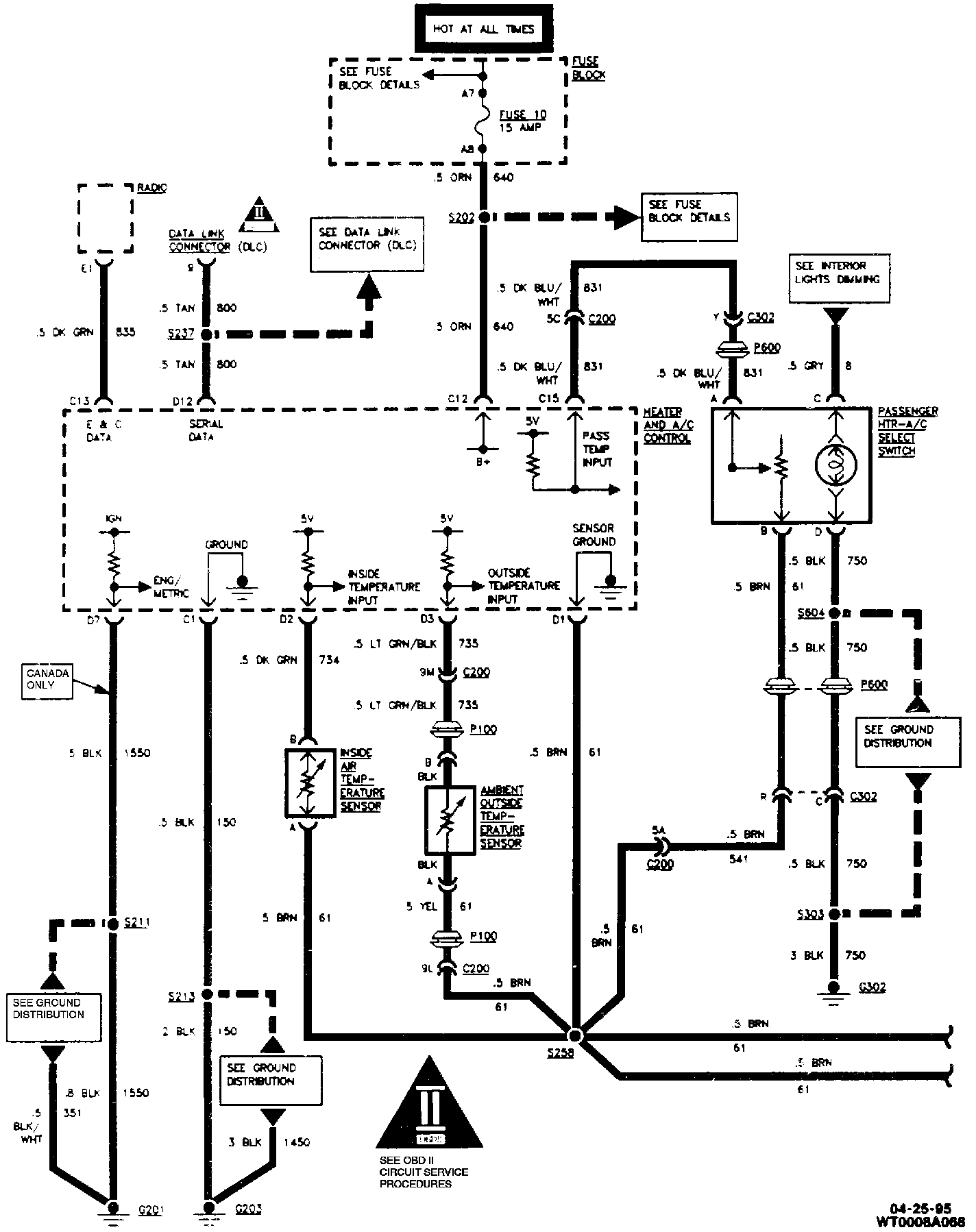

HVAC Air Delivery And Temperature Control (RPO CJ2):

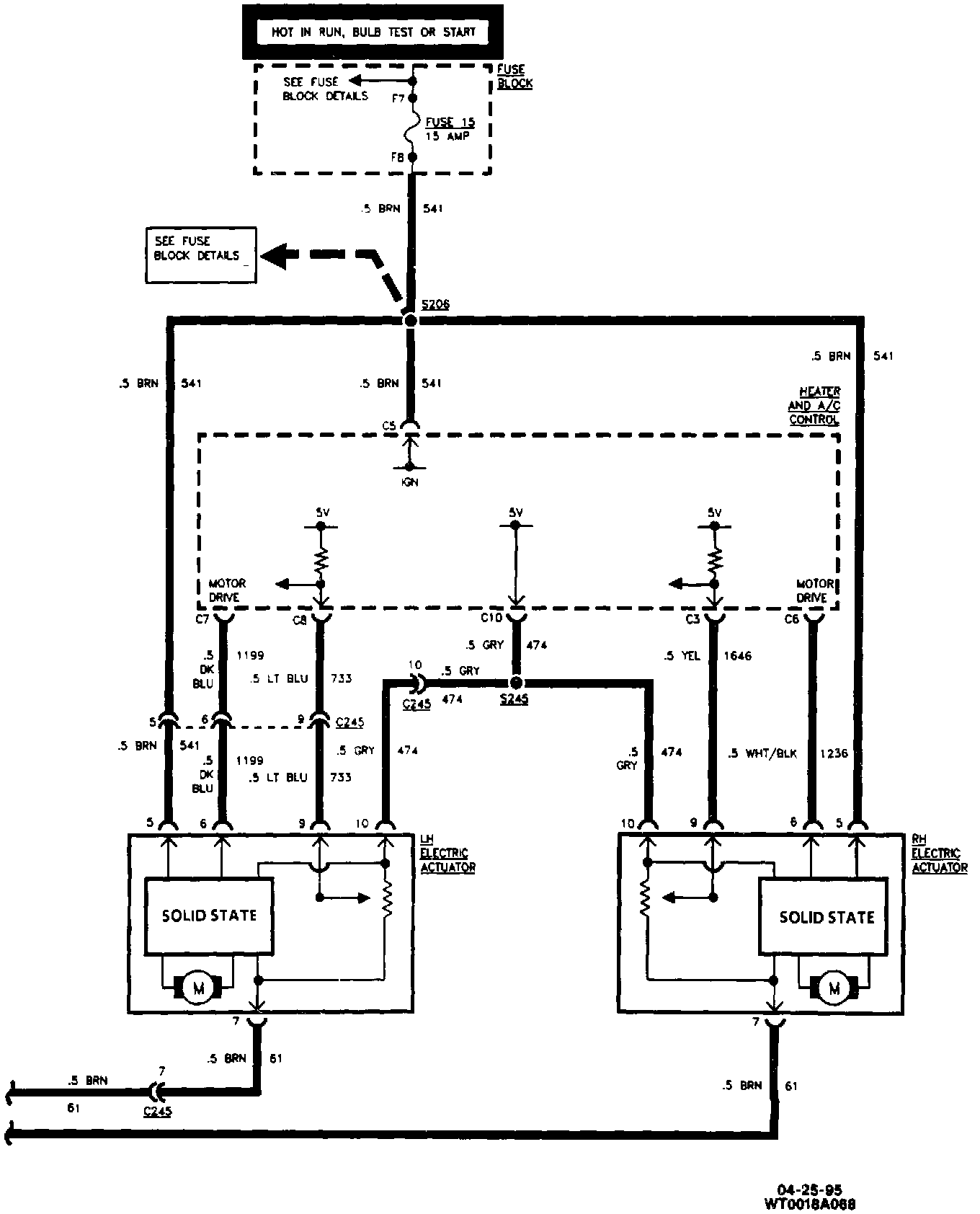

HVAC Air Delivery And Temperature Control (RPO CJ2):




Air Delivery & Temperature Control - Dual Zone (RPO CJ2):
