Home
>>
Buick
>>
1996
>>
Regal V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Air Delivery and Temperature Controls
Air Delivery and Temperature Controls

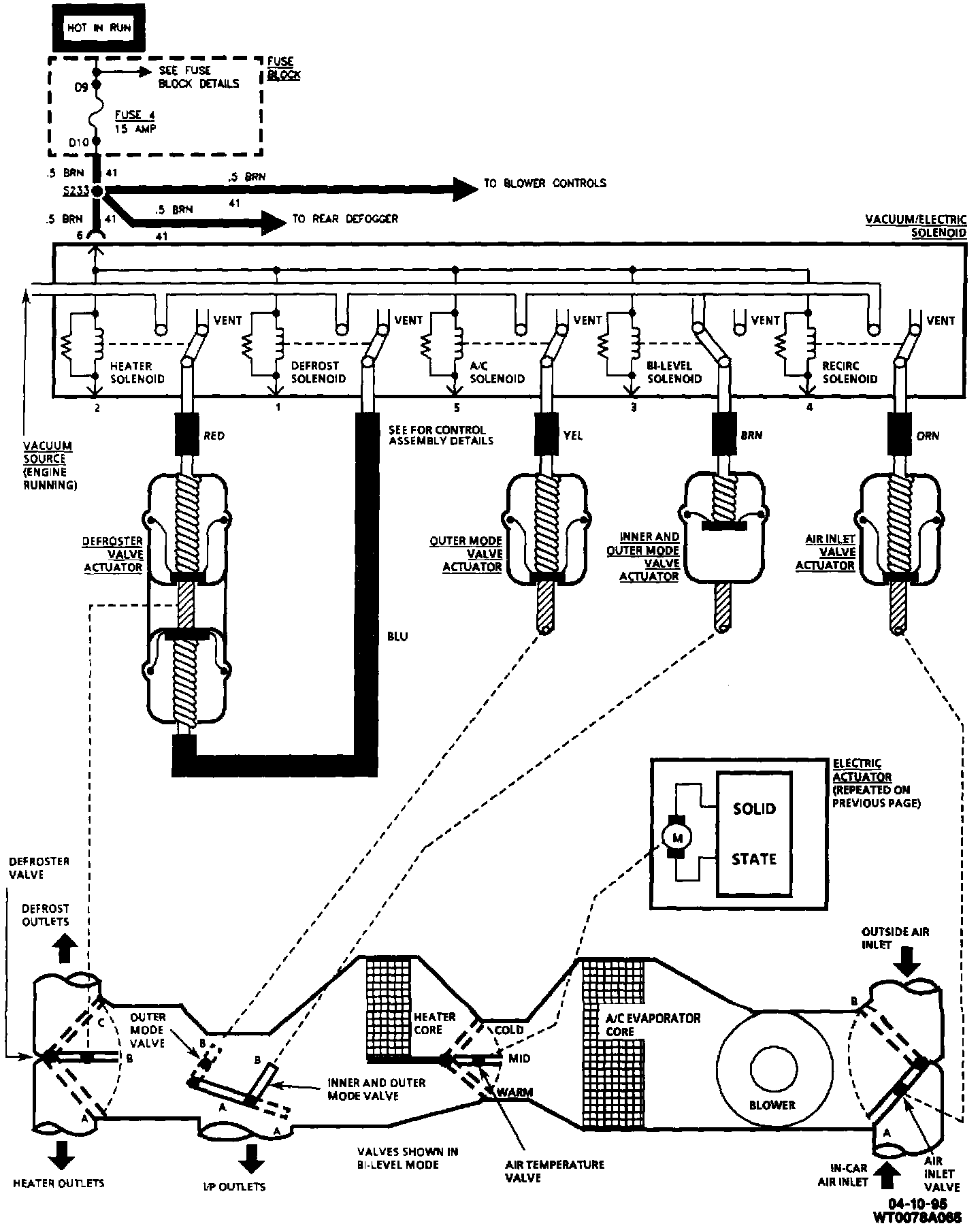

Air Delivery (RPO C60/C67):
