Dual Zone Climate Controls

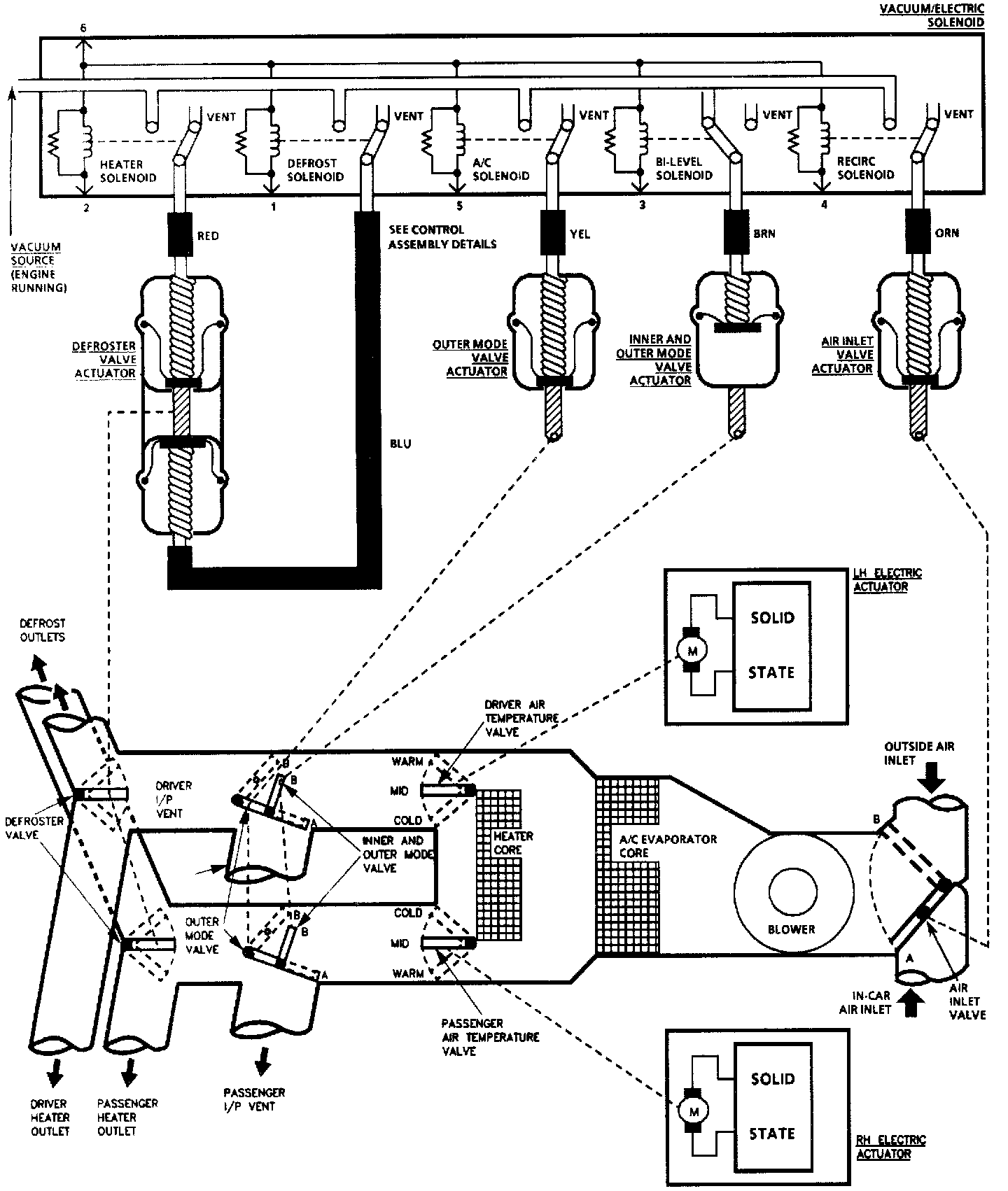

Air Delivery & Temperature Control - Dual Zone:



Air Delivery & Temperature Control - Dual Zone (RPO CJ2):
