Drive Belt: Service and Repair

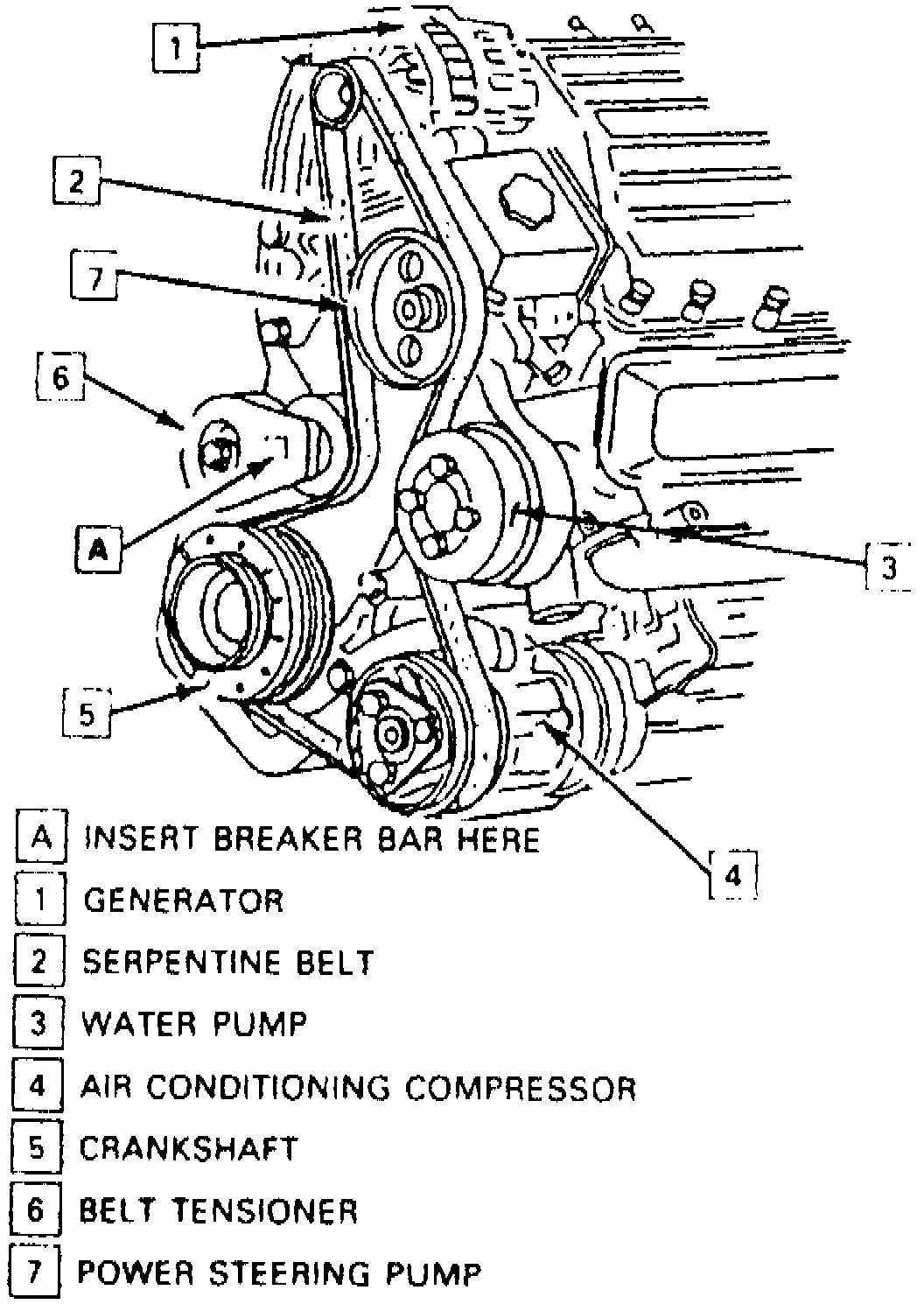

Fig. 20 Serpentine Drive Belt Routing:

1. Remove belt guard.
2. Lift or rotate tensioner using a 1/2 inch breaker bar.
3. Remove serpentine belt.
4. Reverse procedure to install, routing drive belt as shown in Fig.20.
