Buick
>>
1996
>>
Regal V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
IAC and Transmission Range Switch Systems
IAC and Transmission Range Switch Systems

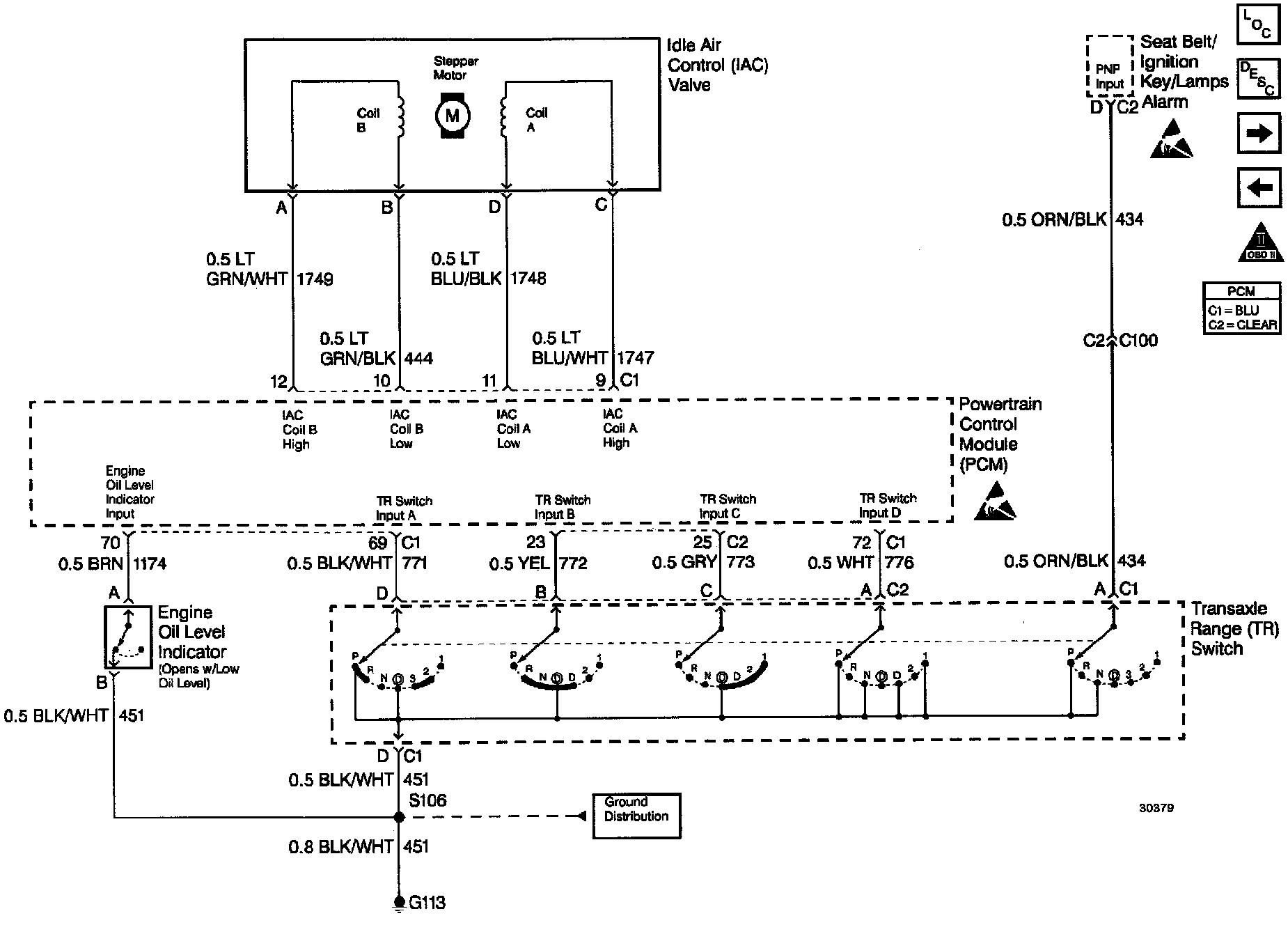

Engine Controls (IAC And Transmission Range Switch Systems):
