A/C - Revised Diagnostic Flowchart #2, Airflow Incorrect
File In Section: 8 - Chassis/Body ElectricalBulletin No.: 73-81-18
Date: February, 1997
SERVICE MANUAL UPDATE
Subject:
Section 8A-65 - Revised Diagnostic Flowchart # 2
Models:
1996 Buick Regal
1996 Chevrolet Lumina, Monte Carlo
1996 Oldsmobile Cutlass Supreme
1996 Pontiac Grand Prix
This bulletin is being issued to revise the Diagnostic Flowchart # 2 on pages 8A-65-15 and 8A-65-16 in the Service Manual.
When performing the Diagnostic Flowchart # 2 (Air Flow From Outlet Is Incorrect), a technician must use a Digital Multimeter in place of a testlight in order to receive the correct results. Place the Digital Multimeter on a voltage scale able to read between 10 and 14 volts. The testlight used in the current chart is incorrect and will not give precise results.

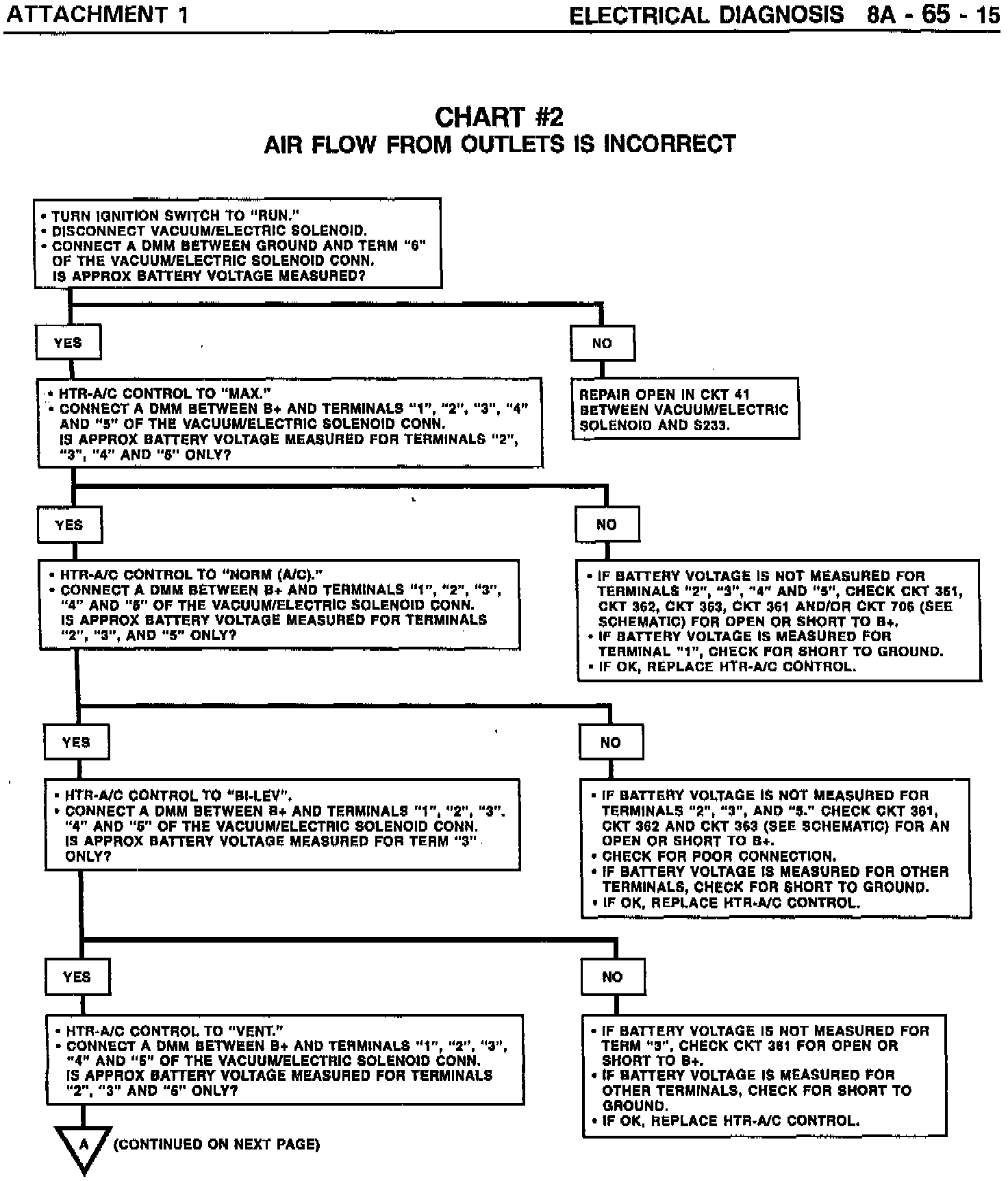

Please use Attachments 1 and 2 to replace the existing chart on the above pages.
