Home >> Buick >> 1996 >> Skylark V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> A/T Shift Indicator Module

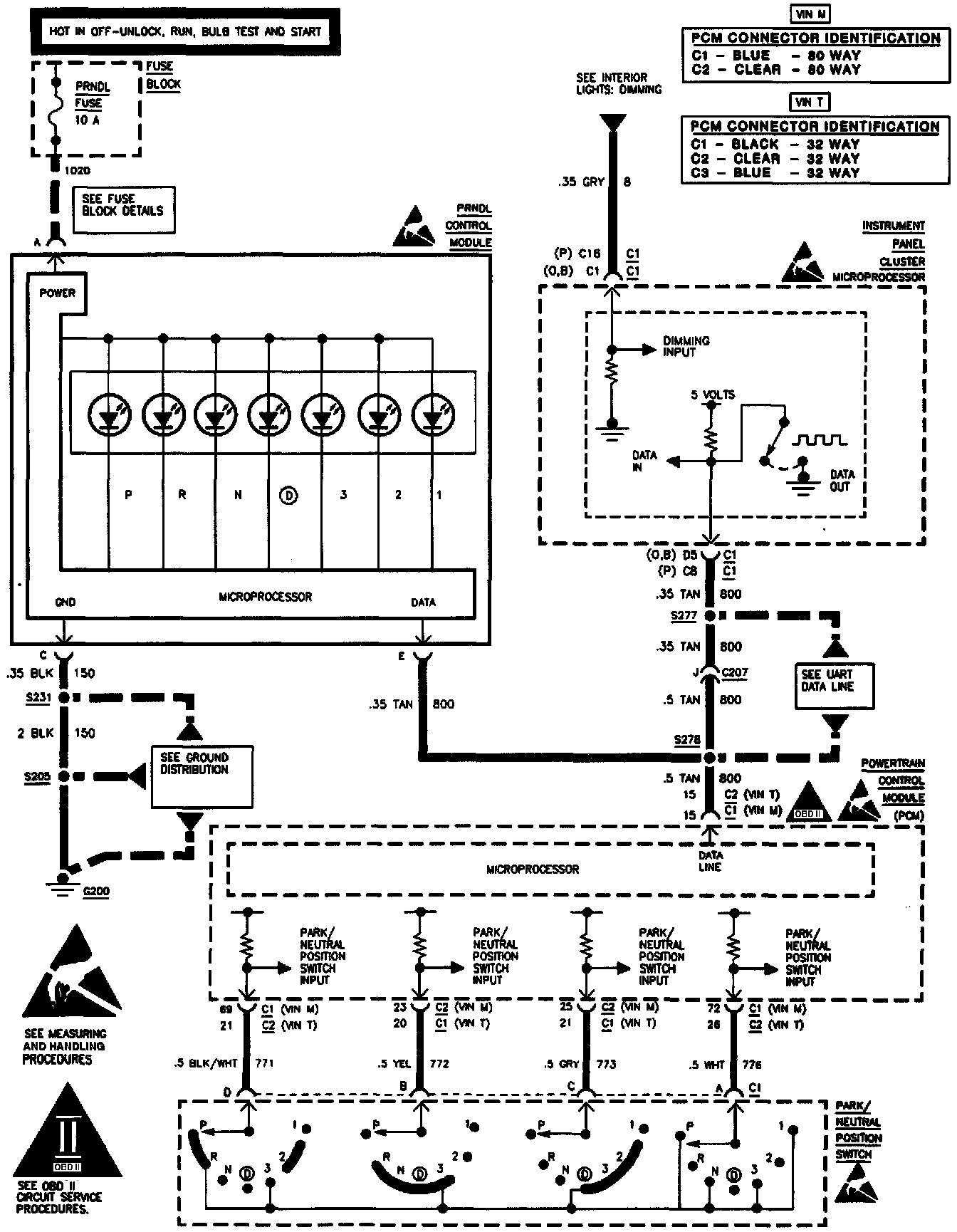

A/T Shift Indicator Module

PRNDL Control Module: With Center Console And Automatic Transaxle:
