Home >> Buick >> 1996 >> Skylark V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Shift Interlock, A/T >> Without Center Console

Without Center Console

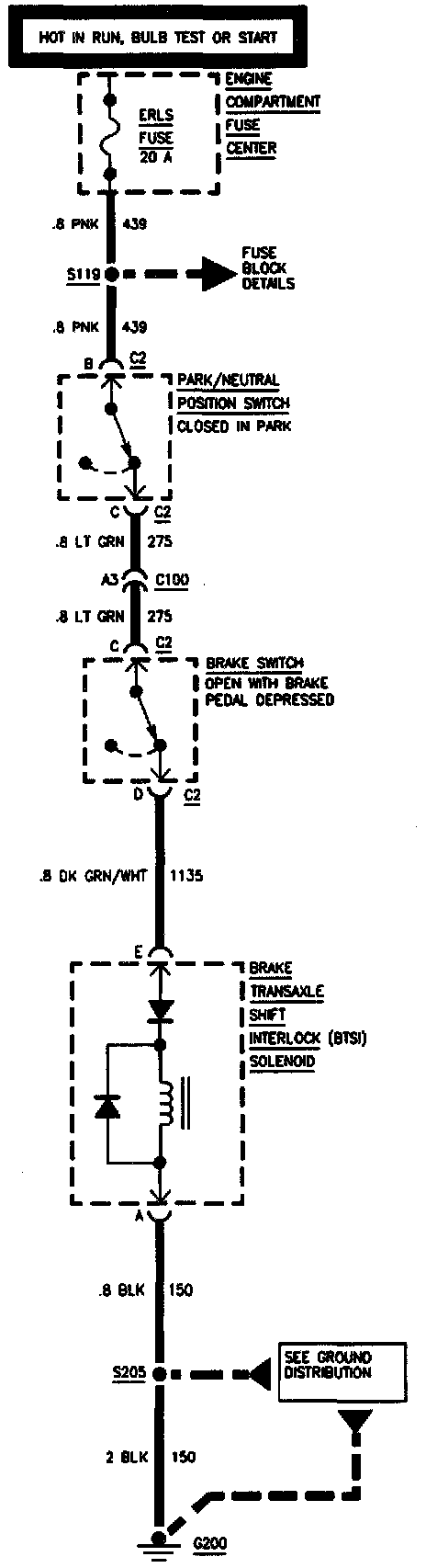

Brake Transaxle Shift Interlock: Without Center Console:
