EOP, TR, & IAC Valve
EOP, TR, & IAC Valve

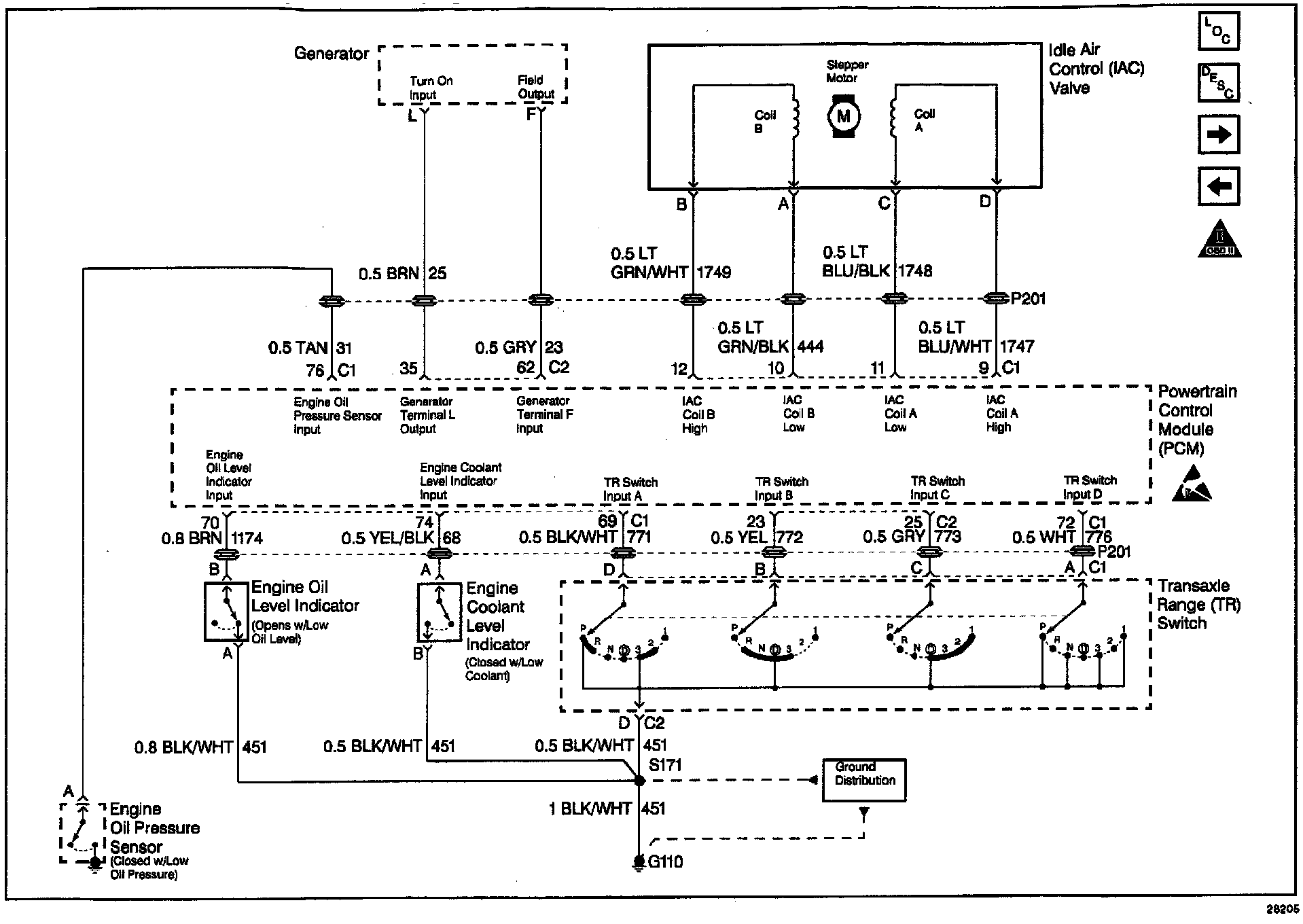

Engine Controls (Engine Oil Pressure Sensor, Transaxle Range Switch, IAC Valve):
