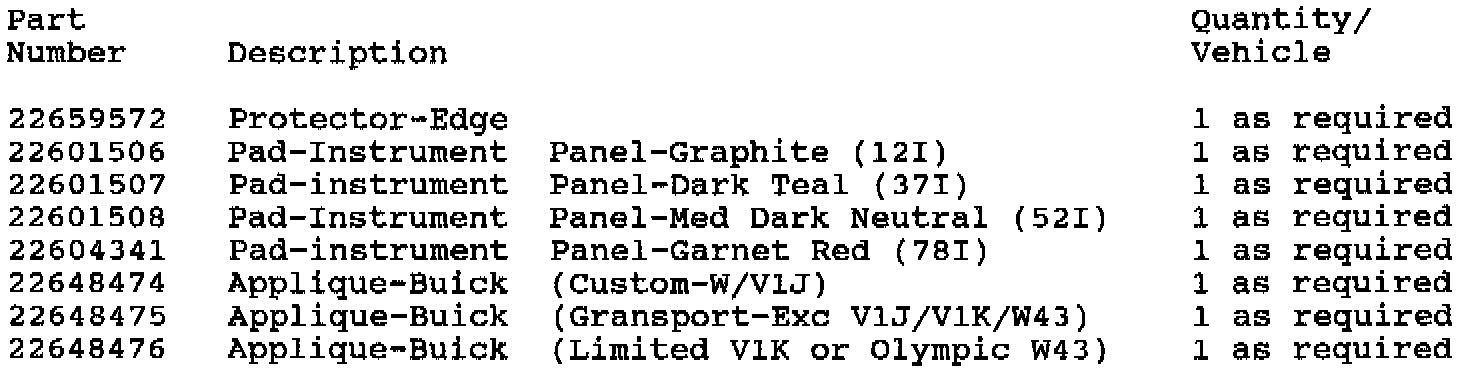

Parts Information

NOTICE:
40% of requirements of P/N 22659572-(edge protector) required to complete this campaign will be pre-shipped to involved dealers of record. This pre-shipment will occur the week of November 4, 1996. Parts received for a recently transferred vehicle should be forwarded by the original dealer (with a phone call) to the dealer that received the transferred vehicle. Pre-shipped parts will be charged to dealer's open parts account.

Notice:
Due to limited initial parts availability of I/P pads (P/NS 22601506,7,8, and 22604341) and Buick appliques (P/Ns 22648474,5,6), dealers are encouraged not to order I/P pads or appliques for use as shelf stock.

I/P pads and appliques should only be ordered when inspection determines that it is necessary to replace the I/P pad and applique.





Orders for I/P pads and appliques should be placed on a CSO-3= Customer Special Order - Overnight Delivery. Apply for reimbursement for any additional charges associated with CSO-3 orders in the "NET ITEMS" column of the warranty claim table.

Additional edge protectors (P/N 22659572), if required, are to be obtained from General Motors Service Parts Operations (GMSPO). Please refer to your "involved vehicles listing" prior to ordering requirements. Normal orders should be placed on a DRO = Daily Replenishment Order. An emergency requirement should be ordered on a CSO = Customer Special Order.

- Edge protector P/N 22659572 is not required when installing a new I/P pad.

- I/P pad P/Ns 22601506, 7, 8 and 22604341 are not required for all early Production vehicles, and are not required for any later-production vehicles.

- Applique P/Ns 22648474, 5, 6 are only required when installing a new I/P pad on Buick vehicles.
