Home >> Buick >> 1997 >> Skylark V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Antilock Brake System Schematic

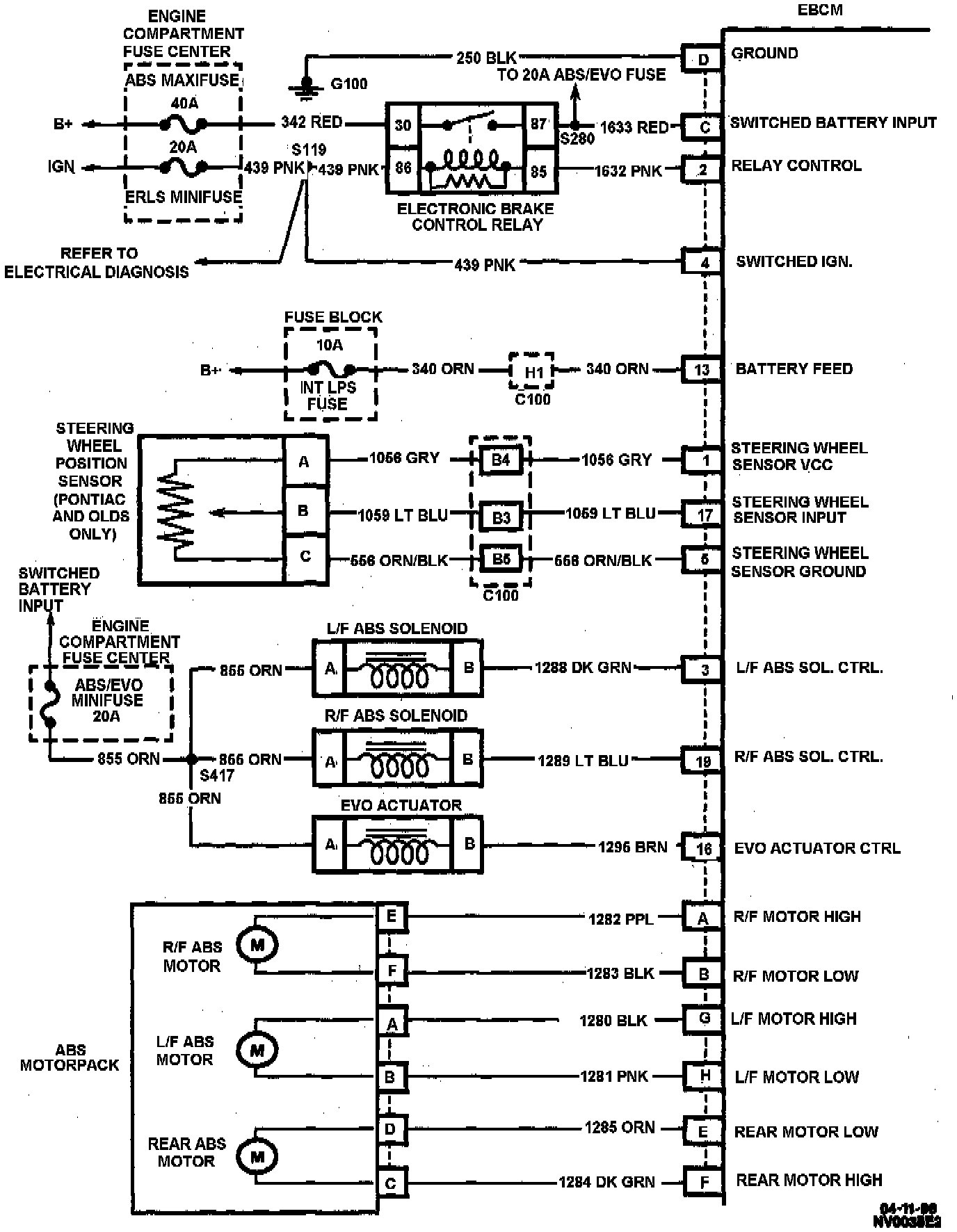

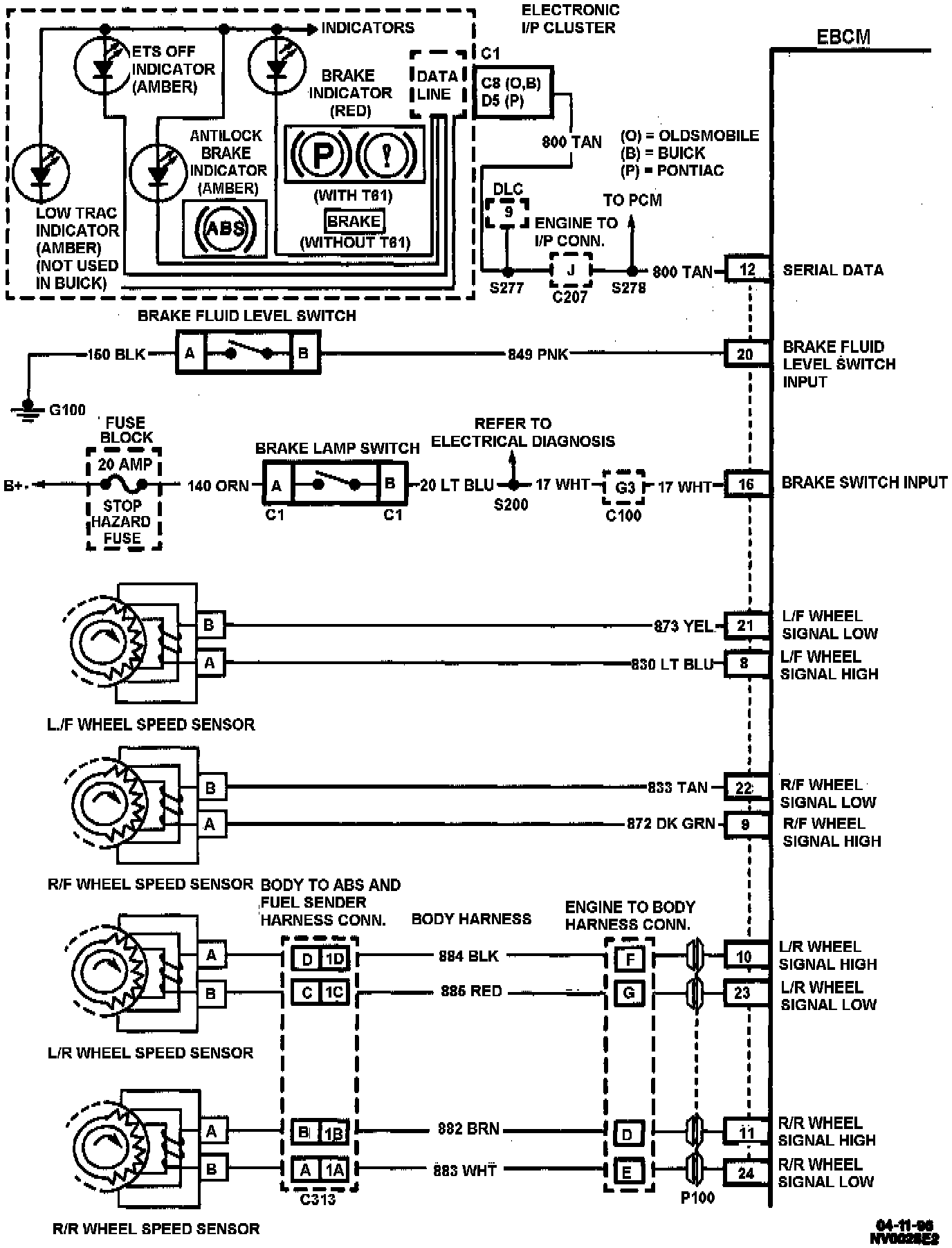

Antilock Brake System Schematic
