Antilock Brake System Wiring Diagrams

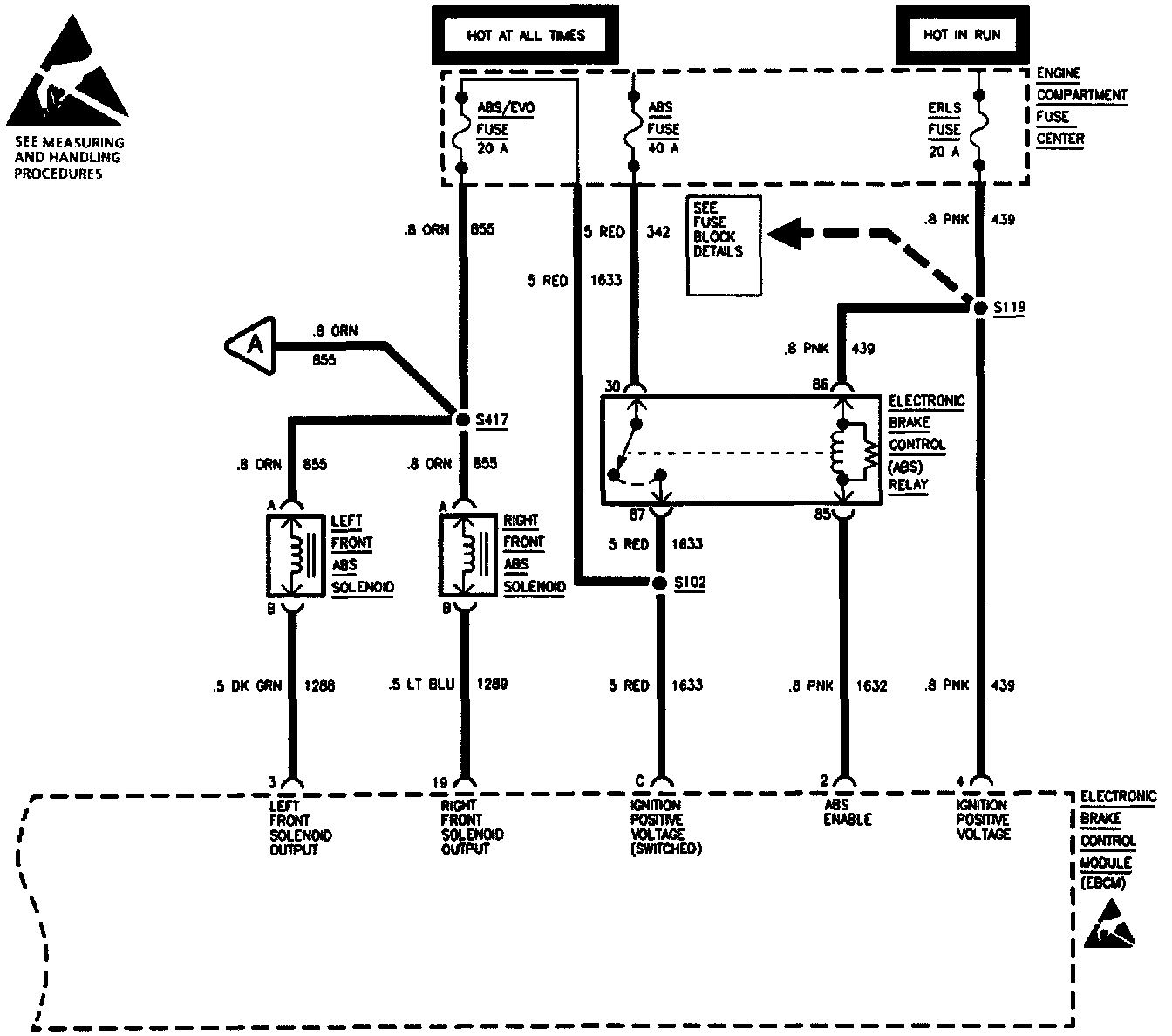

Antilock Brake (Part 1 Of 4):

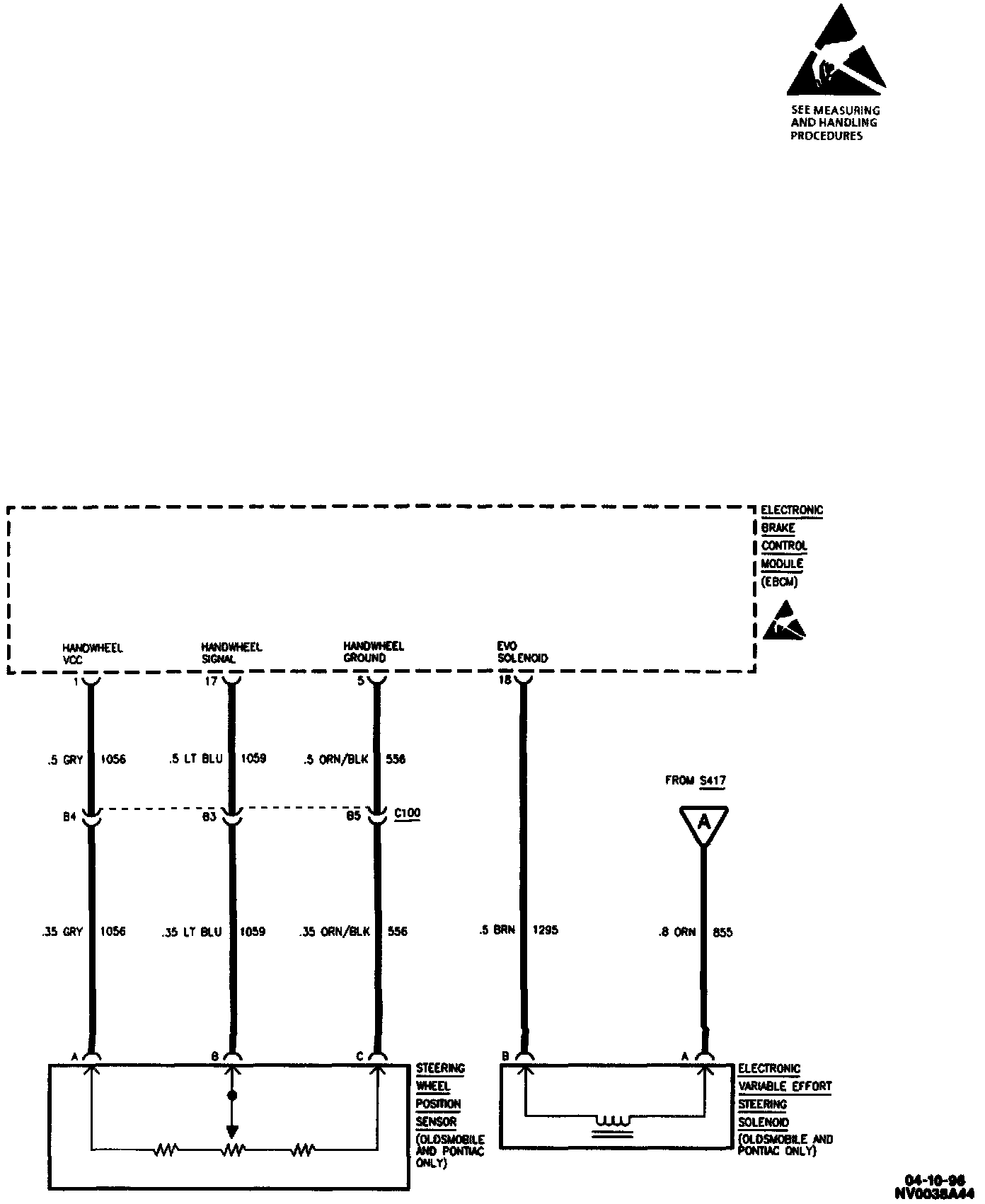

Antilock Brake (Part 2 Of 4):

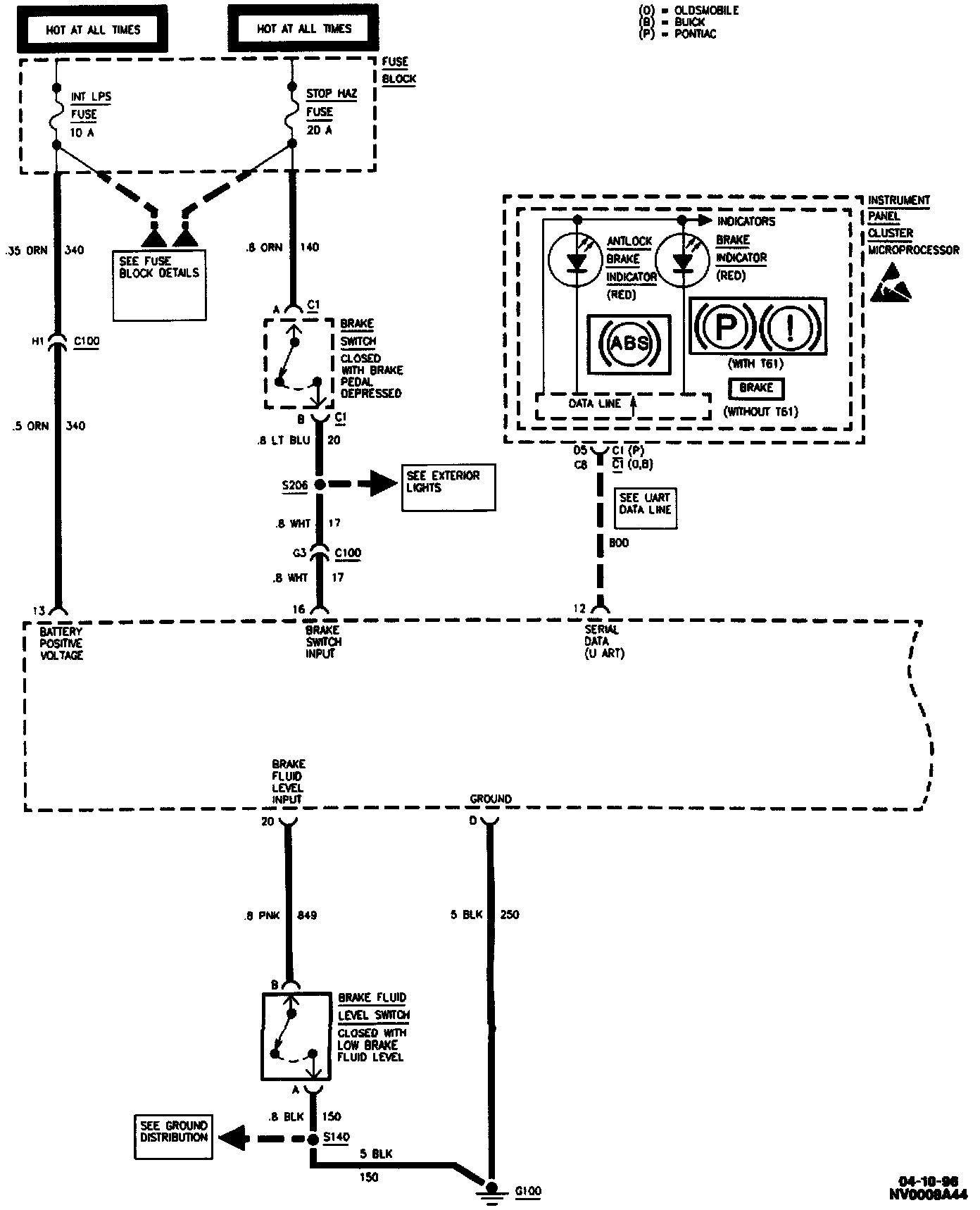

Antilock Brake (Part 3 Of 4):




Antilock Brake (Part 4 Of 4):
