Home >> Buick >> 1997 >> Skylark V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering Column >> BTSI with Center Console

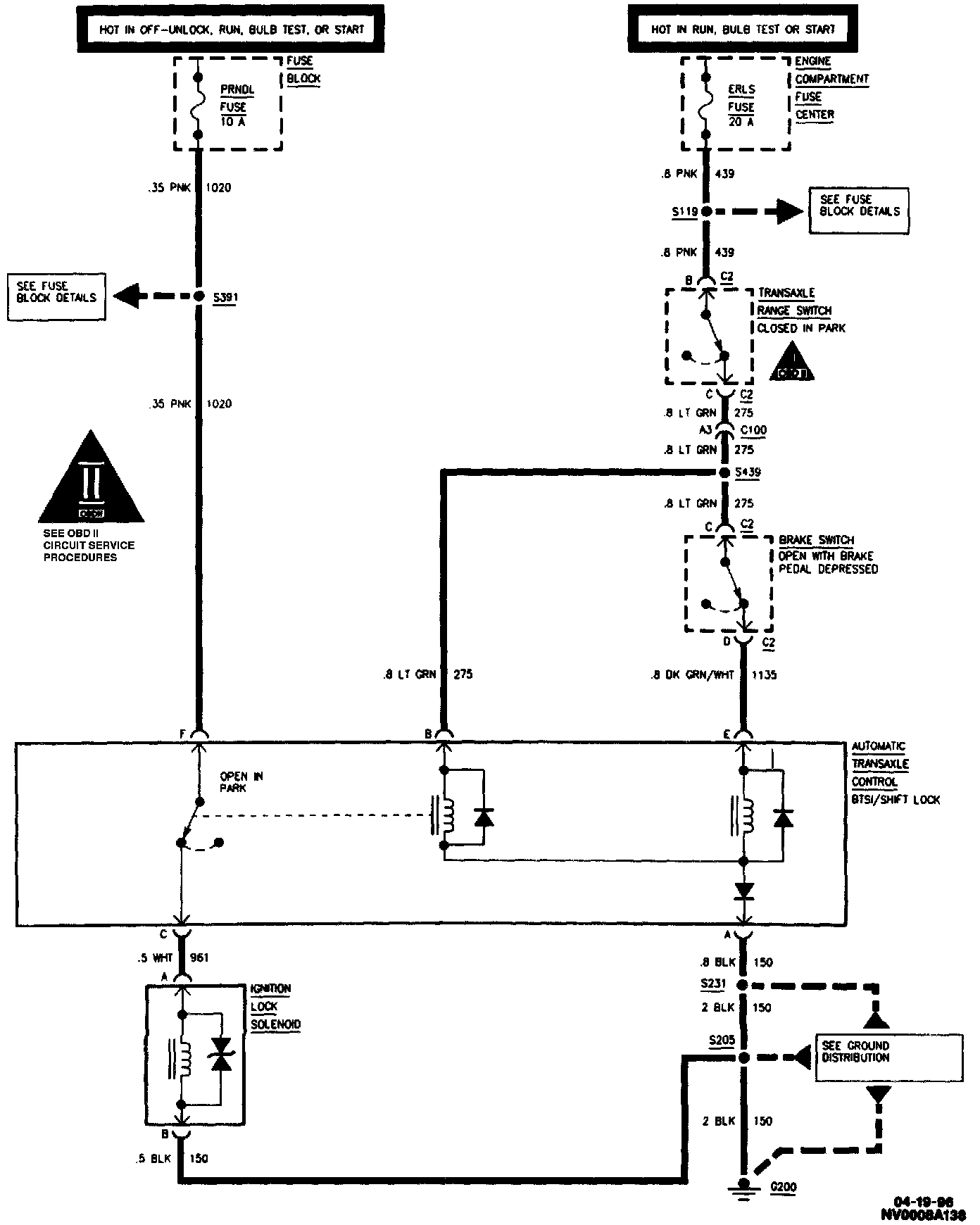

BTSI with Center Console

Brake Transaxle Shift Interlock: All With Center Console:
