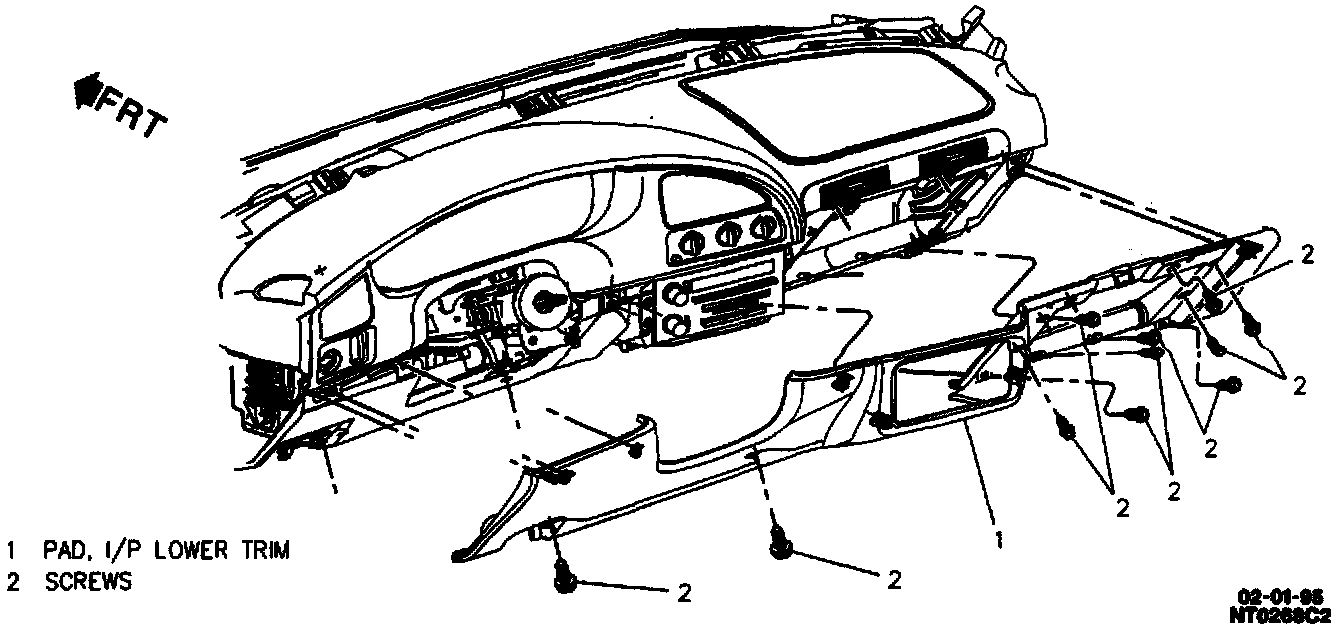

Trim Pad Replacement - Lower

Lower I/P Trim Plate (Buick And Oldsmobile):

Remove or Disconnect
1. I/P Cluster Trim Plate.
2. I/P Sound Insulators.
3. I/P compartment.
4. Screws and bolts.
5. Lower I/P Cluster Trim Pad.

Install or Connect
1. Lower I/P Cluster Trim Pad.
2. Screws and bolt.

Tighten
^ Trim Pad screws to 2 Nm (17 lb in)

3. I/P compartment.
4. I/P Sound Insulators.
5. I/P Cluster Trim Plate.
