Instrument Panel Cluster Replacement

I/P Cluster (Buick):

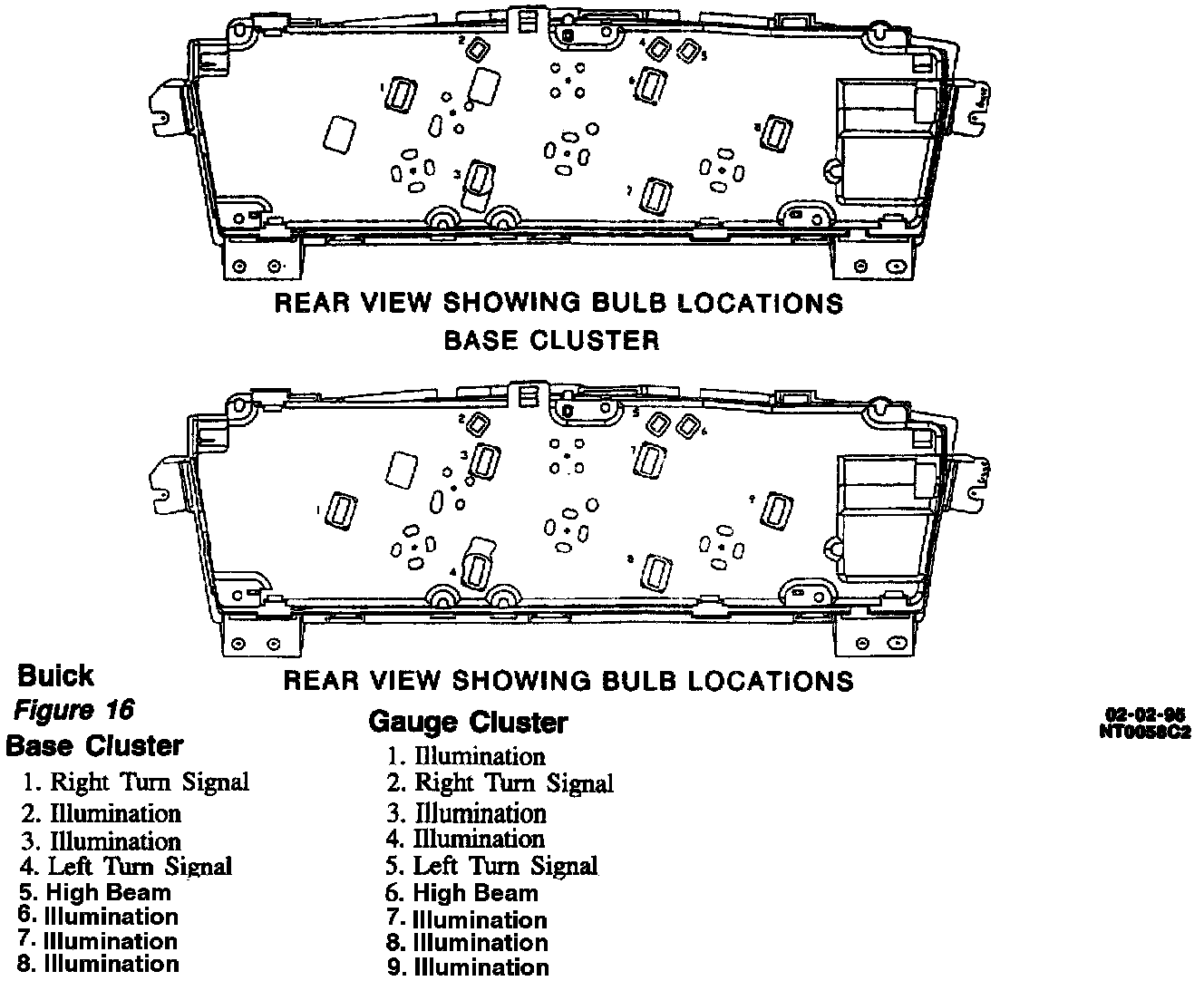

Rearview Of I/P Cluster (Buick):

Remove or Disconnect
1. I/P cluster trim plate.
2. Screws to I/P.
3. Electrical connector.
4. I/P cluster.

Install or Connect
1. I/P cluster.
2. Electrical connector.
3. Screws to I/P

Tighten
^ I/P Cluster screws to 2 N.m (17 lb. in.)

4. I/P cluster trim plate.

Legend
Base Cluster
1. Right Turn Signal
2. Illumination
3. Illumination
4. Left Turn Signal
5. High Beam
6. Illumination
7. Illumination
8. Illumination

Gauge Cluster
1. Illumination
2. Right Turn Signal
3. Illumination
4. Illumination
5. Left Turn Signal
6. High BEam
7. Illumination
8. Illumination
9. Illumination
