Symptom Diagnostic Charts - Park Lock/Brake Transmission Shift Interlock (BTSI)
>>
Chart #2 Ignition Cylinder CAN Be Rotated to Lock
Chart #2 Ignition Cylinder CAN Be Rotated to Lock

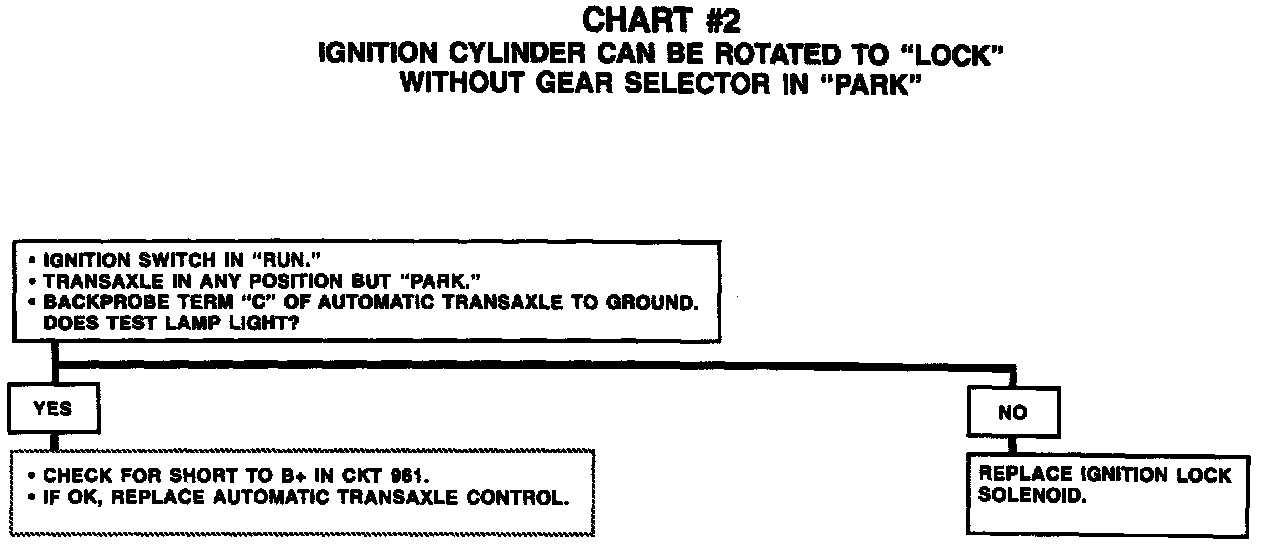

Chart #2 Ignition Cylinder Can Be Rotated To LOCK:
