Hydraulic Control Assembly - Antilock Brakes
Hydraulic Control Assembly - Antilock Brakes

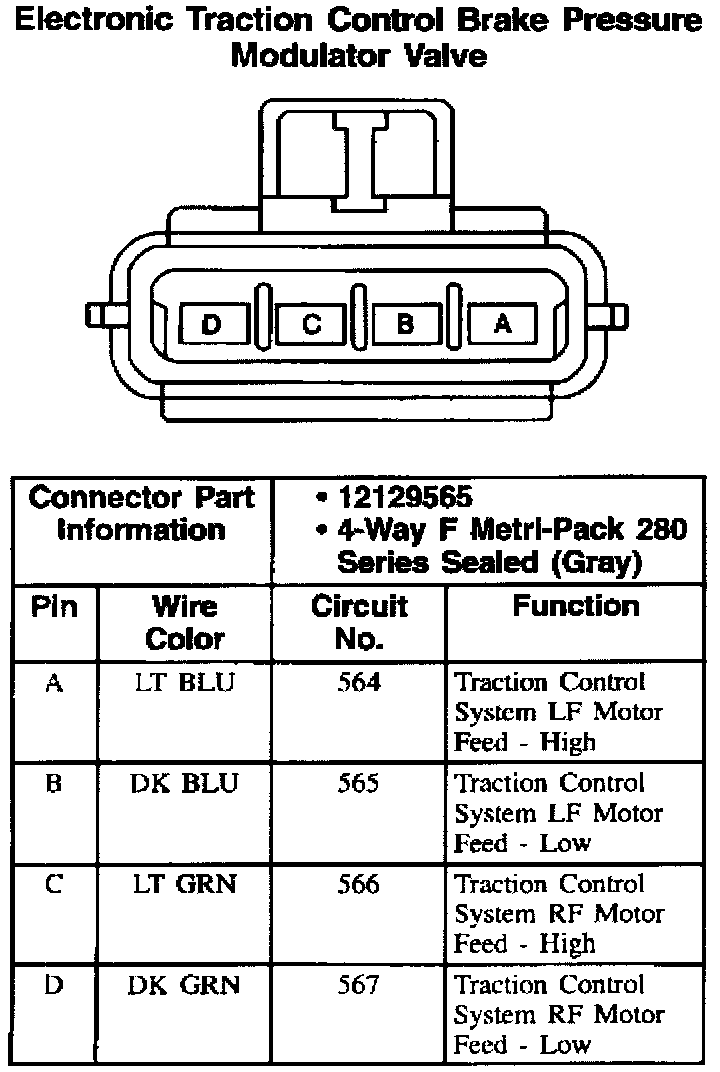

Electronic Traction Control Brake Pressure Modulator Valve:
