Trim Pad Replacement - Lower

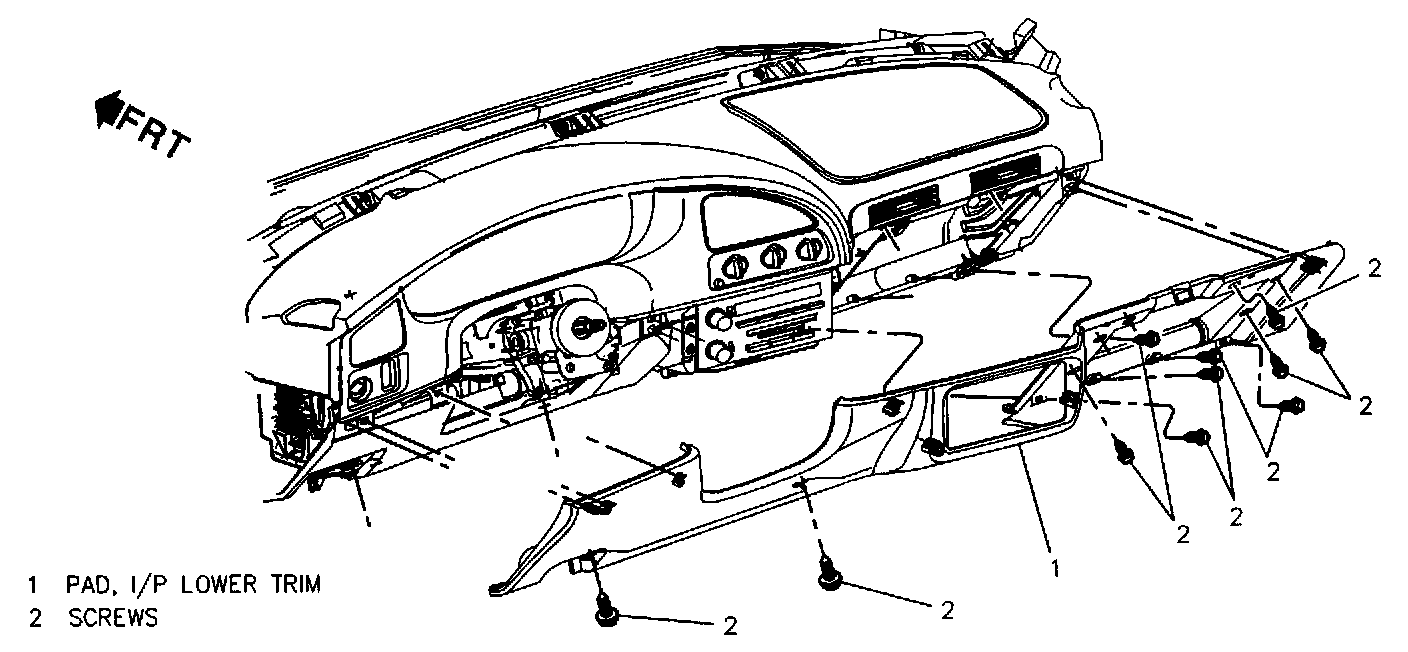

I/P Lower Trim Pad (Buick And Oldsmobile):

REMOVE OR DISCONNECT
1. I/P Cluster Trim Plate. Refer to I/P Cluster Trim Plate Instrument Panel Cluster Trim Plate Replacement
2. I/P Sound Insulators. Refer to I/P Sound Insulators
3. I/P compartment. Refer to I/P Compartment Service and Repair
4. Screws and bolt.
5. Lower I/P Cluster Trim Pad.

INSTALL OR CONNECT
1. Lower I/P Cluster Trim Pad.
2. Screws and bolt.

Tighten
^ Trim Pad screws to 2 Nm (17 lb in)

3. I/P compartment. Refer to I/P compartment
4. I/P Sound Insulators. Refer to I/P Sound Insulators
5. I/P Cluster Trim Plate. Refer to I/P Cluster Trim Plate
