Cylinder Head Installation (Left and Right)

^ Tools Required
- J 36666 Torque Angle Meter





1. Install the cylinder head gasket.





2. Install the cylinder head.





3. Install the cylinder head bolts.

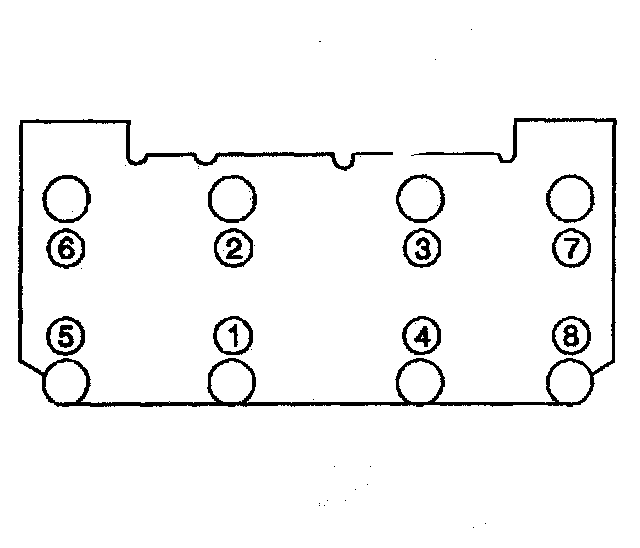

^ Tighten the cylinder head bolts in sequence to 50 Nm (37 ft. lbs.). Turn the bolts an additional 90 degrees using the 36660.

NOTICE: Refer to Fastener Notice in Service Precautions.
