Home >> Buick >> 1999 >> Century V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Steering Wheel Control Schematics

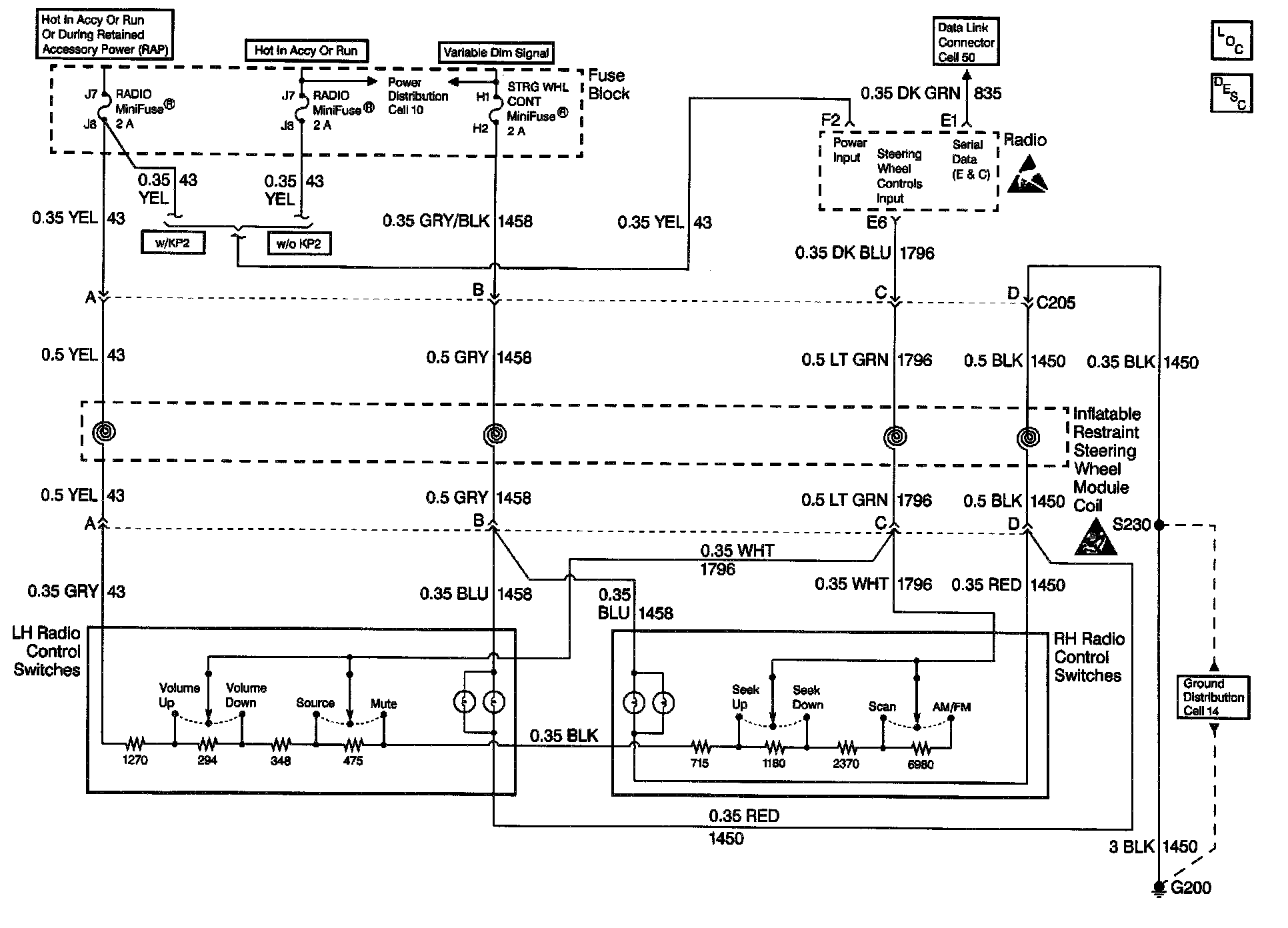

Steering Wheel Control Schematics

Steering Wheel Controls Schematics:
