Case Fluid Passages
Case Fluid Passages

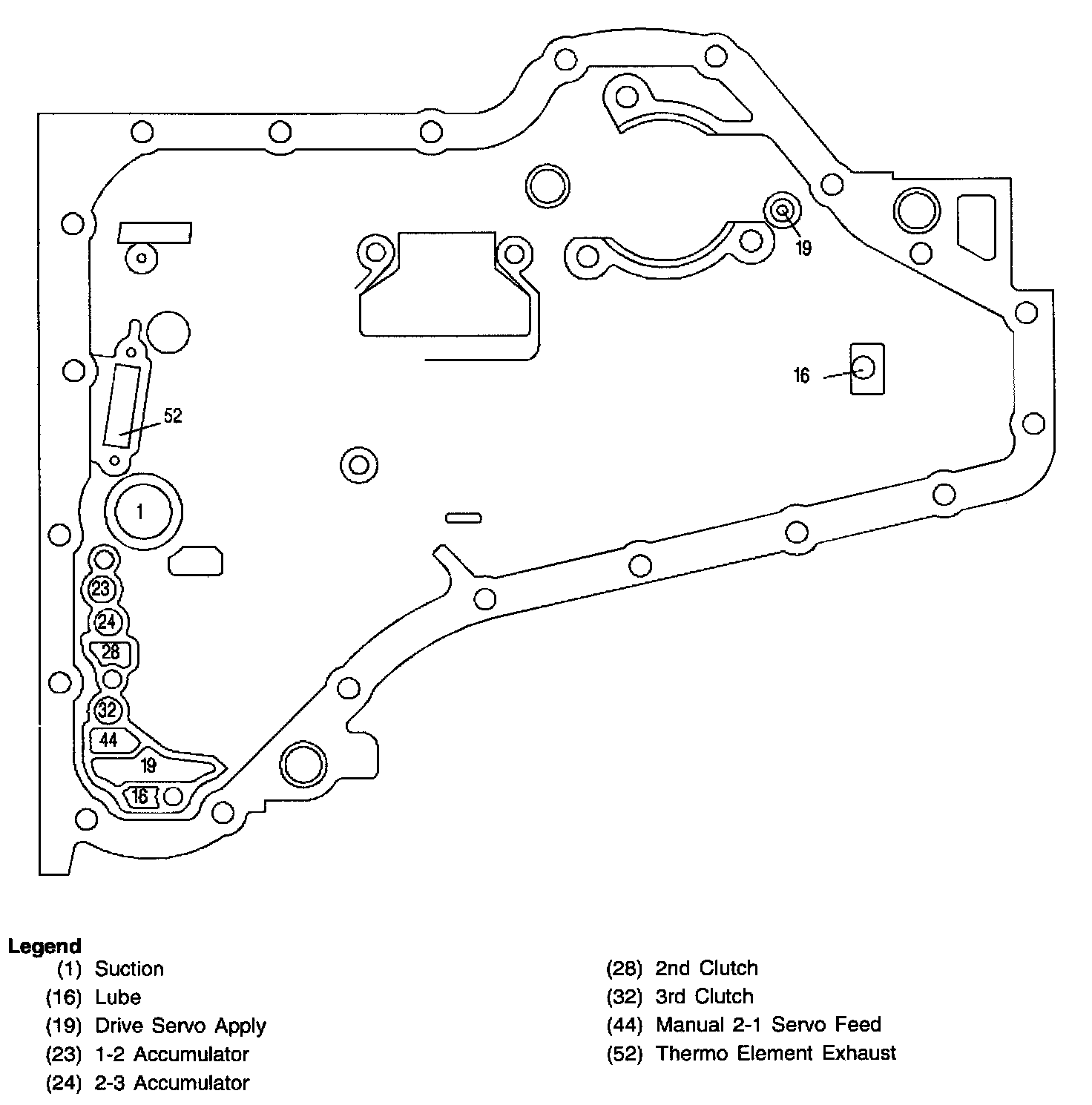

CASE FLUID PASSAGES (
CHANNEL PLATE
SIDE
CASE FLUID PASSAGES (BOTTOM)
