Refrigerant Pressure Sensor / Switch: Locations

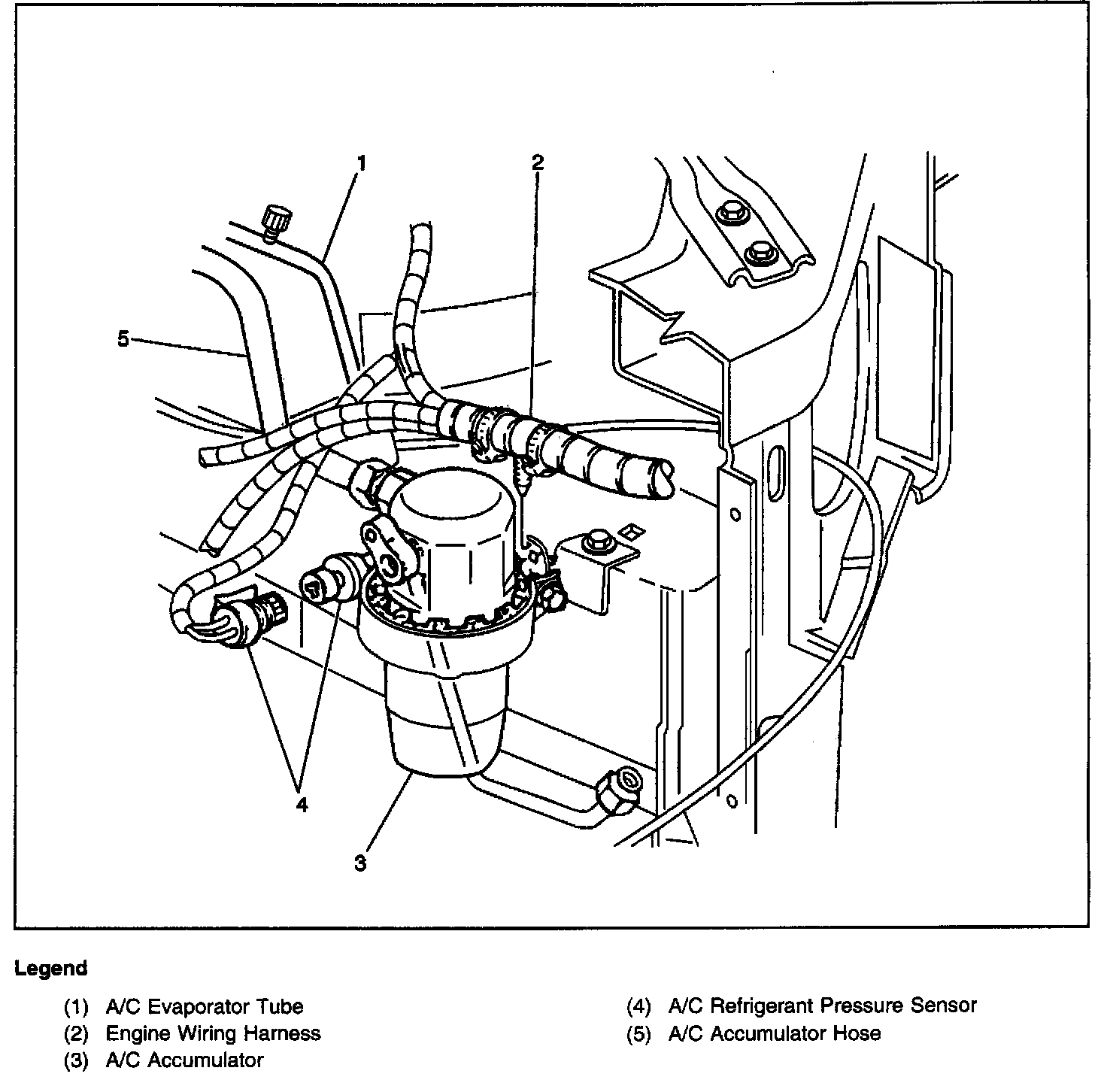

A/C Accumulator And A/C Pressure Sensor - Right Side Of Engine Compartment:

MANUAL
Left side of the engine compartment, near the accumulator


AUTOMATIC
Left side of the engine compartment, near the accumulator
