Home >> Buick >> 1999 >> Century V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Power and Ground Distribution >> Fusible Link >> Locations

Fusible Link: Locations

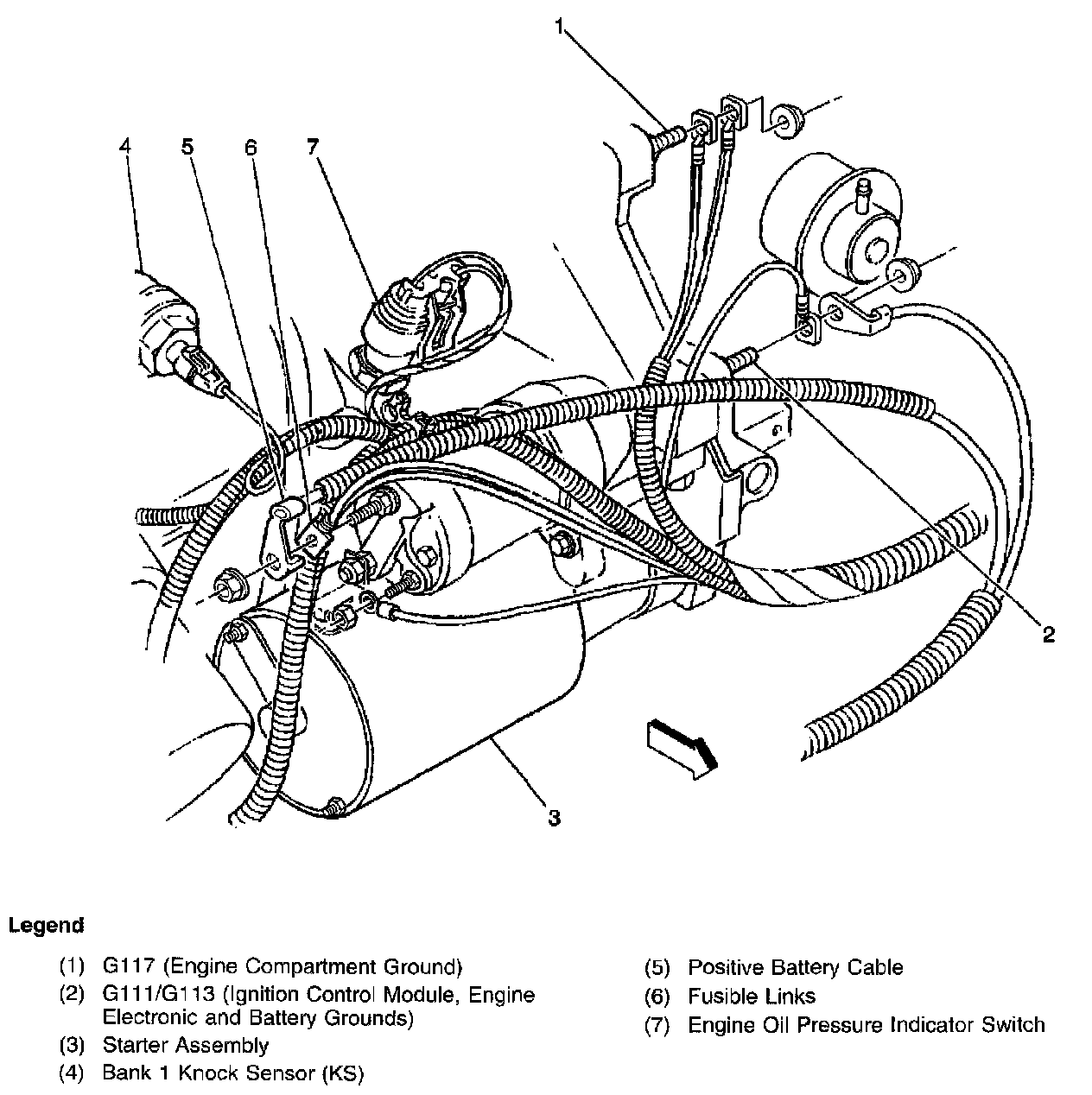

Component View:





Front of the engine, on the starter assembly
