Emission Controls

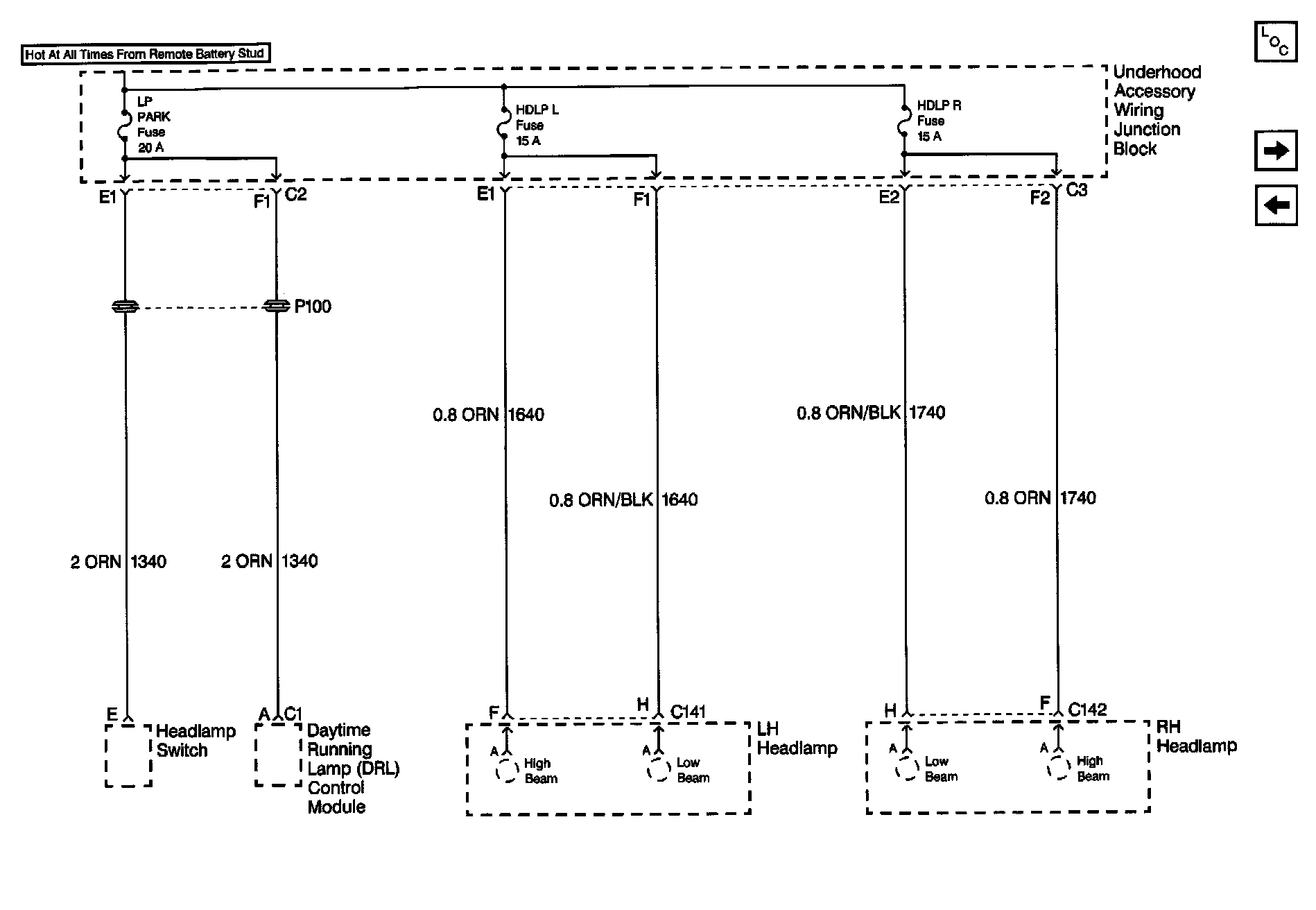

Power Distribution Schematics: Underhood Accessory Wiring Junction Block:



Fuse Block Details Schematics: ENG EMIS Fuse:
