Brakes - Revised Brake Rotor Specifications

Bulletin No.: 05-05-23-004

Date: June 17, 2005

SERVICE MANUAL UPDATE

Subject:
Revised Brake Rotor Specifications

Models:
1997-2000 Buick Century, Regal
2000 Chevrolet Impala, Monte Carlo
1998-2000 Oldsmobile Intrigue
1997-2000 Pontiac Grand Prix

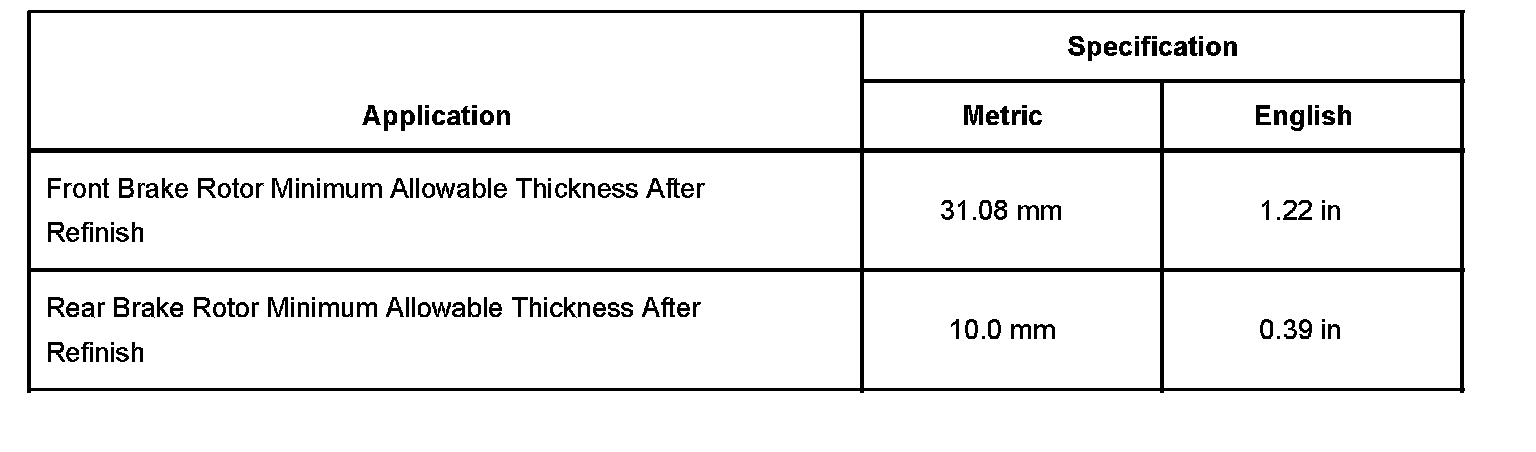

This bulletin is being issued to revise the front and rear brake rotor minimum allowable thickness after refinish specification in the Disc Brakes sub-section of the Service Manual. Please replace the current information in the Service Manual with the following information.





The information has been updated within SI. If you are using a paper version of this Service Manual, please make a reference to this bulletin on the affected page.
