Blower Motor Resistor: Service and Repair
BLOWER MOTOR RESISTOR ASSEMBLY REPLACEMENTREMOVAL PROCEDURE
1. Remove the right side instrument panel insulator.

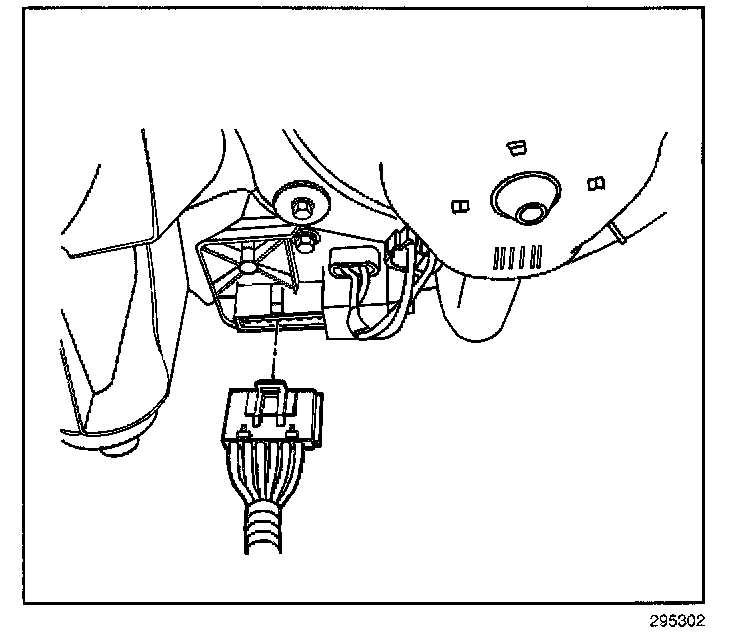

2. Disconnect the electrical connector from the blower motor resistor.

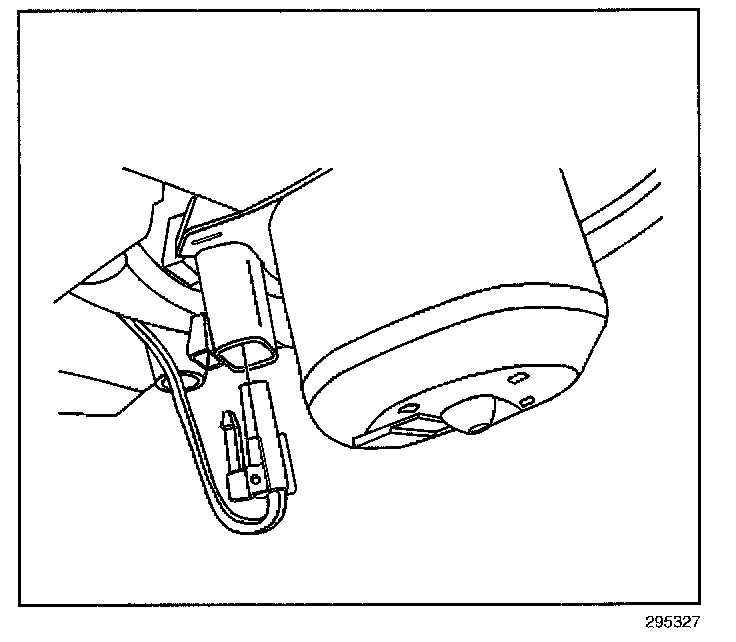

3. Disconnect the electrical connector from the blower motor.
IMPORTANT: The blower motor resistor opening is slotted. Access is extremely limited.

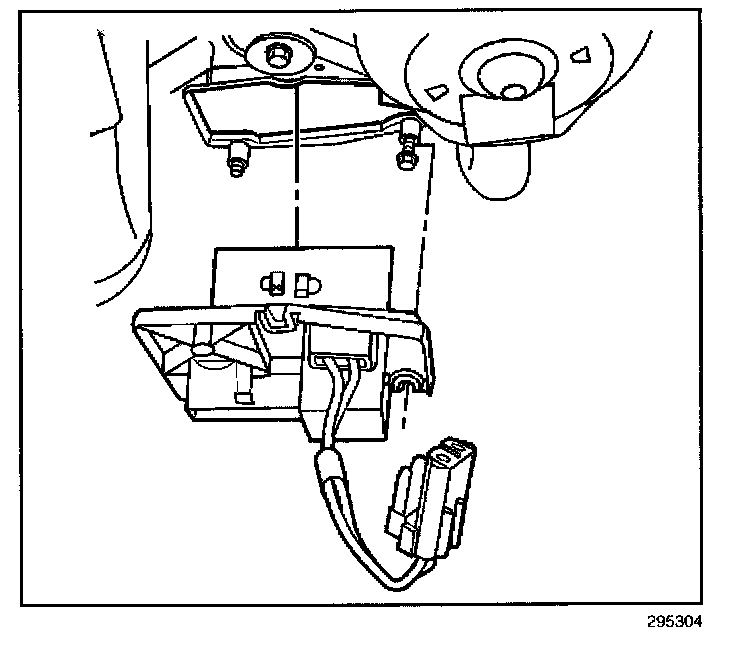

4. Loosen both screws from the forward blower motor resistor.
5. Remove the screws from the rear blower motor resistor.
6. Remove the blower motor resistor.
INSTALLATION PROCEDURE
IMPORTANT: Align the blower motor resistor forward retaining slots onto the screws and seat the blower motor control processor against HVAC module.
1. Install the blower motor resistor.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the rear blower motor resistor screw.
Tighten
Tighten the screw to 1.5 N.m (13 lb in).
3. Tighten the forward blower motor resistor screws.
Tighten
Tighten the screws to 1.5 N.m (13 lb in).
4. Connect the electrical connector to the blower motor.

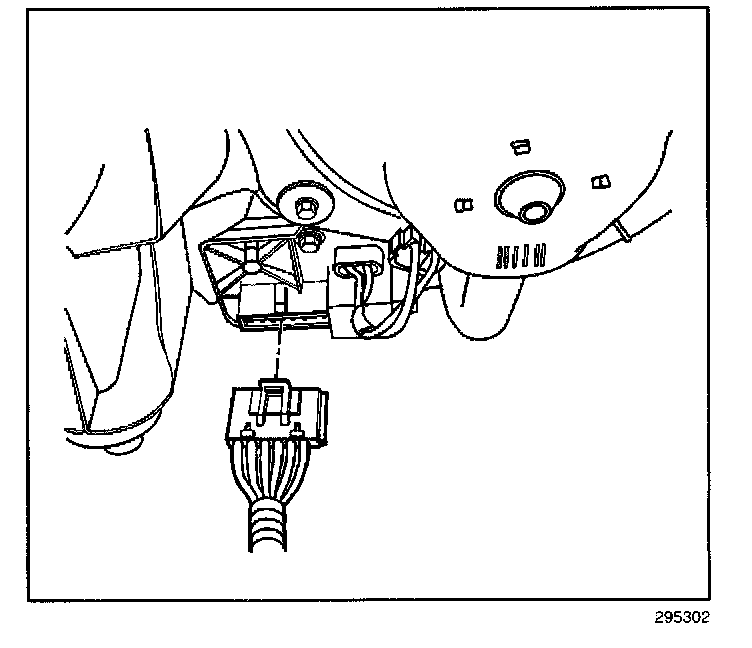

5. Connect the electrical connector to the blower motor resistor.
6. Install the right side instrument panel insulator.
