Amplifier, Sound System
Audio Amplifier C1 (With RPO Code U88):

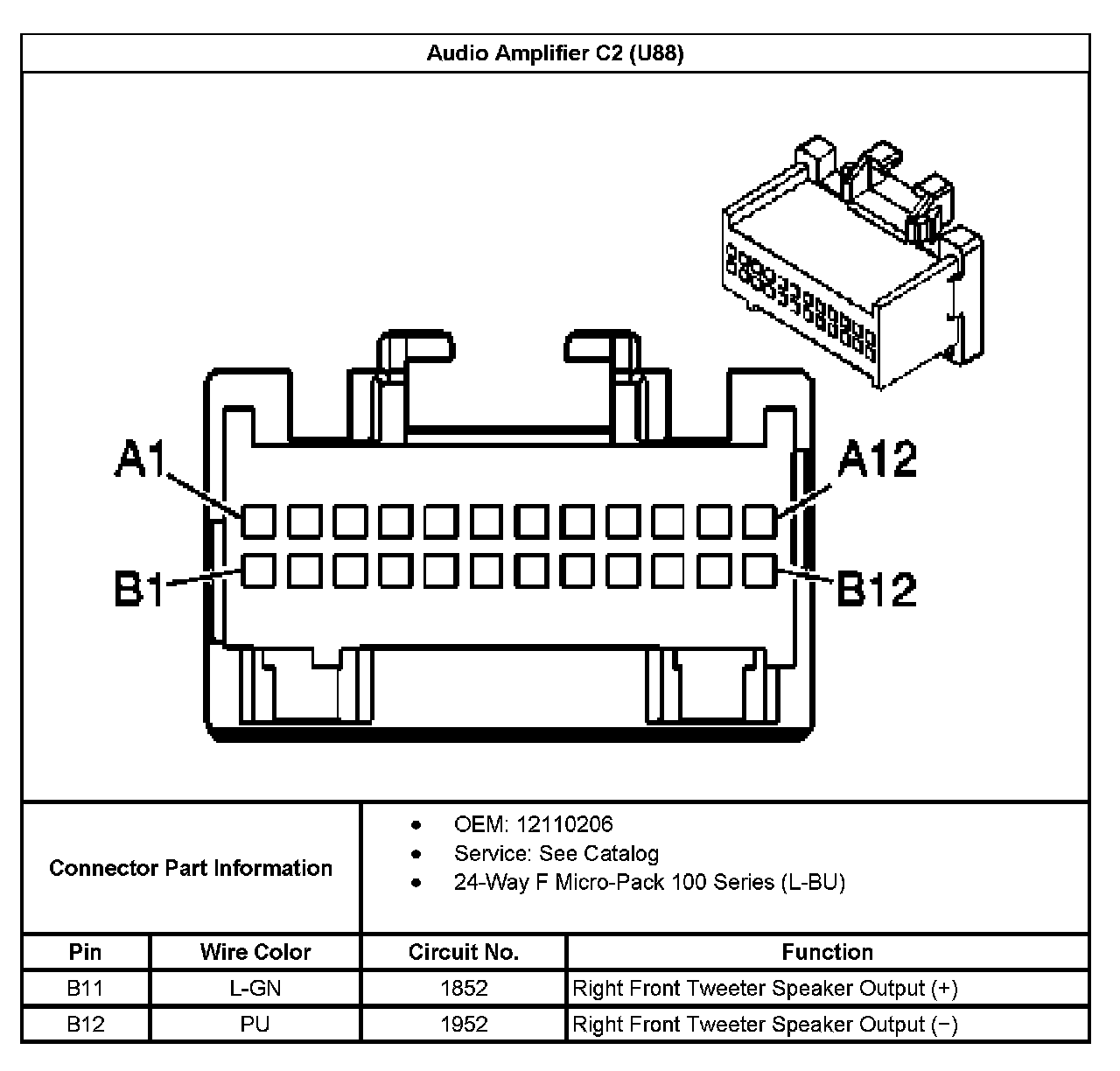

Audio Amplifier C2 (With RPO Code U88) Part 1:
Audio Amplifier C2 (With RPO Code U88) Part 2:
