Cooling System
Cooling System
Cooling Fan - Left Connector End Views:

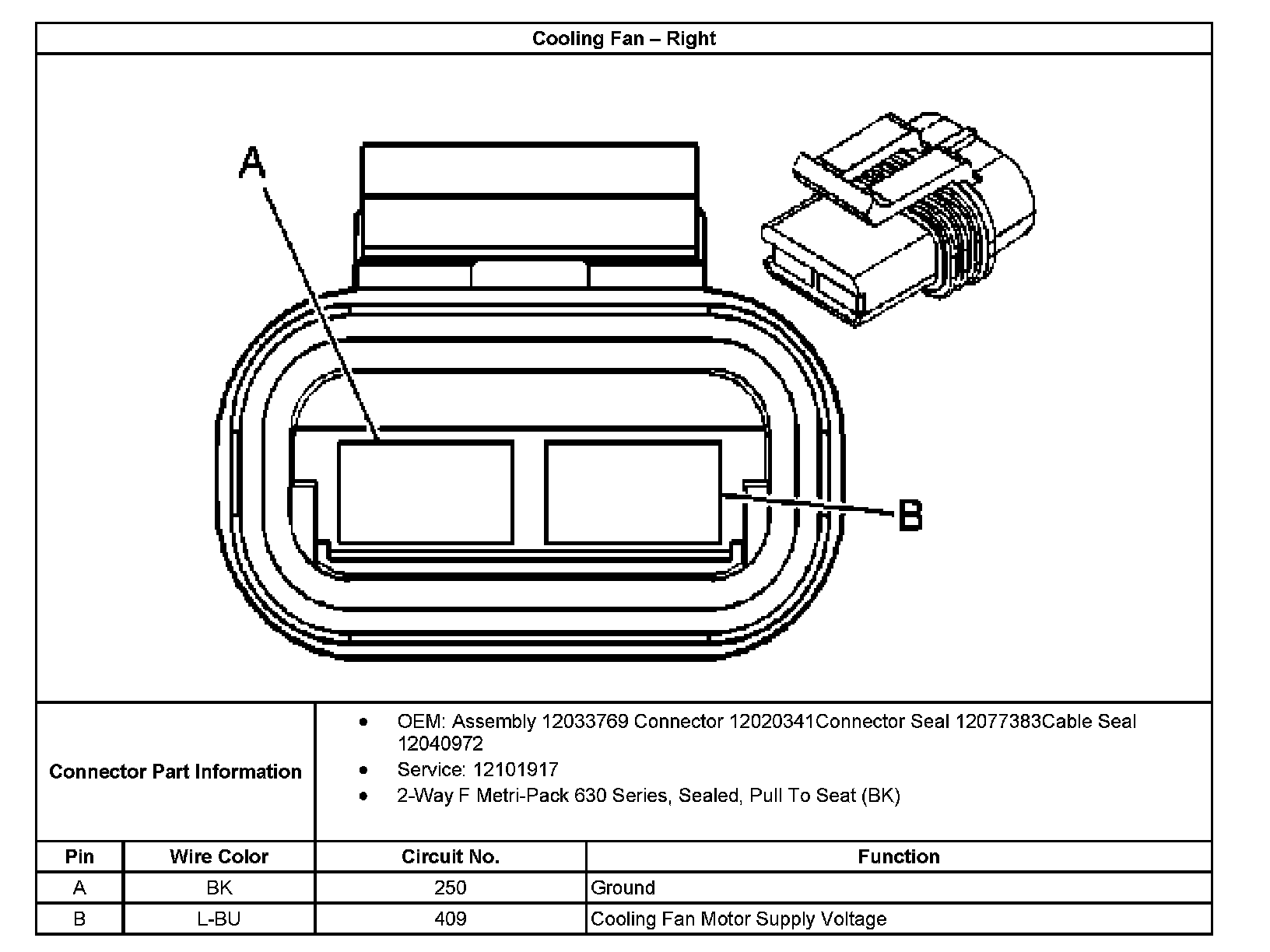

Cooling Fan - Right Connector End Views:
