Home >> Buick >> 2005 >> Allure (CANADA) V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp

Fog/Driving Lamp

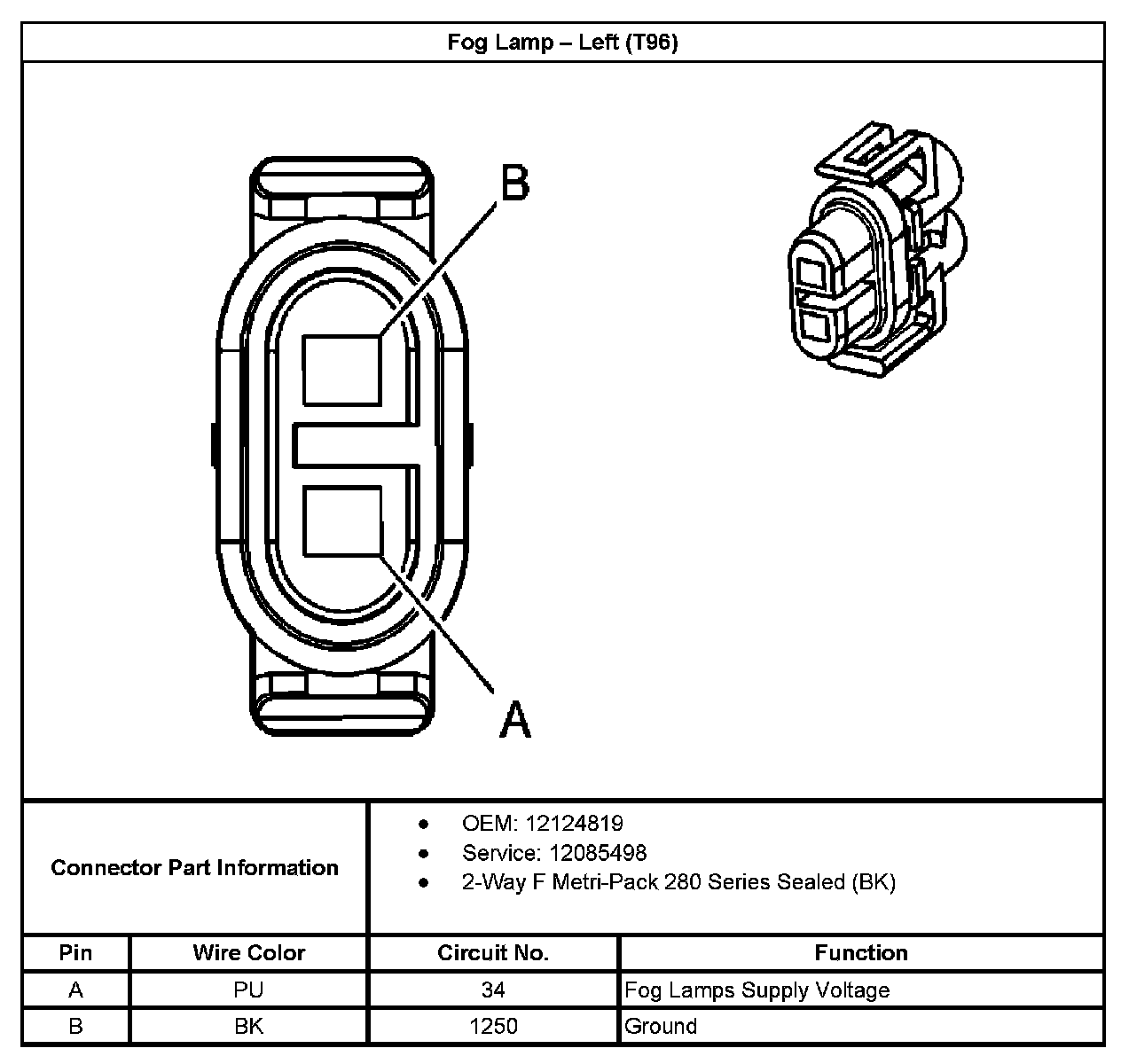

Fog Lamp - Left (T96):



Fog Lamp - Right (T96):
