Seat Temperature Relay

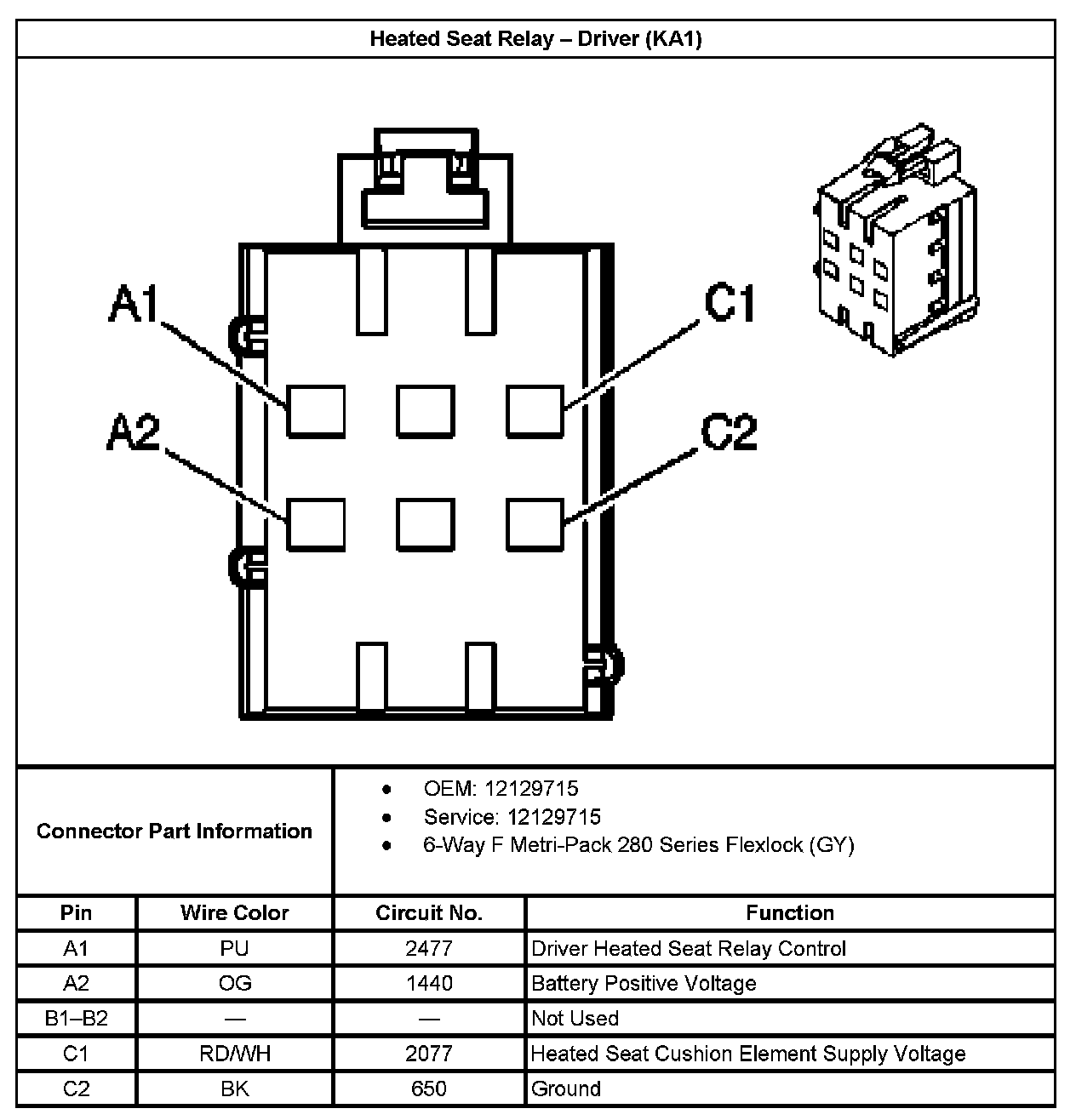

Heated Seat Relay - Driver (With RPO Code KA1):

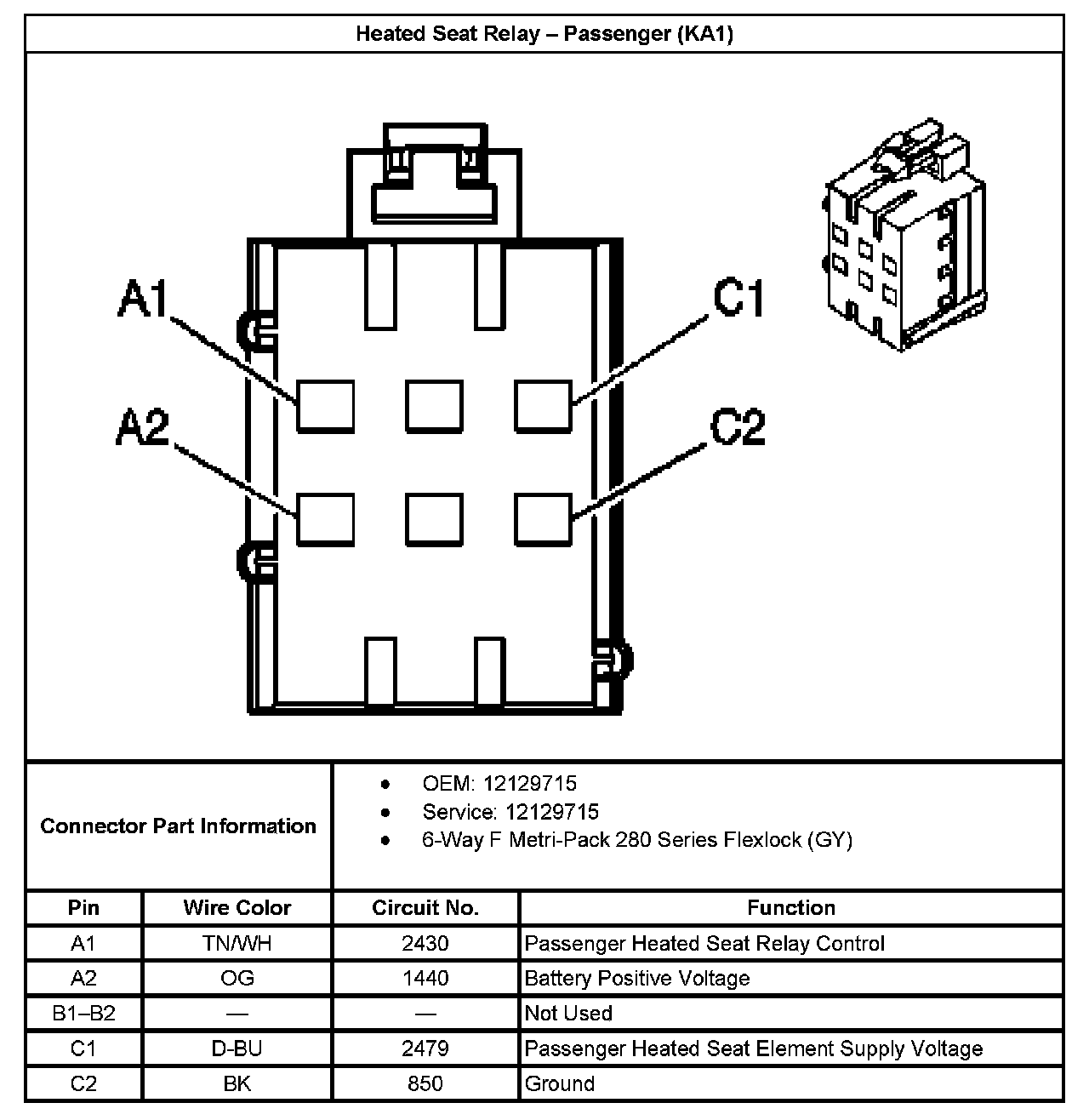

Heated Seat Relay - Passenger (With RPO Code KA1):
