Buick
>>
2005
>>
Allure (CANADA) V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Side Air Bag
Side Air Bag

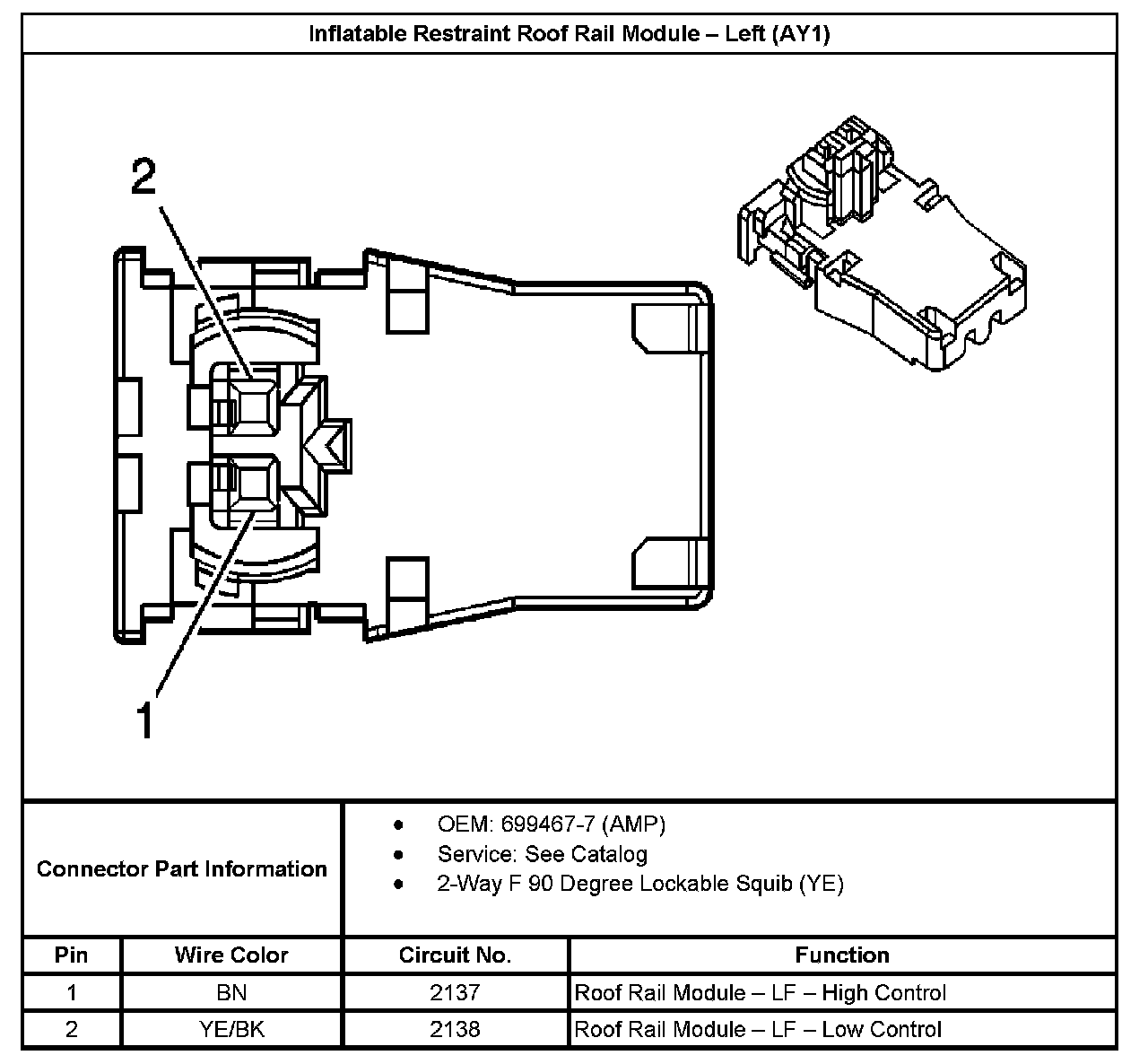

Inflatable Restraint Roof Rail Module - Left (With RPO Code AY1):

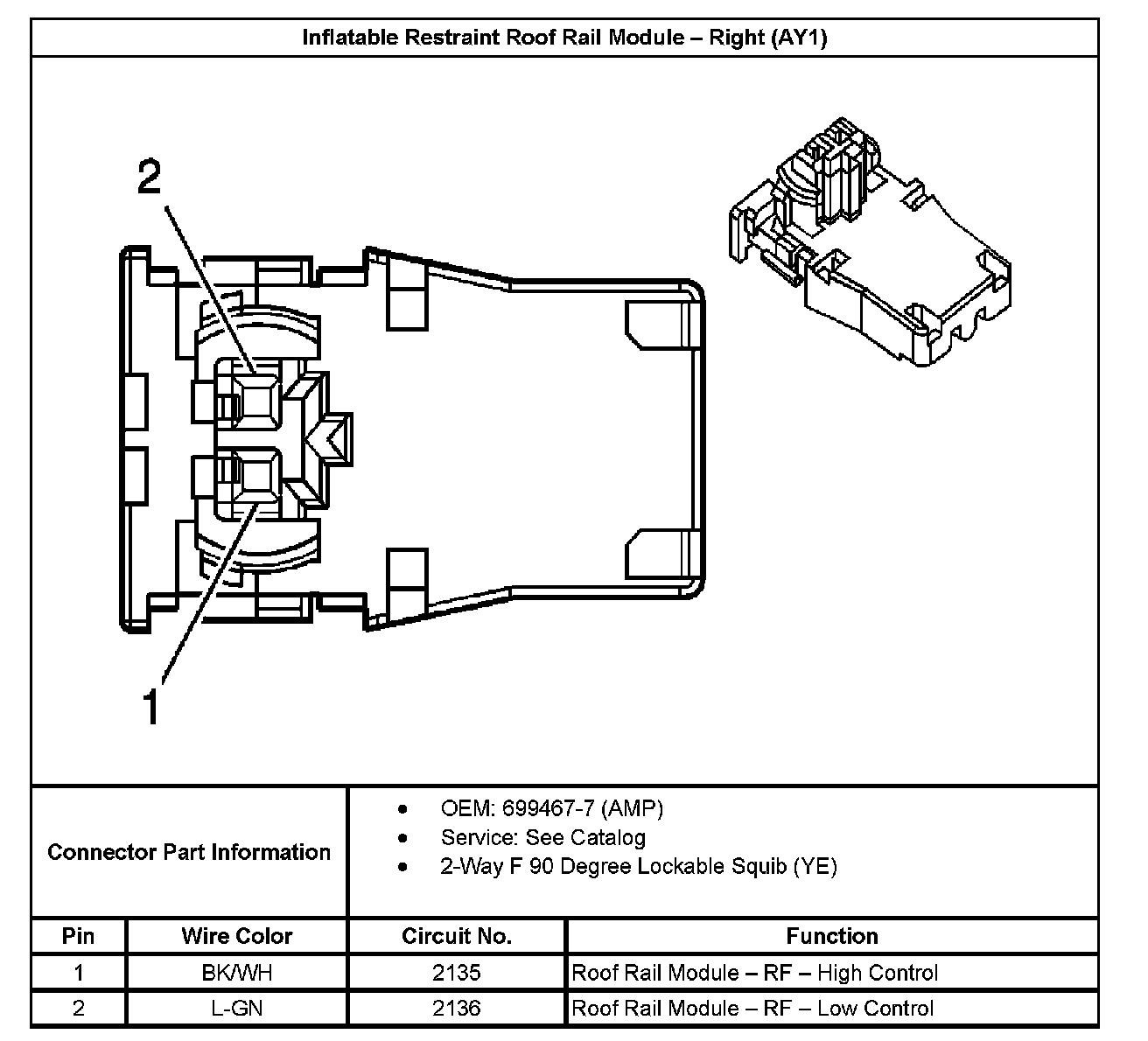

Inflatable Restraint Roof Rail Module - Right (With RPO Code AY1):
