Vehicle Speed Sensor
Vehicle Speed Sensor

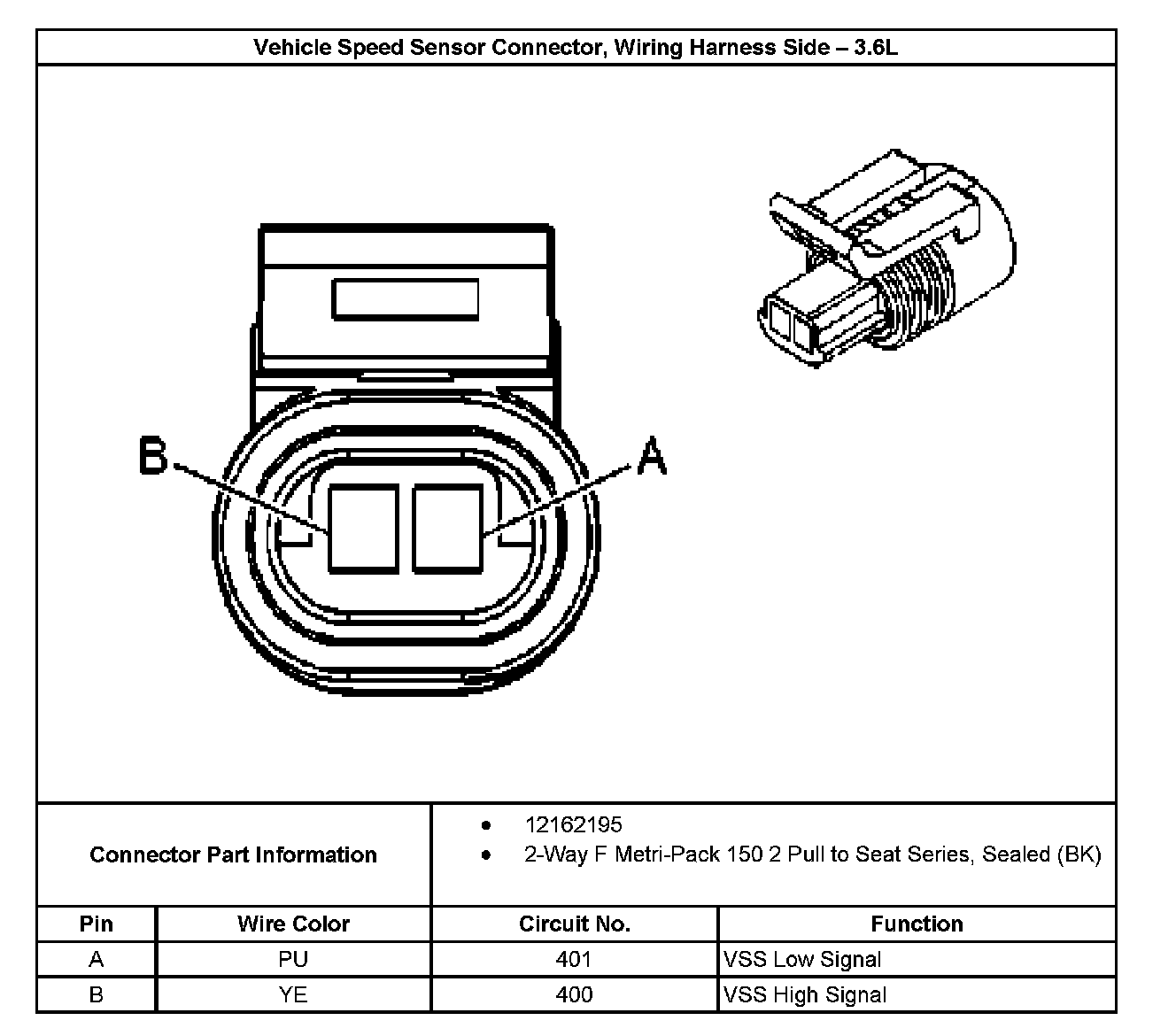

Vehicle Speed Sensor Connector End View, Wiring Harness Side - 3.6L:
