Antilock Brakes / Traction Control Systems

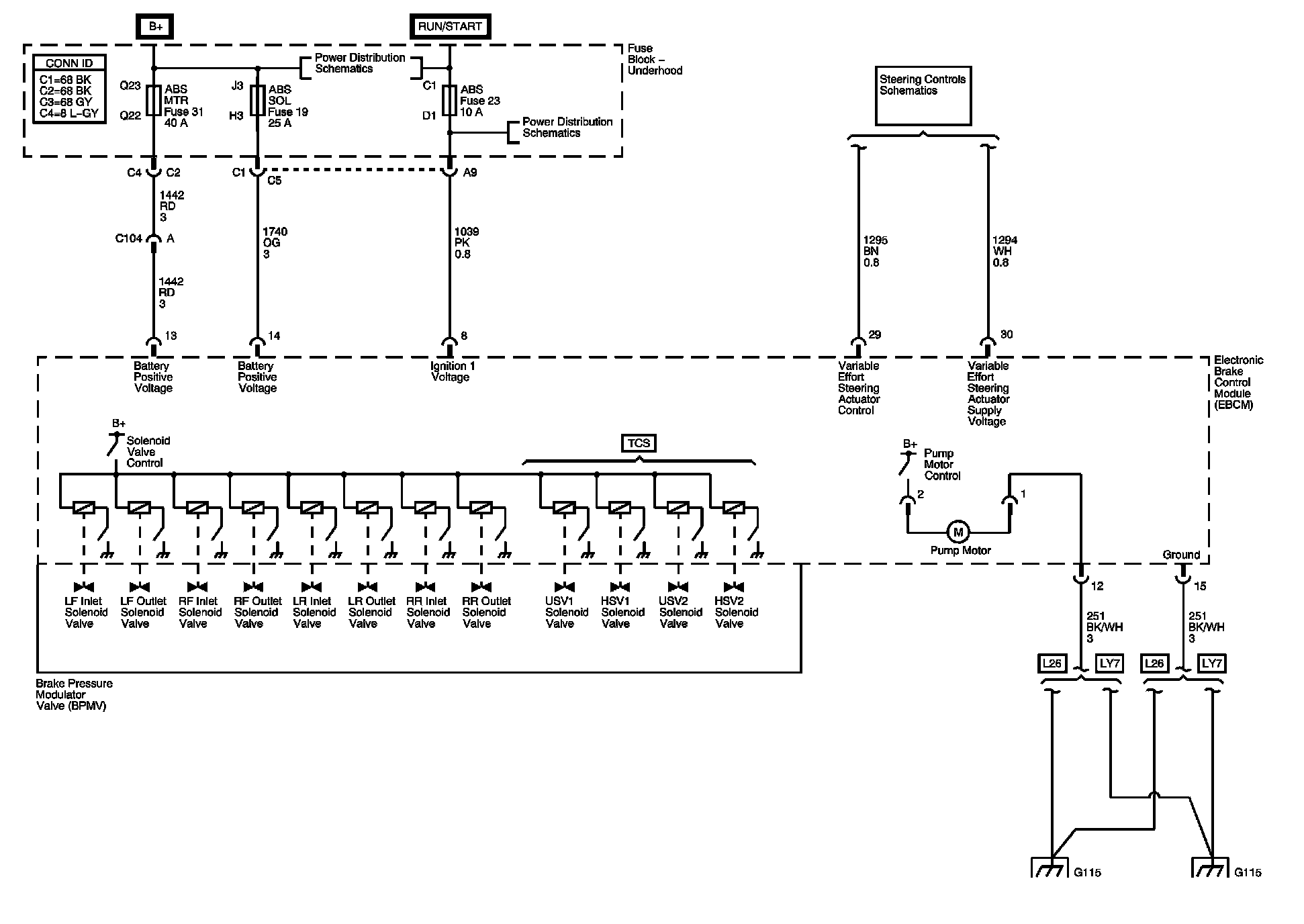

ABS Diagram:

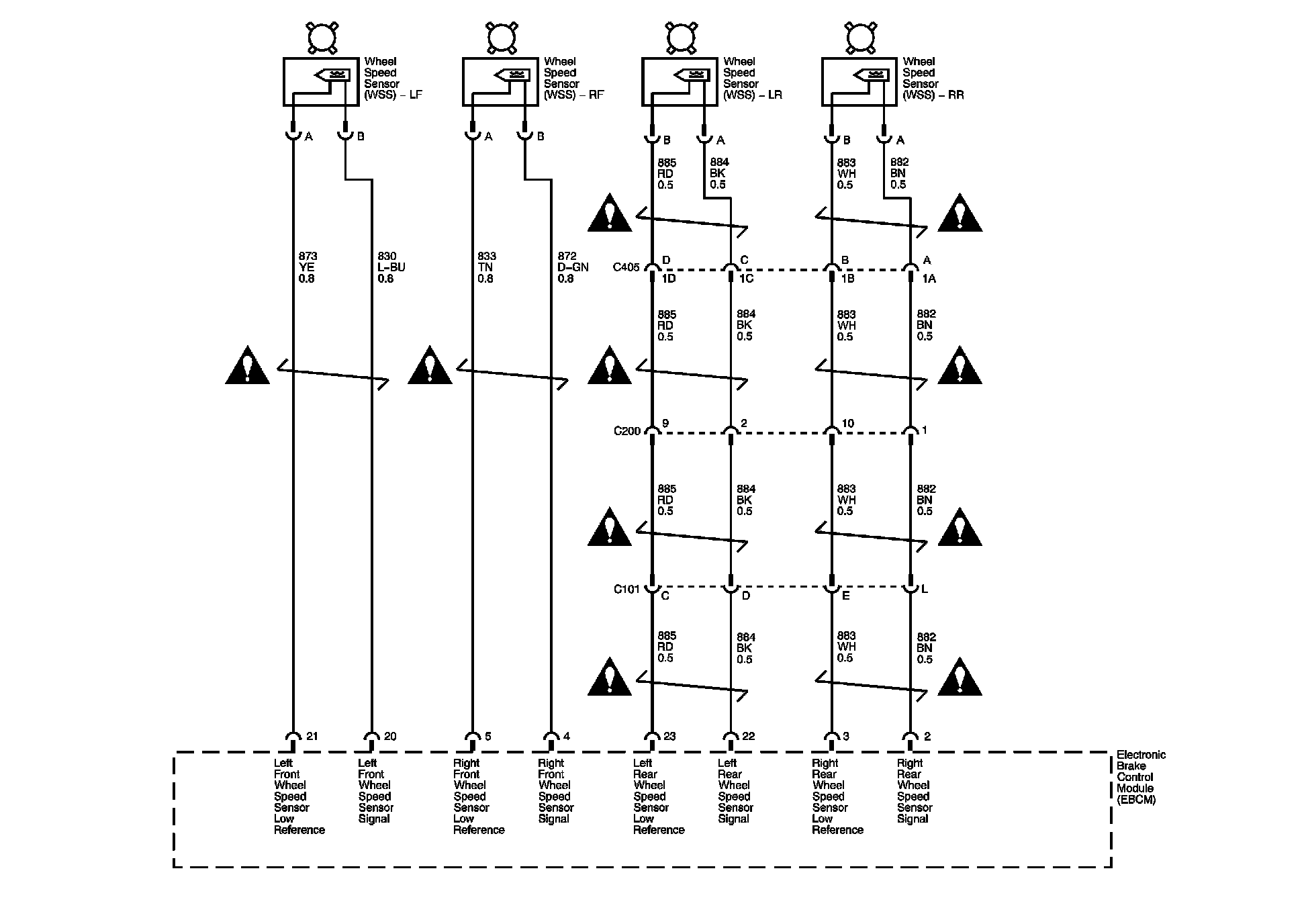

ABS Diagram:

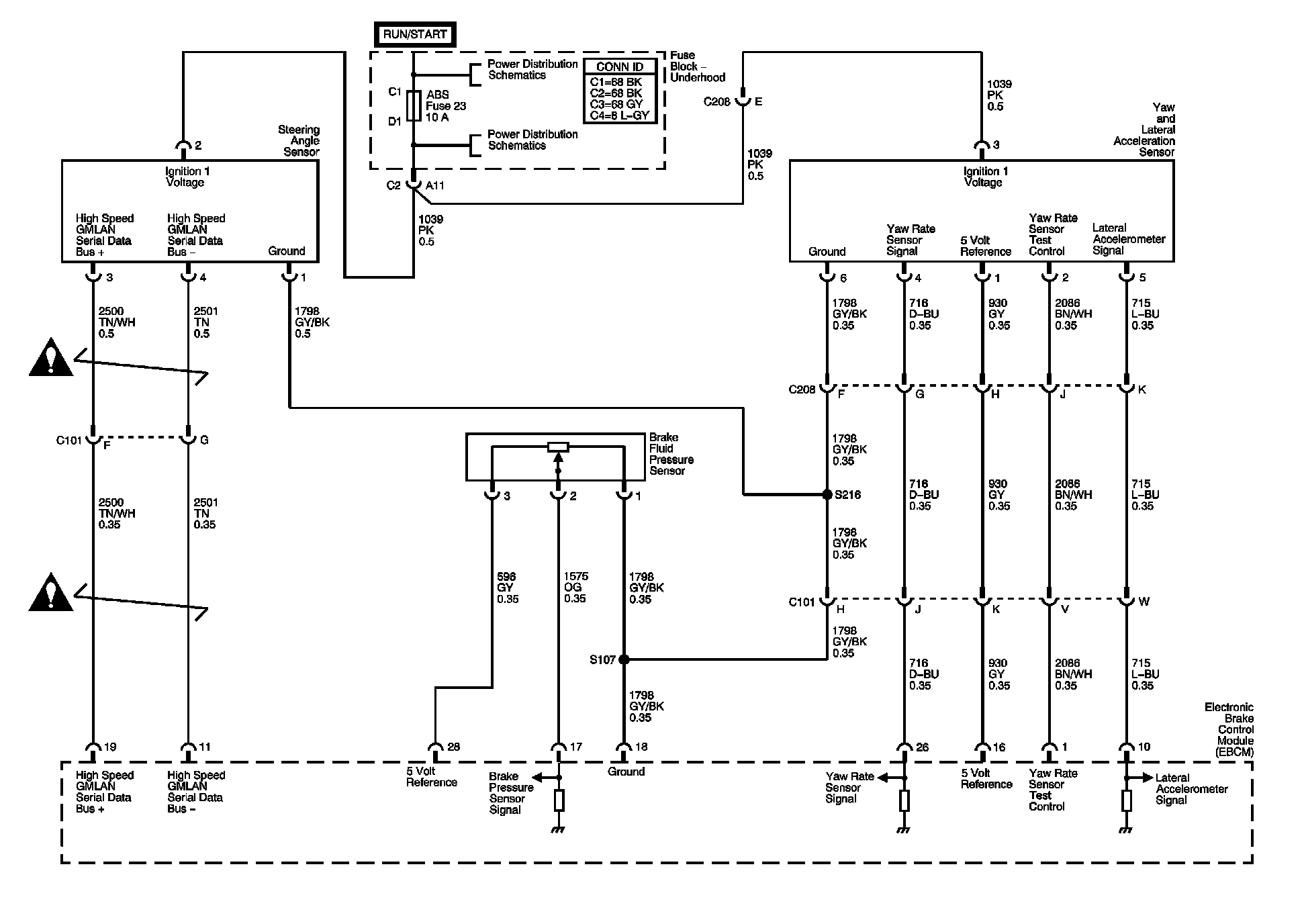

ABS Diagram:




ABS Diagram:





Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
