Sunroof / Moonroof

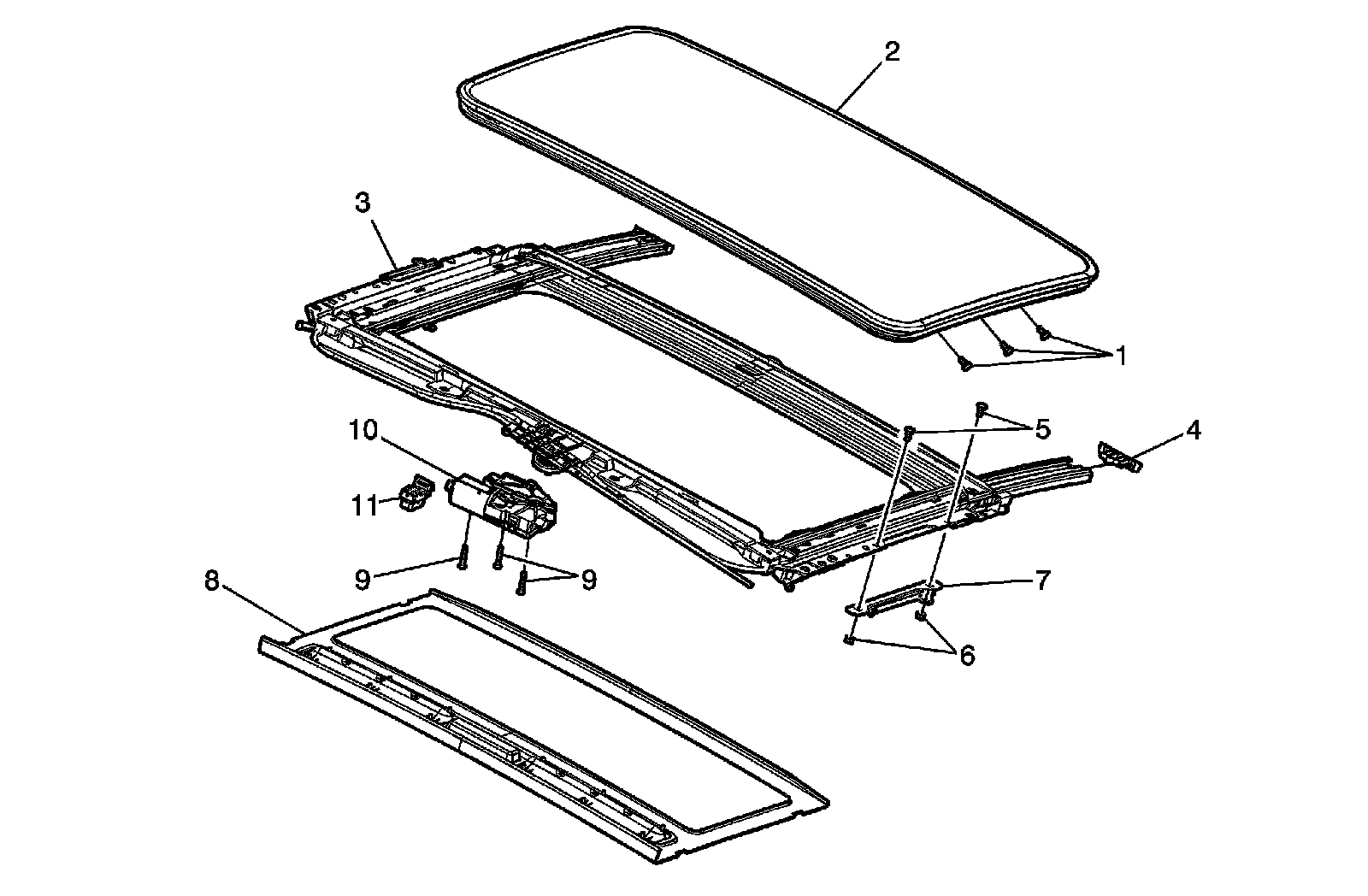

Power Sunroof Disassembled View




1 - Sunroof Window Bolt/Screw
2 - Sunroof Window Panel
3 - Sunroof Module Assembly
4 - Sunroof Sunshade Stop
5 - Sunroof Module Assembly Bolt
6 - Sunroof Module Assembly Nut
7 - Sunroof Module Assembly Bracket
8 - Sunroof Shade
9 - Sunroof/Actuator/Motor Bolt/Screw
10 - Sunroof Motor
11 - Sunroof Switch
