Transmission Shift Position Indicator Lamp: Service and Repair

TRANS FLOOR SHIFT CONTROL INDICATOR LAMP REPLACEMENT

REMOVAL PROCEDURE




1. Remove the front floor console.

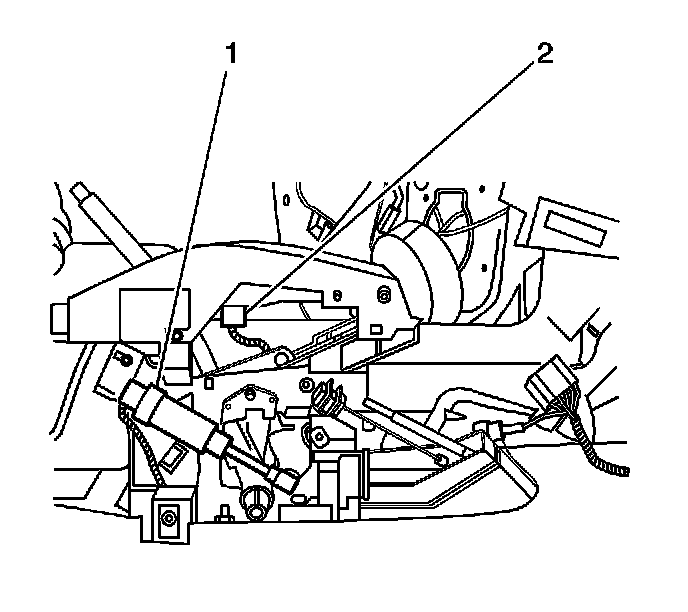

2. Rotate the floor shift control indicator lamp socket (2). Pull the socket from the trim bezel.
3. Remove the bulb from the socket.

INSTALLATION PROCEDURE




1. Install the bulb to the socket.
2. Position the floor shift control indicator lamp socket (2) into the trim bezel opening. Rotate the socket.
3. Install the front floor console.
