Service Procedure
Inspection Procedure1. Remove the insulator panel on left side.

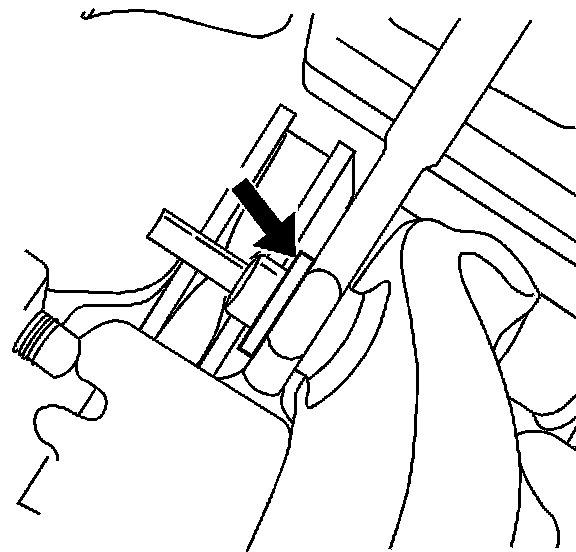

2. Inspect for the presence of the brake rod retaining clip and orientation of the brake pedal bushing.
^ If the clip is present and the bushing retaining flange is on the retaining clip side of the brake pedal pushrod (refer to illustration), only the retaining clip requires replacement.
- If the clip is present and the bushing retaining flange is on the side opposite of the retaining clip, the bushing between the brake pedal and the activation rod, the retaining clip, and the brake pedal position sensor must be replaced. Proceed to Brake Bushing Replacement Procedure.
- If the clip is missing, the brake pedal assembly, retaining clip, and the brake pedal position sensor must be replaced. Proceed to the Brake Pedal Assembly Replacement Procedure (very few vehicles will require brake pedal assembly replacement).
Brake Bushing Replacement Procedure
1. Unplug and remove the brake pedal position sensor.
2. Remove the brake pedal pushrod retaining clip from the brake pedal.
3. Remove the brake pedal pushrod and bushing from the brake pedal.
4. Coat the new bushing with white lithium grease (P/N 12345996) before installation.
5. Install a new bushing into the brake pedal pushrod from the outboard side.
Important:
The bushing retainer flange should be on the retaining clip side of the brake pedal pushrod.
6. Install the brake pedal pushrod and bushing to the brake pedal.
7. Install a new brake pedal pushrod retaining clip to the brake pedal.
8. Install a new brake pedal position sensor.
Tighten
Tighten the screw to 2.0 Nm (18 lb in).
9. Install the insulator panel.
10. Calibrate the new brake pedal position sensor by turning ON the ignition with the engine OFF.
11. Install a scan tool, select proper vehicle and options.
12. Navigate to the BCM menu.
13. Select Special Functions menu item.
14. Select the BPPS sensor calibration procedure and follow the directions displayed on the screen.
Brake Pedal Assembly Replacement Procedure
1. Unplug and remove the brake pedal position sensor.
2. Remove the brake pedal pushrod and bushing from the brake pedal.

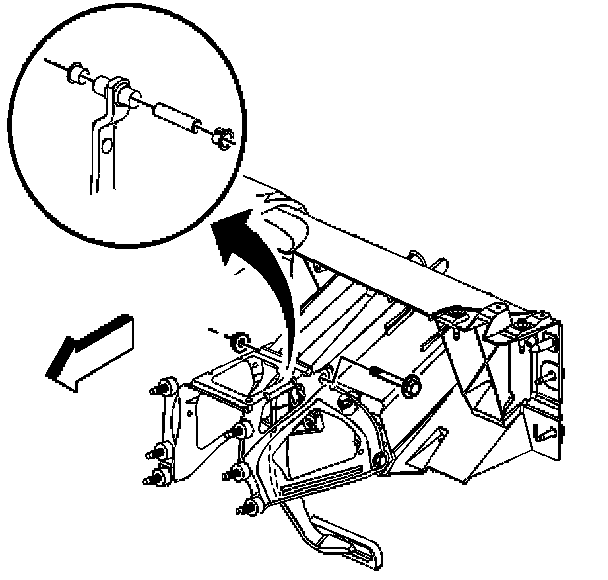

3. Remove the brake pedal nut and bolt.
Important:
It is not necessary to completely remove the bolt from the bracket. Leaving the bolt slightly engaged will assist in re-assembly.
4. Remove the brake pedal and bushings.
5. Install the new brake pedal and bushings.
6. Install the brake pedal nut and bolt.
Tighten
Tighten the brake pedal nut and bolt to 40 Nm (30 lb ft).
7. Coat the new bushing with white lithium grease (P/N 12345996) before installation.
8. Install a new bushing into the brake pedal pushrod from the outboard side.
Important:
The bushing retainer flange should be on the retaining clip side of the brake pedal pushrod.
9. Install the brake pedal pushrod and bushing to the brake pedal.
10. Install a new brake pedal pushrod retaining clip to the brake pedal.
11. Install a new brake pedal position sensor.
Tighten
Tighten the screw to 2.0 Nm (18 lb in).
12. Install the insulator panel.
13. Calibrate the new brake pedal position sensor by turning ON the ignition with the engine OFF.
14. Install a scan tool, select the proper vehicle and options.
15. Go into Computer Integrating Systems.
16. Go into BCM setup.
17. Go into module setup.
18. Select Recalibration Brake Pedal Position Sensor.
19. Follow the directions displayed on the screen.
