P0650

DTC P0650

CIRCUIT DESCRIPTION
The malfunction indicator lamp (MIL) is located on the instrument panel cluster (IPC). The MIL informs the driver that an emission system fault has occurred and that the engine control system requires service. The control module monitors the MIL control circuit for conditions that are incorrect for the commanded state of the MIL. For example, a failure condition exists if the control module detects low voltage when the MIL is commanded OFF, or high voltage when the MIL is commanded ON. If the control module detects an improper voltage or an over temperature condition on the MIL control circuit, DTC P0650 will set.

DTC DESCRIPTOR
This diagnostic procedure supports the following DTC:
- DTC P0650 Malfunction Indicator Lamp (MIL) Control Circuit

CONDITIONS FOR RUNNING THE DTC
The following conditions must be met:
- The ignition is in the crank or run position.
- System voltage is between 9-18 volts.

CONDITIONS FOR SETTING THE DTC
- The output state of the malfunction indicator lamp (MIL) driver detects an open or an over-temperature condition for at least 15 out of 20 samples. Each sample is 100 milliseconds. The powertrain control module (PCM) detects that the output state of the MIL driver is incorrect or excessive current is detected for more than 2 seconds.
- The output state of the MIL driver detects a short for at least 5 out of 10 samples. Each sample is 12.5 milliseconds. The PCM detects that the output state of the MIL driver is shorted for more than 1 second.
- This diagnostic runs continuous.

ACTION TAKEN WHEN THE DTC SETS
- If a shorted condition is detected, the control module will stop activating the MIL driver for the remainder of the trip.
- The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
- Clear the DTC with a scan tool.

TEST DESCRIPTION

Steps 1 - 11:

Steps 12 - 19:

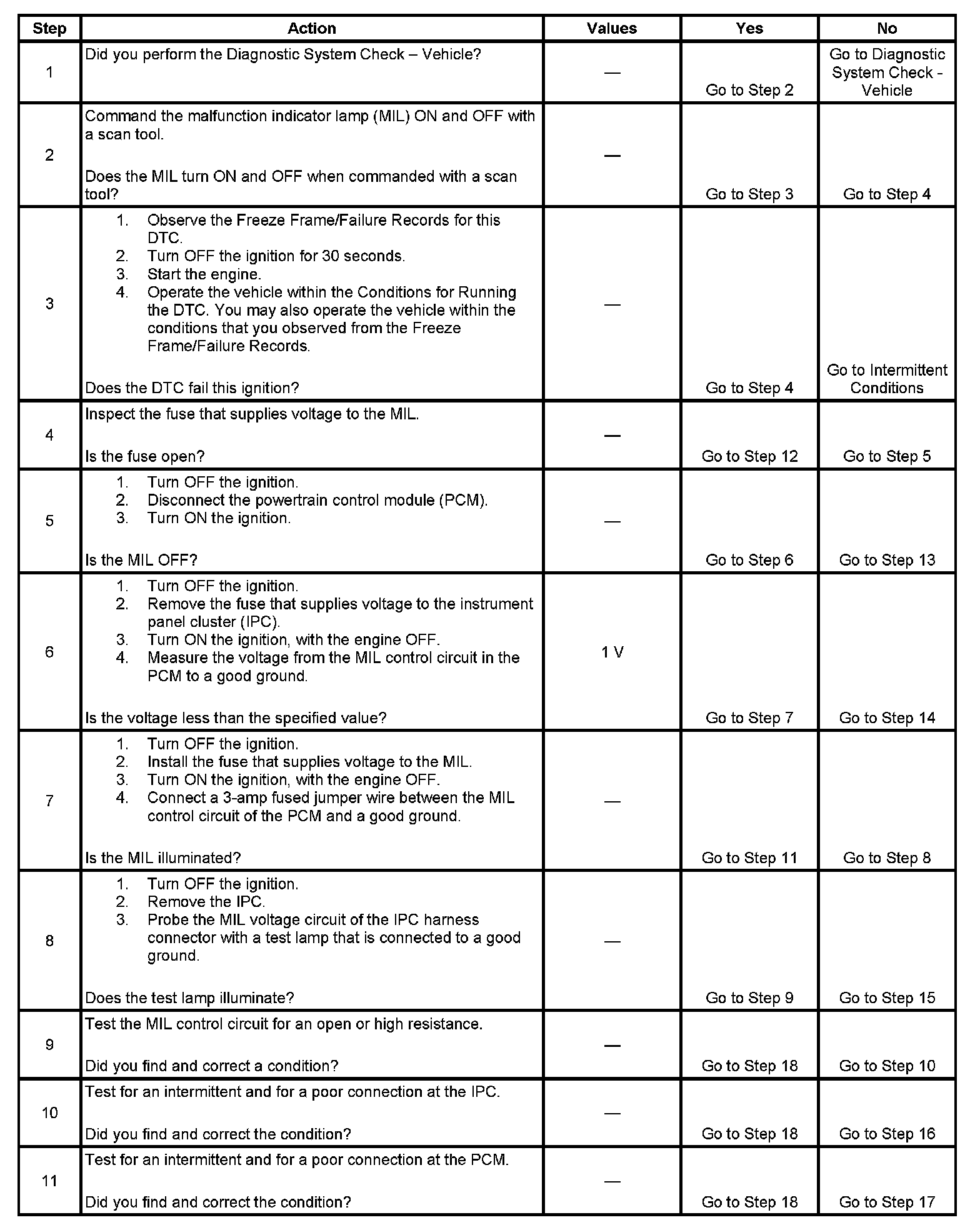

The numbers below refer to the step numbers on the diagnostic table.
5. This step tests for a short to ground in the MIL control circuit. With the PCM disconnected and the ignition ON, the MIL should be OFF.
6. This step tests for a short to voltage on the MIL control circuit. With the fuse removed, there should be no voltage on the MIL control circuit.
