Air Injection Pump Relay
Air Injection Pump Relay

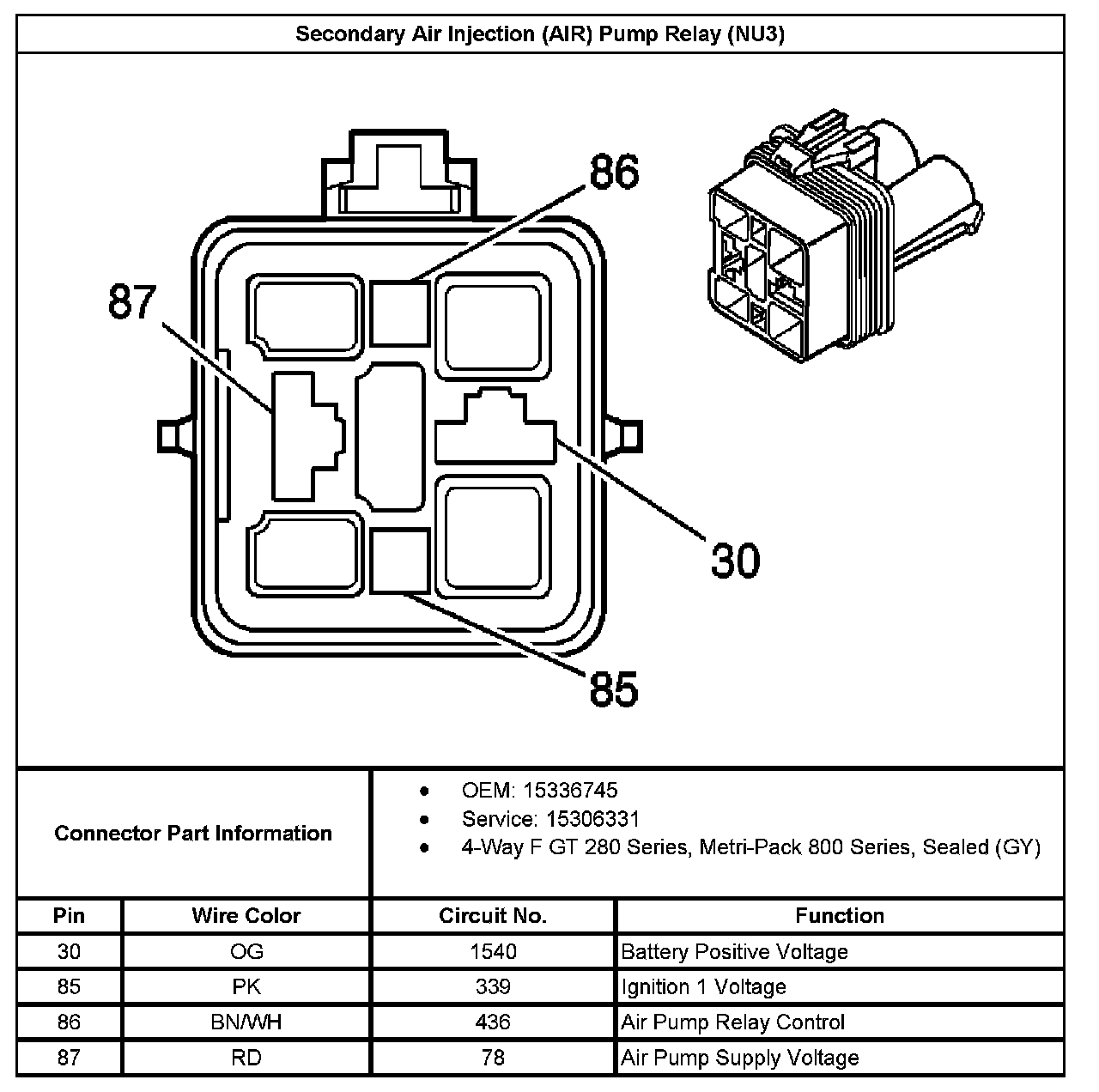

Secondary Air Injection (AIR) Pump Relay (With RPO Code NU3):
