Buick
>>
2005
>>
Allure (CANADA) V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Steering Angle Sensor
Steering Angle Sensor

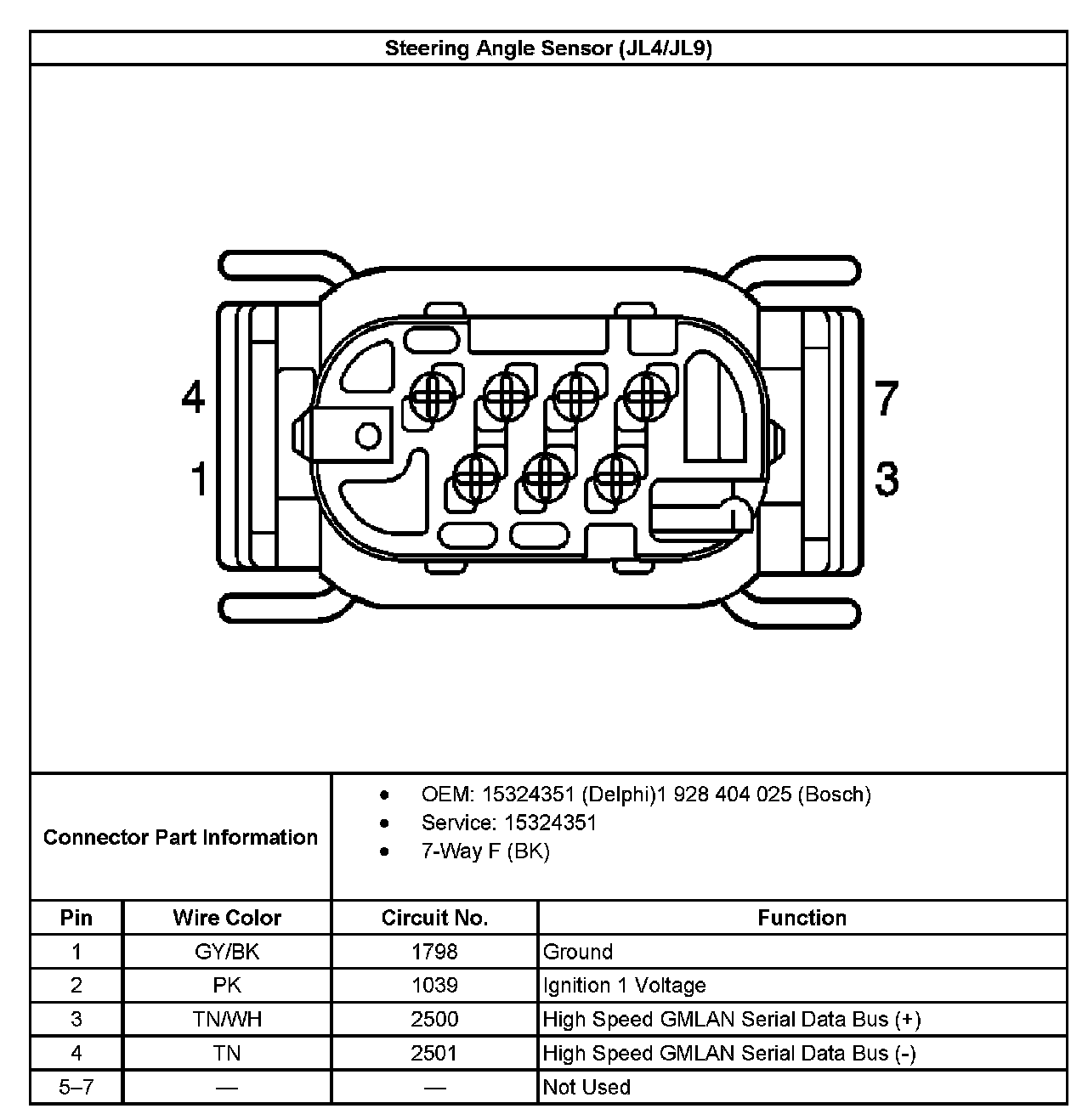

Steering Angle Sensor (JL4/JL9) Connector End View:
