Antilock Brakes / Traction Control Systems
>>
Yaw and Lateral Acceleration Sensor
Yaw and Lateral Acceleration Sensor

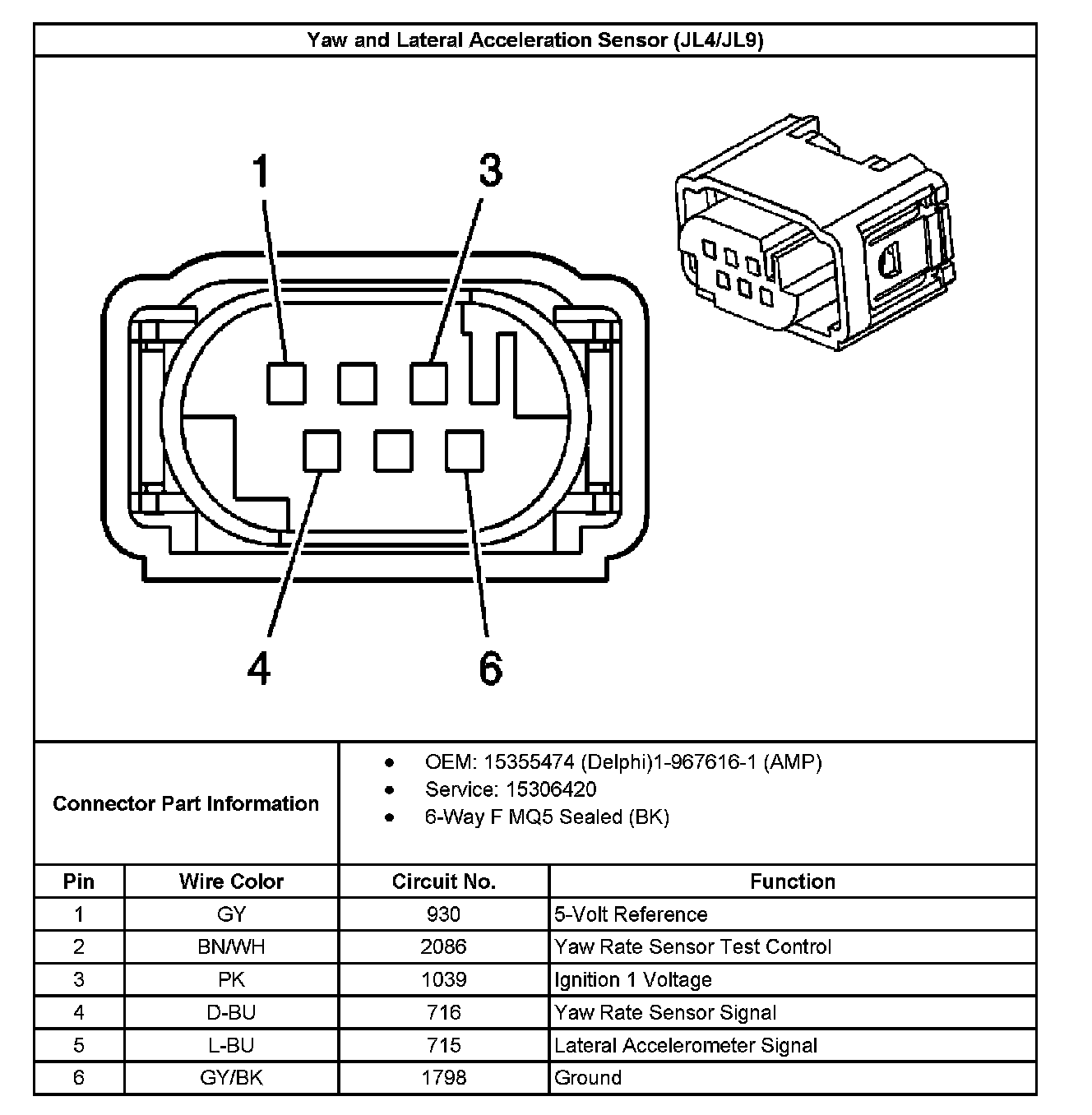

Yaw and Lateral Acceleration Sensor (JL4/JL9) Connector End View:
