C260
C260

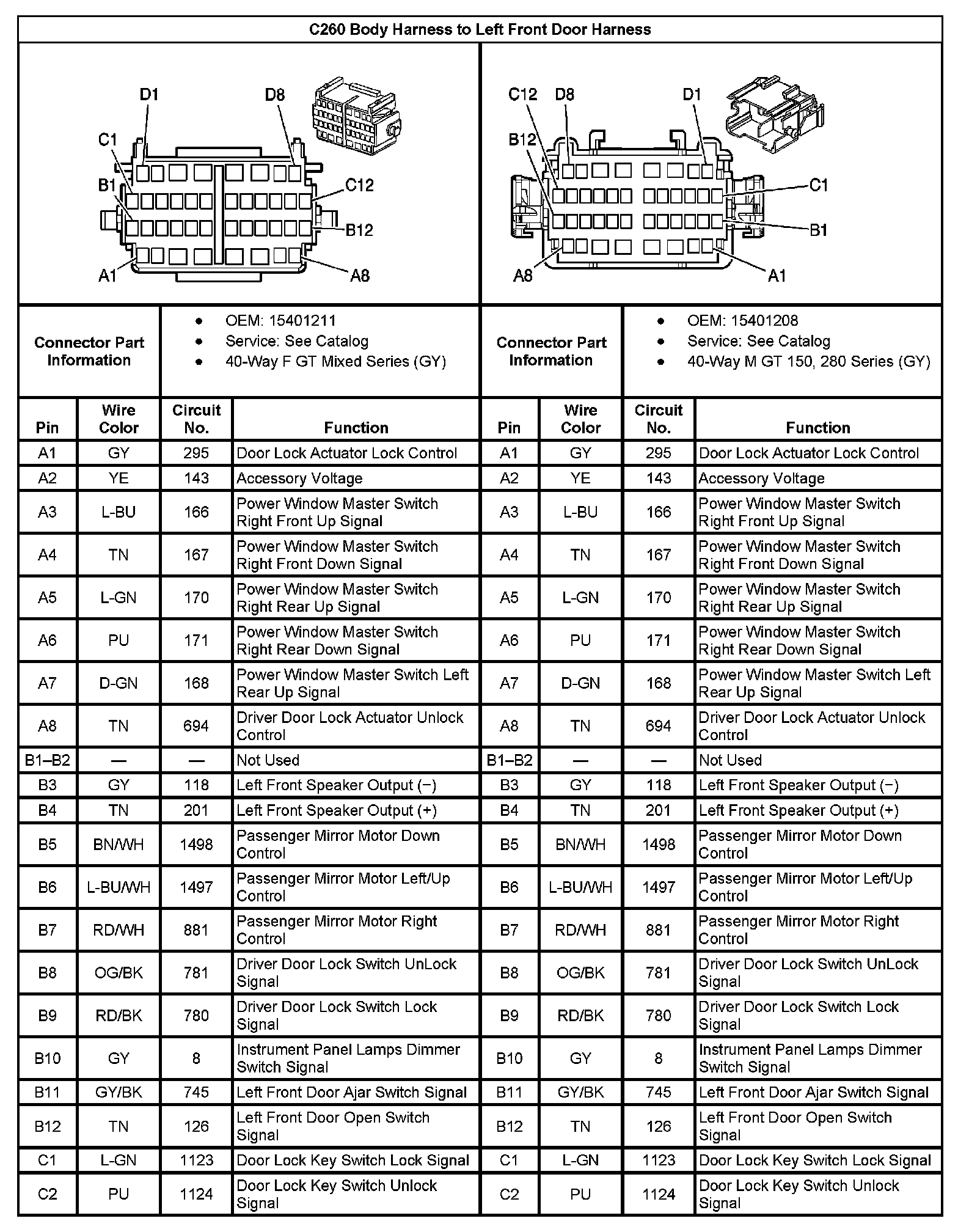

C260 Body Harness To Left Front Door Harness Part 1:
C260 Body Harness To Left Front Door Harness Part 2:
