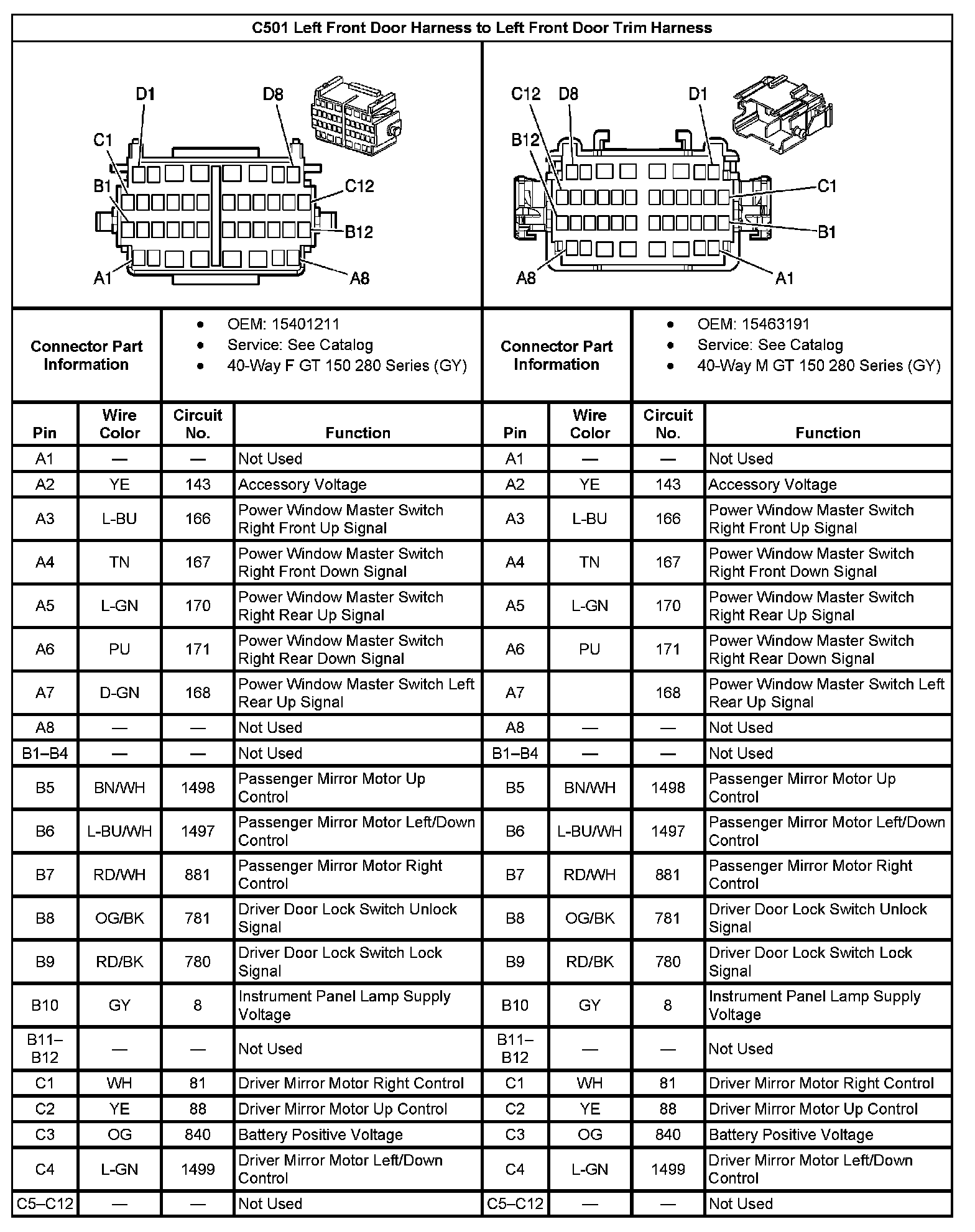

C501 Left Front Door Harness To Left Front Door Trim Harness Part 1:
C501 Left Front Door Harness To Left Front Door Trim Harness Part 2:
