Tail Lamp - Connector
Tail Lamp - Connector

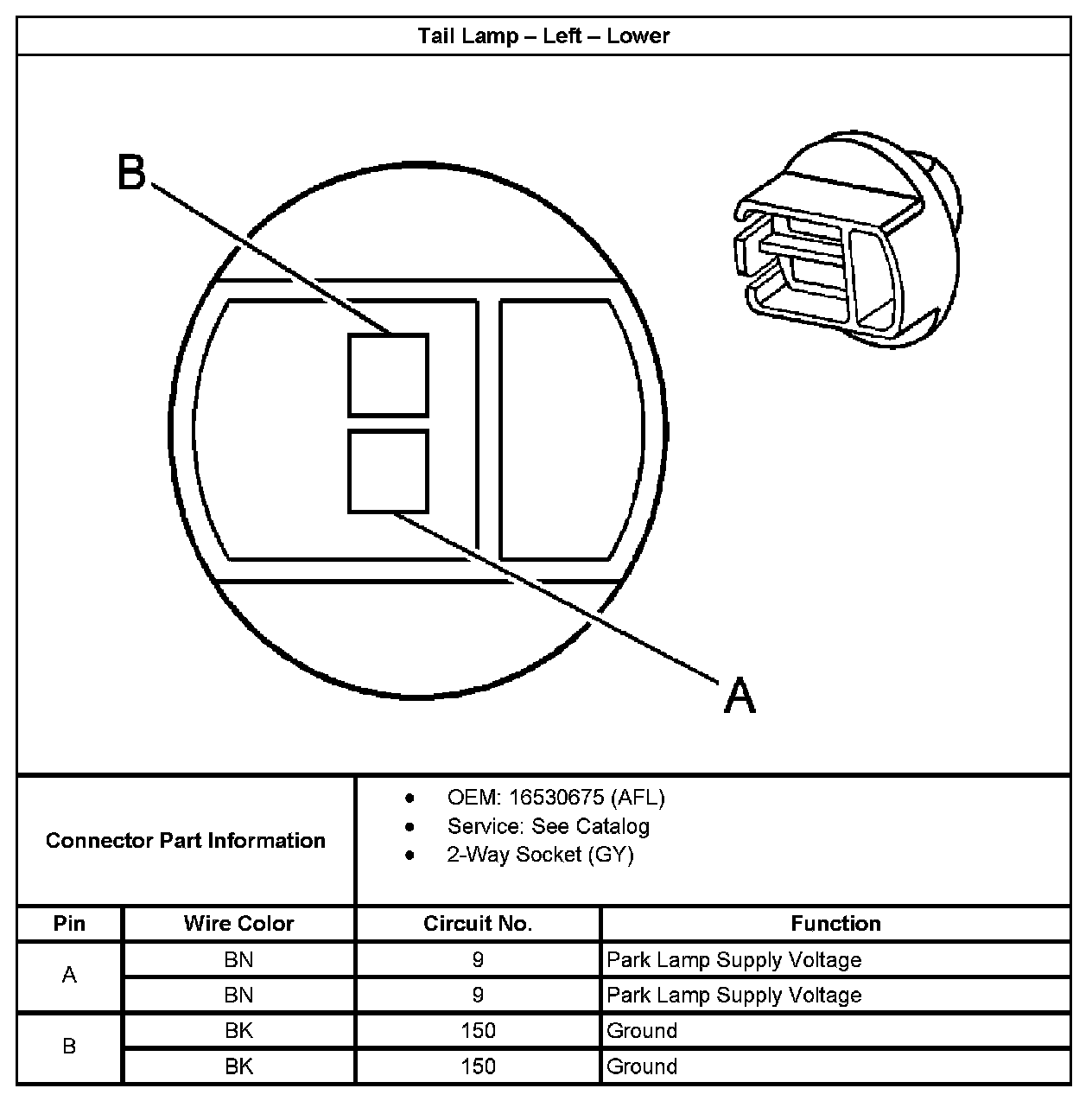

Tail Lamp - Left - Lower:
Tail Lamp - Left - Upper:

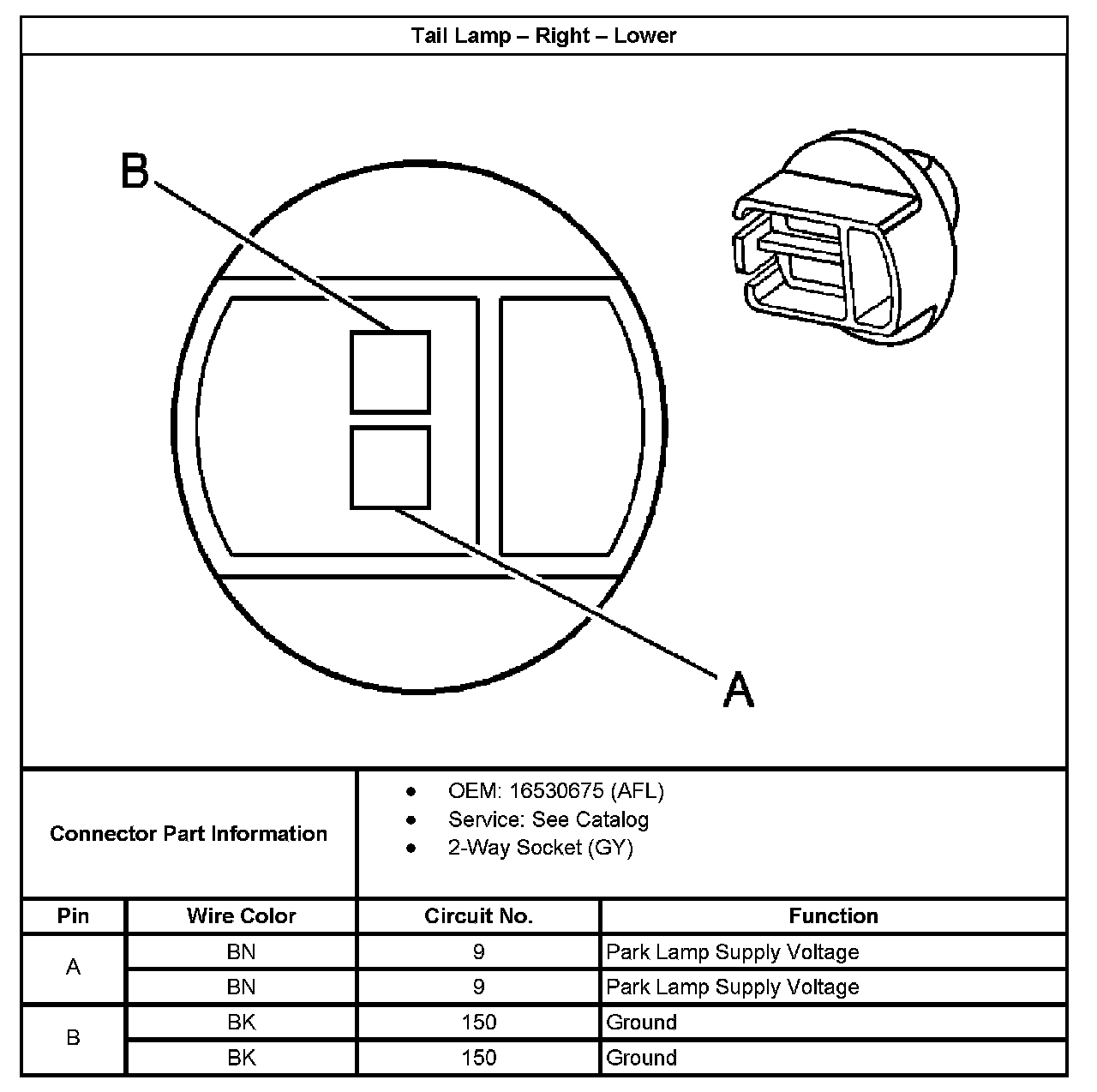

Tail Lamp - Right - Lower:
Tail Lamp - Right - Upper:
