Home
>>
Buick
>>
2005
>>
Allure (CANADA) V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
>>
Transmission Internal Mode Switch
Transmission Internal Mode Switch

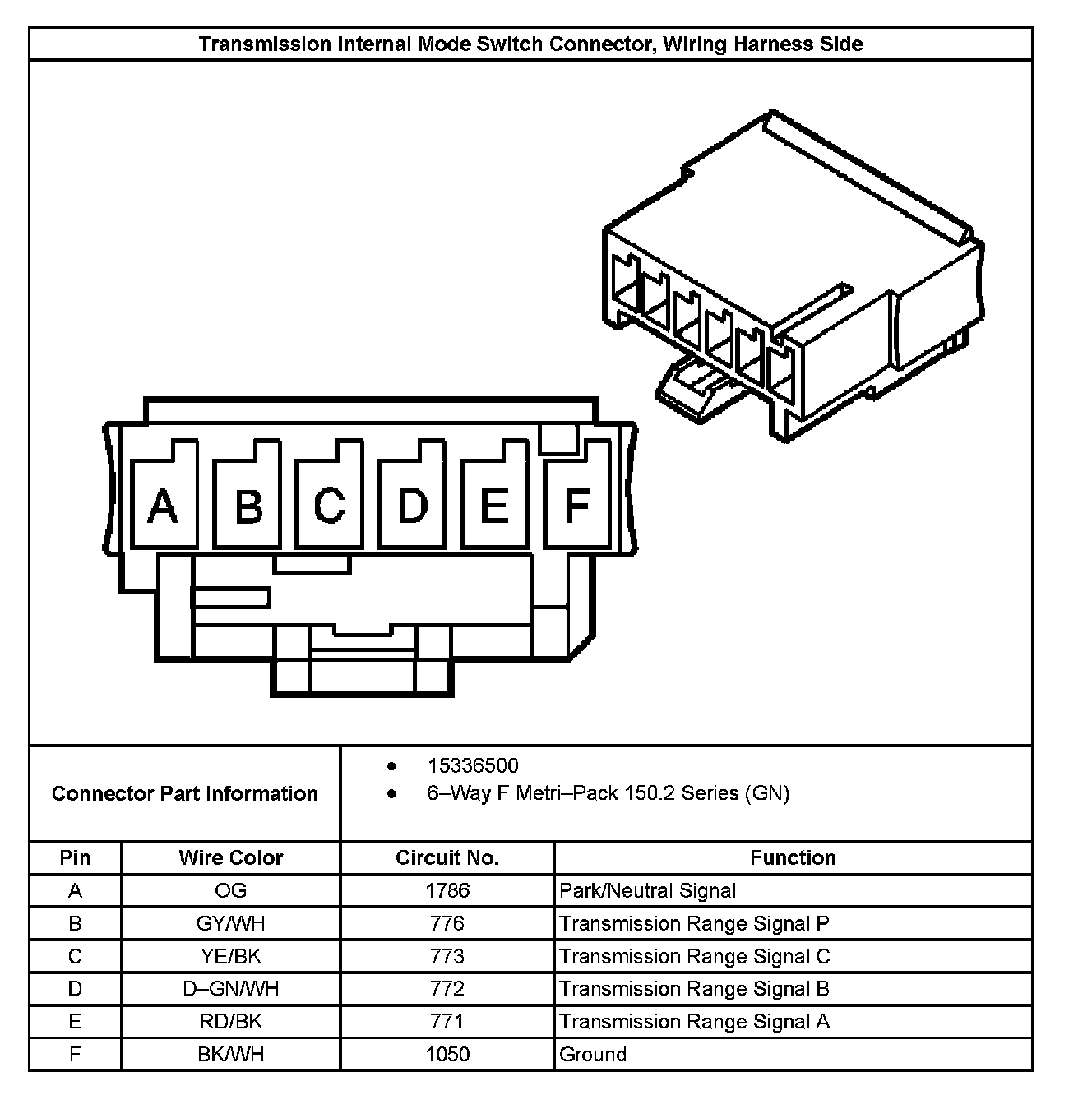

Transmission Internal Mode Switch Connector End View, Wiring Harness Side:
